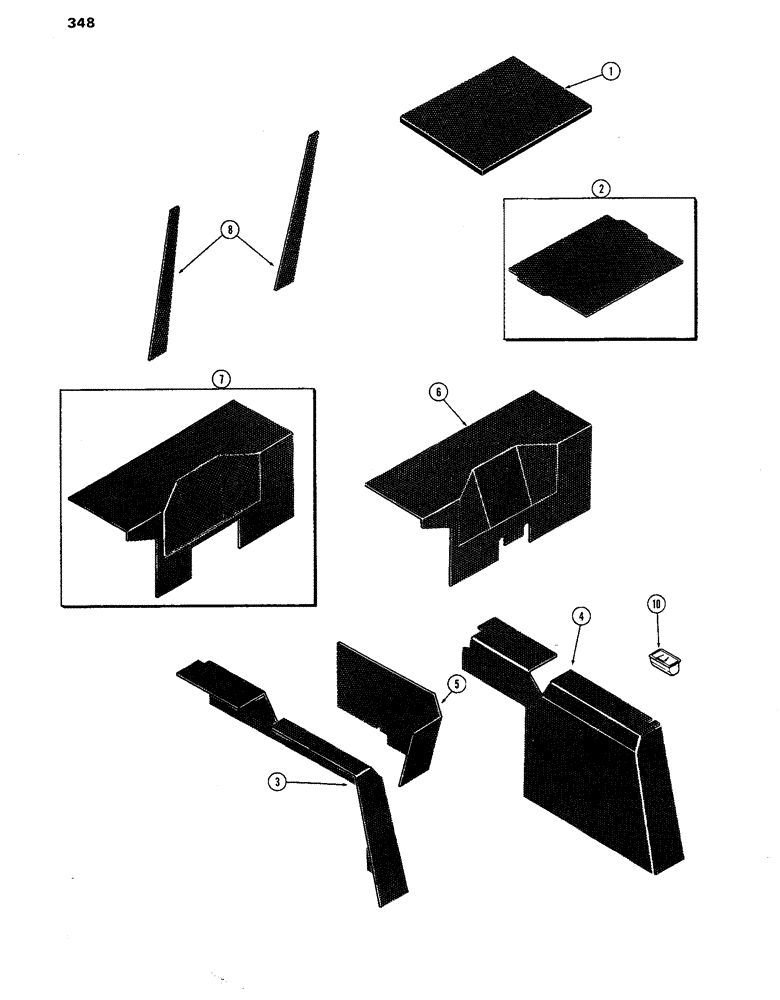

Запчасти Case IH 770 (348) - CAB, ACOUSTICAL COVERS (09) - CHASSIS/ATTACHMENTS

1

F63416

COVER

- headliner, Start Serial: 8693001

1шт.

Attach with adhesive 345-22

1шт.

2

F63326

PROTECTIVE COVER

COVER - headliner, Serial Range: -8693001

1шт.

Attach with adhesive 345-22

1шт.

3

F63296

PROTECTIVE COVER

COVER - fender panel, R.H.

1шт.

Attach with adhesive 345-22

1шт.

4

F63295

COVER

- fender panel, L.H.

1шт.

Attach with adhesive 345-22

1шт.

5

A61141

PROTECTIVE COVER

COVER - console

1шт.

Attach with adhesive 345-22

1шт.

6

A65426

PROTECTIVE COVER

COVER - fuel tank (Replaced A61142)

1шт.

Attach with adhesive 345-22

1шт.

7

A61142

COVER

- fuel tank (Order A65426)

1шт.

Attach with adhesive 345-22

1шт.

8

F63195

COVER

- corner filler

2шт.

Attach with adhesive 345-22

1шт.

10

F63395

TRAY

ASH TRAY

1шт.

Cut hole in L.H. fender covers and insert ash tray.

1шт.
