Запчасти Case IH 770 (344) - CAB, INSULATION, PLATFORM (09) - CHASSIS/ATTACHMENTS

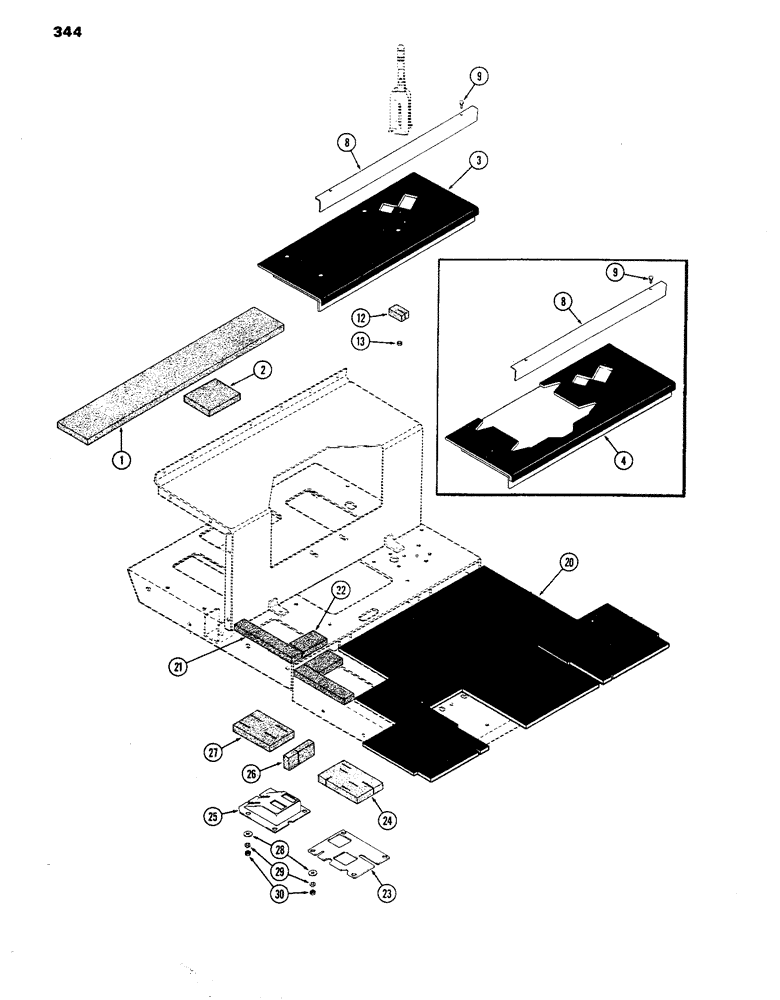

Схема запчастей Case IH 770 - (344) - CAB, INSULATION, PLATFORM (09) - CHASSIS/ATTACHMENTS
9
25
3
23
8
24
22
4
20
26
30
29
13
8
9
21
2
27
1
12
28

Артикул

Название

Примечание

Количество

1

A61699

SEAL

- fuel tank sealing

1шт.

Attach with adhesive 345-22

1шт.

2

A62594

FOAM

- fuel tank, top groove

1шт.

Attach with adhesive 345-22

1шт.

3

A64991

MAT

- floor, rear, Start Serial: 8693001

1шт.

Attach with adhesive 345-22

1шт.

4

A60821

MAT - floor, rear, Serial Range: -8693001

1шт.

Attach with adhesive 345-22

1шт.

8

A62461

FLOOR

ANGLE - floor mat retaining

1шт.

9

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW - 1/4 x 3/4" sltd. self-drill & tap

2шт.

12

A60819

FOAM

- hand brake sealing

1шт.

13

A60818

GROMMET

- hand brake cable

1шт.

20

A60820

MAT

- floor, front

1шт.

Attach with adhesive 345-22

1шт.

21

A60814

FOAM

- sealing, console bottom

2шт.

Attach with adhesive 345-22

1шт.

22

A60815

FOAM

- sealing, console bottom

2шт.

Attach with adhesive 345-22

1шт.

23

A60810

COVER ASSY. - console front, Includes: Ref. 24

1шт.

24

A60812

FOAM

- sealing, cover

1шт.

Attach with adhesive 345-22

1шт.

25

A61088

COVER ASSY. - console, rear, Includes: Ref. 26 and 27

1шт.

26

A60807

FOAM

- sealing, cover front

1шт.

Attach with adhesive 345-22

1шт.

27

A61090

FOAM

- sealing, cover top

1шт.

Attach with adhesive 345-22

1шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

8шт.

Выбрано товаров: 29
