Запчасти Case IH 770 (338) - CAB, PLATFORM (09) - CHASSIS/ATTACHMENTS

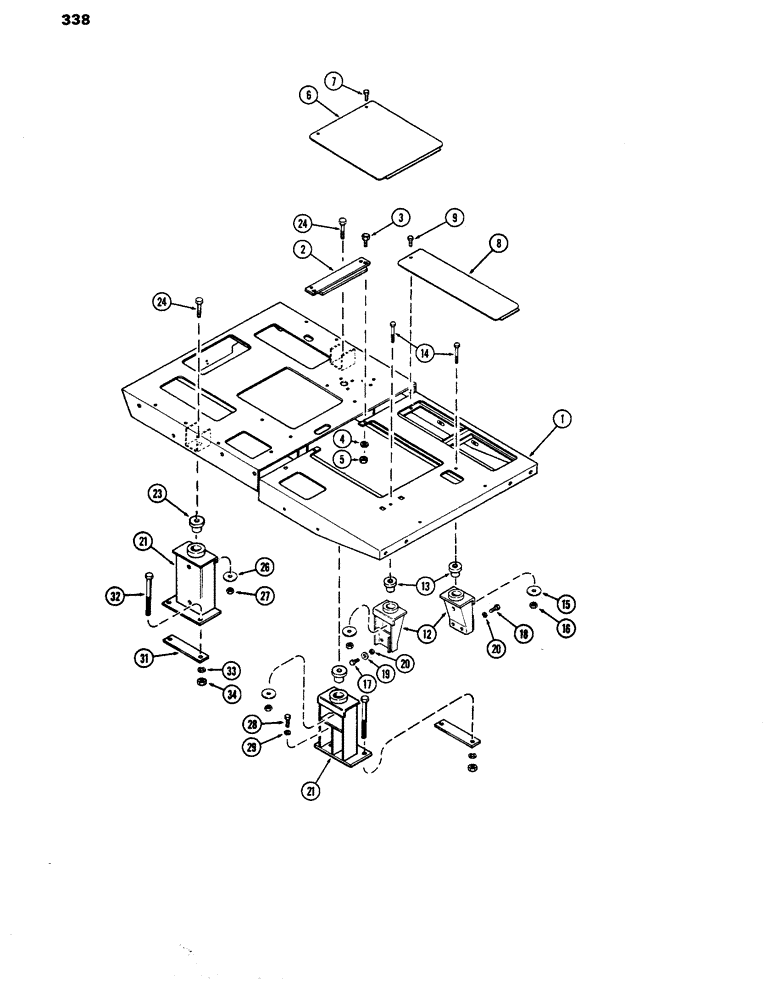

Схема запчастей Case IH 770 - (338) - CAB, PLATFORM (09) - CHASSIS/ATTACHMENTS
2
6
16
13
4
34
7
19
23
31
20
17
5
33
8
28
24
18
14
27
24
21
32
3
15
12
20
1
9
29
21
26

Артикул

Название

Примечание

Количество

1

A62691

PLATFORM ASSY.

DESK ASSY. - platform

1шт.

2

A60090

SUPPORT - cover

1шт.

3

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

- 5/16 x 3/4" N.C. hex.

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

6

A61175

COVER - transmission access

1шт.

7

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

SCREW - 5/16 x 1/2" N.C. hex. self-locking

2шт.

8

A59507

GUARD

COVER - battery access

1шт.

9

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

SCREW - 5/16 x 1/2" N.C. hex. self-locking

2шт.

12

A62652

MOUNTING PARTS

MOUNT - platform, front

2шт.

13

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

MOUNT - rubber, front

2шт.

14

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

15

D28899

WASHER

- 33/64 x 2 x 1/4"

2шт.

16

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, , Crown lock 1/2"-13, GB

2шт.

17

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

2шт.

18

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

19

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 1/8"

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

21

A64408

PLATFORM

MOUNT - platform rear (Replaces A62656)

2шт.

23

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

MOUNT - rubber, rear

2шт.

24

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8 x 3-1/2" N.C. hex.

2шт.

26

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

- 21/32 x 2-1/4 x 1/4"

4шт.

27

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

28

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

31

A60874

PLATE - platform rear mount

2шт.

32

15-8120

BOLT

- 1/2 x 7-1/2" N.C. hex.

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

Выбрано товаров: 29
