Запчасти Case IH 770 (334) - CAB, LOWER SHEET METAL (09) - CHASSIS/ATTACHMENTS

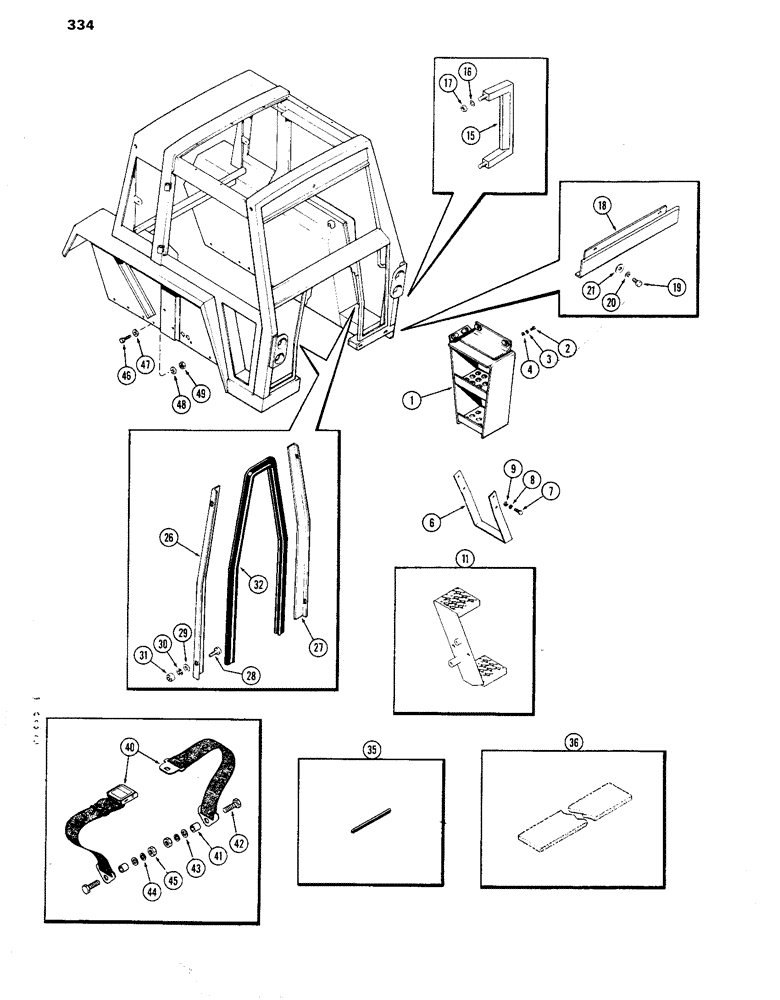

Схема запчастей Case IH 770 - (334) - CAB, LOWER SHEET METAL (09) - CHASSIS/ATTACHMENTS
45
3
46
35
21
27
6
15
19
20
8
11
48
7
18
4
36
31
1
26
47
43
29
49
40
9
44
42
16
2
30
9
41
17
32
28

Артикул

Название

Примечание

Количество

1

A61143

STEP

ASSY. - cab mounting

1шт.

2

13-206

SCREW

BOLT - 3/8 x 3/4" N.C. hex.

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

4шт.

A64599

ATTACHMENT - step extension (Mach. Item), Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

STEP - extension (Order A64599)

1шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

A43094

CLUTCH

ATTACHMENT - step, servicing, Includes: Ref. 11

1шт.

11

A32659

STEP

- servicing

1шт.

15

A60530

HANDLE

- cab mounting

1шт.

16

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-770

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

18

F89641

PANEL

- battery access

1шт.

19

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

- 5/16 x 3/4" N.C. hex.

2шт.

20

192-45

LOCK WASHER

- lock, 5/16"

2шт.

21

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

2шт.

26

A61138

FILLER - dust shield, R.H.

1шт.

27

A61139

FILLER - dust shield, L.H.

1шт.

28

113-30

BOLT - 1/4 x 5/8" N.C. hex.

4шт.

29

195-127

WASHER - 1/4 x 9/16 x 3/64"

4шт.

30

192-44

LOCK WASHER

- lock, 1/4"

4шт.

31

129-517

NUT - 1/4" N.C. hex.

4шт.

32

A62885

SEAL

- dust shield (Replaces A61140) (attach w/adhesive 345-22)

1шт.

35

F63177

MOLDING - underhoses (6" long) (attach w/adhesive 345-22)

2шт.

36

F63365

FOAM - temperature barrier, rear (attach w/adhesive 345-22), Start Serial: 8693001

1шт.

36

F63219

FOAM

- temperature barrier, front (attach w/adhesive 345-22), Serial Range: -8693001

1шт.

40

A60906

BELT

SAFETY BELT

1шт.

41

A60907

BUSHING

SPACER - anchor seat bolt

2шт.

42

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

43

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

2шт.

44

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

45

425-117

NUT,7/16"-20, G5

- 7/16" N.C. hex.

2шт.

46

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex.

2шт.

46

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" N.C. hex.

4шт.

46

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- 3/8 x 1" N.C. hex.

14шт.

47

195-525

WASHER,3/8", SAE

- 3/8 x 1-1/8 x 1/16"

38шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

18шт.

Выбрано товаров: 40
