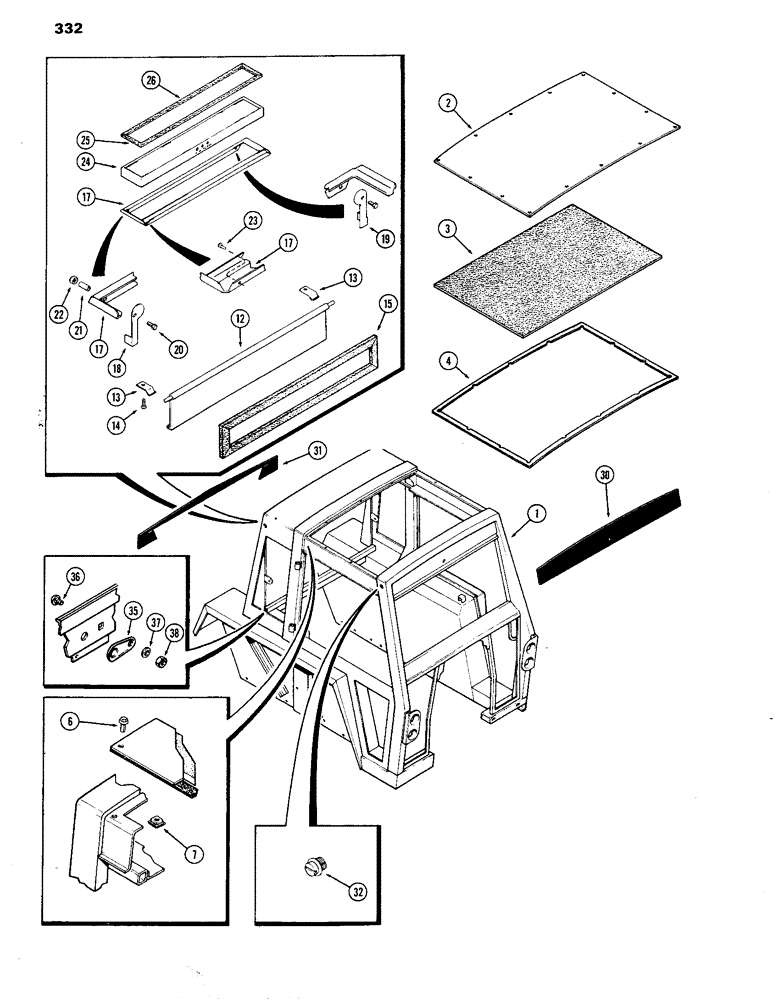

Запчасти Case IH 770 (332) - CAB, UPPER SHEET METAL (09) - CHASSIS/ATTACHMENTS

F89696

CAB - (w/o heater or air conditioner) (Mach. Item), Start Serial: 8693001

1шт.

A62790

CAB - (w/o heater or air conditioner) (Mach. Item), Serial Range: 8693001-8693001

1шт.

F89698

CAB - (w/air conditioner) (Mach. Item), Start Serial: 8693001

1шт.

A62791

CAB - (w/air conditioner) (Mach. Item), Serial Range: -8693001

1шт.

F89700

CAB - (w/heater) (Mach. Item), Start Serial: 8693001

1шт.

A62792

CAB - (w/heater) (Mach. Item), Serial Range: -8693001

1шт.

F89702

CAB - (w/air conditioner & heater) (Mach. Item), Start Serial: 8693001

1шт.

A62793

CAB - (w/air conditioner & heater) (Mach. Item), Serial Range: -8693001

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63196

ROOF

ASSY. - cab

1шт.

3

F63221

FOAM - roof temperature barrier

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - roof, 1/4 x 3/8" (Order A42676)

1шт.

A42676

SEAL

- roof (25' roll)

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. hex. washer hd., mach.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- 1/4" "J" Type Tinnerman speed

18шт.

12

F89643

VALVE

ASSY. - presure adjusting (rear mounted) (Order F89764)

1шт.

For front mounted valve see Fig. 350

1шт.

13

F63260

CLIP

- valve hinge

2шт.

14

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" phillips, self-tapping

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL - valve, 1/8 x 1/2 x 16-1/2" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

17

F89645

PLATE

ASSY. - filter inlet

1шт.

18

F63267

CAM - latch, R.H.

1шт.

19

F63266

LATCH

CAM - latch, L.H.

1шт.

20

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

21

T32262

SPACER - cam bolt

2шт.

22

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex., lock

2шт.

23

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" phillips, self-tapping

7шт.

24

NLS

NO LONGER SERVICED

- air intake

1шт.

25

F63331

SEAL - filter sides, 1/4 x 3/4 x 5-3/32"

2шт.

26

F63332

SEAL

SEAL - filter front & rear, 1/4 x 3/4 x 38-1/2"

2шт.

30

A42582

DECAL

- front panel

1шт.

31

321-1915

DECAL - rear crown

1шт.

32

353-550

PLUG,Slotted, 1/2"-13

Plastic, In lifting holes Slotted, 1/2"-13

4шт.

35

F12598

PLATE

COVER - utility

1шт.

36

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - 1/4 x 1/2" N.C. carriage

1шт.

37

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

38

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. Esna lock

1шт.
