Запчасти Case IH 770 (327A) - DECALS, STANDARD, 1ST USED TRACTOR S/N 8693001 (09) - CHASSIS/ATTACHMENTS

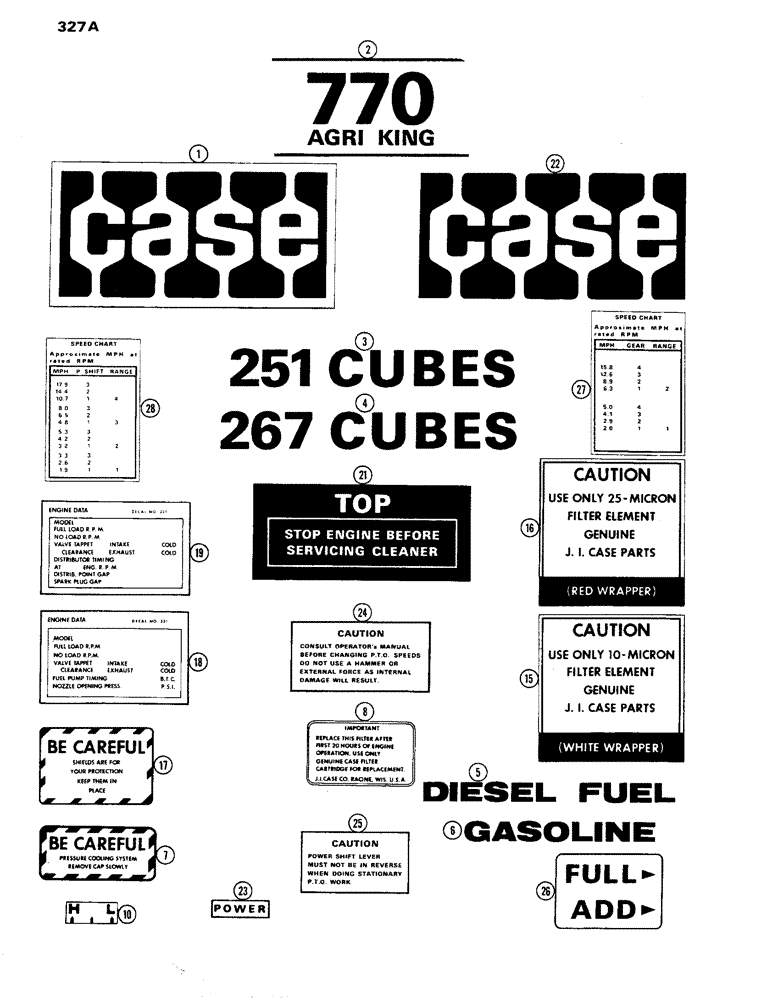

Схема запчастей Case IH 770 - (327A) - DECALS, STANDARD, 1ST USED TRACTOR S/N 8693001 (09) - CHASSIS/ATTACHMENTS
8
15
7
21
10
26
16
18
25
17
27
5
2
28
3
23
4
24
22
6
1
19

Артикул

Название

Примечание

Количество

A43105

KIT

- decal, Includes: Ref. 1 - 28

1шт.

1

321-2163

DECAL

- "Case" logo (front side sheets)

2шт.

2

321-1806

DECAL

- 770 Agri-King (R.H. & L.H. front side sheets)

2шт.

3

321-1807

DECAL

- 251 cubes (side panel)

2шт.

4

321-1808

DECAL

- 267 cubes (side panels)

2шт.

5

321-2168

X

DECAL - "Diesel Fuel"

1шт.

6

321-2169

DECAL

- "Gasoline"

1шт.

7

321-122

DECAL

- pressure cooling system

1шт.

8

321-367

DECAL

- engine oil filter change

1шт.

10

321-1335

DECAL

- seat adjustment indicator

1шт.

15

321-1762

DECAL

- oil filter warning (10 Micron)

1шт.

16

321-1763

DECAL

- oil filter warning (25 Micron)

1шт.

17

321-608

DECAL

- safety

1шт.

18

321-2316

DECAL

- engine data (Diesel)

1шт.

19

321-1828

DECAL

- engine data (Gasoline)

1шт.

21

321-1568

DECAL

- air cleaner

1шт.

22

321-1425

DECAL

- "Case" (on fuel tank)

1шт.

23

321-1623

DECAL

- "Power" (brake pedal)

1шт.

24

321-1650

DECAL

- "Caution", P.T.O.

1шт.

25

321-1651

DECAL

- "Caution", power shift

1шт.

26

321-1642

DECAL

- transmission, "Add-Full"

1шт.

27

321-1825

DECAL

- speed chart, 8 speed

1шт.

28

321-1826

DECAL

- speed chart, 12 speed

1шт.

Выбрано товаров: 23
