Запчасти Case IH 770 (323A) - AGRI KING SEAT, VINYL W/O CAB, 1ST USED TRACTOR S/N 8693001 (09) - CHASSIS/ATTACHMENTS

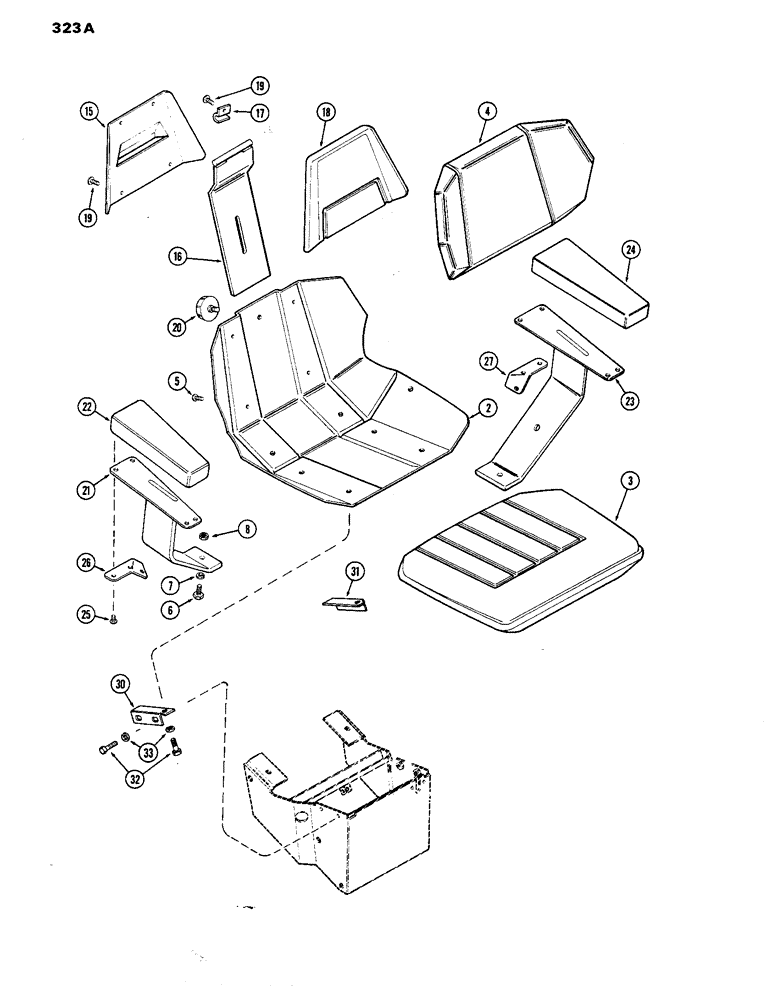

Схема запчастей Case IH 770 - (323A) - AGRI KING SEAT, VINYL W/O CAB, 1ST USED TRACTOR S/N 8693001 (09) - CHASSIS/ATTACHMENTS
17
19
24
21
33
32
16
15
2
4
6
31
20
30
23
18
8
22
3
7
26
19
5
25
27

Артикул

Название

Примечание

Количество

A64492

SEAT

ASSY. - complete w/arms & backrest (includes Ref. 2 thru 27)

1шт.

A64833

SEAT

ASSY. - w/o arms & backrest (incl. Ref. 2 thru 8)

1шт.

2

A60461

FRAME

ASSY. - seat

1шт.

3

A60462

CUSHION

ASSY. - seat bottom

1шт.

4

A64823

CUSHION

ASSY. - backrest

1шт.

5

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- #10-24 x 3/4" pan hd.

6шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

7

92-6

LOCK WASHER,3/8"

8шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

15

A60478

FRAME

- upper backrest

1шт.

16

A64825

PLATE

SPRING ASSY. - backrest

1шт.

17

A60479

CLIP

- upper backrest pivot

1шт.

18

A60472

CUSHION

- upper backrest

1шт.

19

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- #10 -24 x 1/2" pan hd.

6шт.

20

A60468

KNOB

ASSY. - adjusting, backrest

1шт.

21

A61092

SUPPORT

- R.H. armrest

1шт.

22

A61098

CUSHION

- R.H. armrest

1шт.

23

A61093

SUPPORT

- L.H. armrest

1шт.

24

A61099

CUSHION

- L.H. armrest

1шт.

25

187-534

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - #10 x 1/2" rd. hd. self-tapping

8шт.

26

A64828

BRACKET

SUPPORT - R.H., Serial Range: armrest-backrest

1шт.

27

A64829

BRACKET

SUPPORT - L.H., Serial Range: armrest-backrest

1шт.

30

A65140

BRACKET

- seat support, R.H.

1шт.

31

A65141

BRACKET

- seat support, L.H.

1шт.

32

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

Выбрано товаров: 26
