Запчасти Case IH 770 (321A) - SERIES 30 SEAT, 1ST USED TRACTOR S/N 8693001 (09) - CHASSIS/ATTACHMENTS

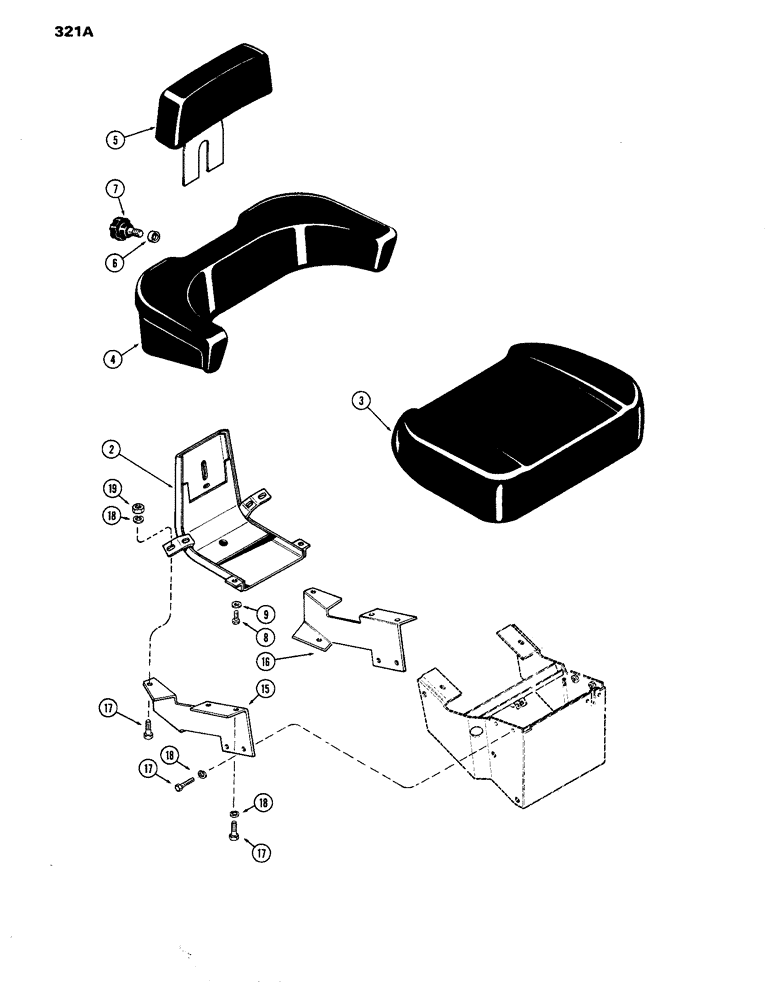

Схема запчастей Case IH 770 - (321A) - SERIES 30 SEAT, 1ST USED TRACTOR S/N 8693001 (09) - CHASSIS/ATTACHMENTS
5
9
8
18
19
17
3
6
16
17
4
17
15
18
7
2
18

Артикул

Название

Примечание

Количество

A65092

SEAT

ASSY. - Series "30", Includes: Ref. 2 - 9

1шт.

2

A57405

SUPPORT

- seat frame

1шт.

3

A65093

CUSHION

- seat

1шт.

4

A42497

BACKREST

- seat, lower

1шт.

5

A34283

CUSHION

BACKREST - seat, upper

1шт.

6

A40600

SPACER

- backrest adjusting

1шт.

7

A40972

KNOB

- backrest adjusting

1шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

9

195-103

WASHER,5/16"

- plain, 3/8 x 7/8 x 3/32"

4шт.

15

A65094

BRACKET

- seat support, R.H.

1шт.

16

A65095

BRACKET

- seat support, L.H.

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.

Выбрано товаров: 14
