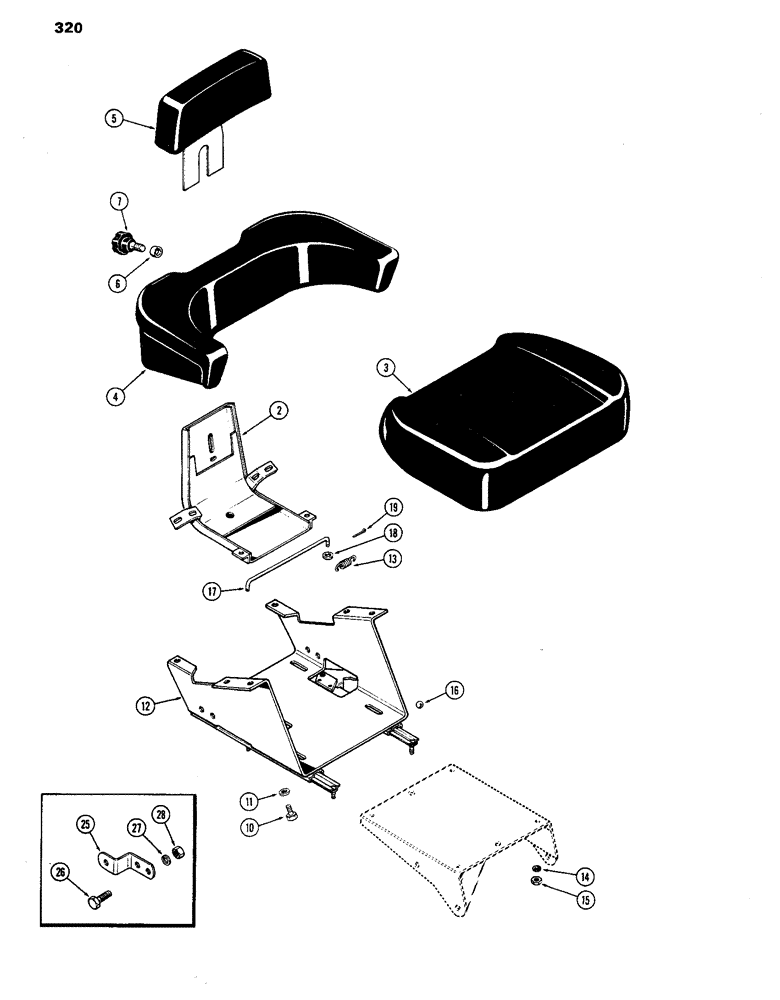

Запчасти Case IH 770 (320) - SERIES 30 SEAT, USED PRIOR TO TRACTOR S/N 8693001 (09) - CHASSIS/ATTACHMENTS

A61224

SEAT

ASSY. - Series "30", Includes: Ref. 2 - 7

1шт.

2

A57405

SUPPORT

- seat frame

1шт.

3

A33317

CUSHION

- seat

1шт.

4

A42497

BACKREST

- seat, lower

1шт.

5

A34283

CUSHION

BACKREST seat, upper

1шт.

6

A40600

SPACER

- backrest adjusting

1шт.

7

A40972

KNOB

- backrest adjusting

1шт.

10

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

11

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

10шт.

12

A61225

SUPPORT ASSY. - seat, Includes: Ref. 13

1шт.

13

A42299

SPRING

- adjuster return

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

4шт.

16

A59829

KNOB

- seat adjuster, L.H.

1шт.

Attach with adhesive 345-22

1шт.

17

A60898

ROD - seat lock

1шт.

18

95-3

WASHER,#12

- 1/4 x 9/16 x 3/64"

2шт.

19

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

25

A62177

BRACKET

- seat belt anchor

2шт.

26

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

27

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

28

129-104

NUT,7/16"-14, G5

4шт.
