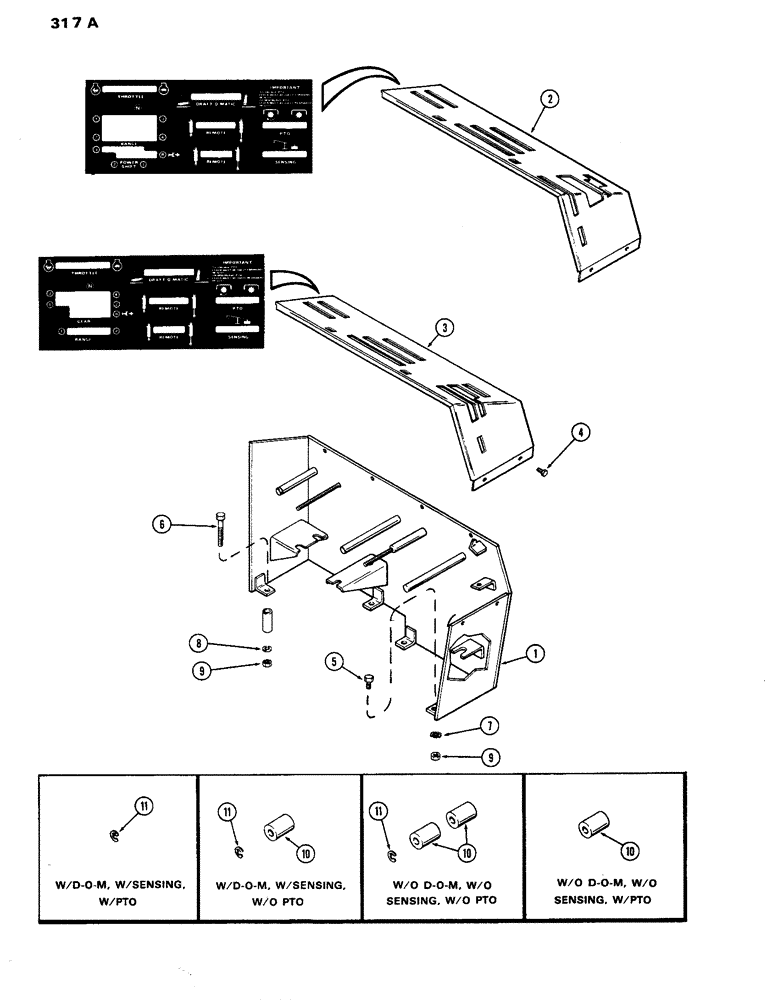

Запчасти Case IH 770 (317A) - CONTROL CONSOLE, 1ST USED TRACTOR S/N 8693001 (09) - CHASSIS/ATTACHMENTS

1

A64582

CONSOLE ASSY. - control

1шт.

2

A64558

COVER

- control console (Power Shift) (includes lettering)

1шт.

3

A64559

COVER

- control console (Mech. Shift) (includes lettering)

1шт.

4

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

5

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

6

13-646

BOLT,Hex, 3/8" - 16 x 2-7/8", Gr 5

Hex, 3/8"-16 x 2 7/8, G5

1шт.

7

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int.-ext.

3шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

10

A59994

SPACER

- D-O-M & P.T.O. studs (See Insets)

1шт.

11

A27785

CIRCLIP,#62, .480" Dia, E-Type

RING - retaining, , spacer retainer (see insets) #62, .480" Dia, E-Type

1шт.
