Запчасти Case IH 770 (312) - STEPS AND TOOL BOX (09) - CHASSIS/ATTACHMENTS

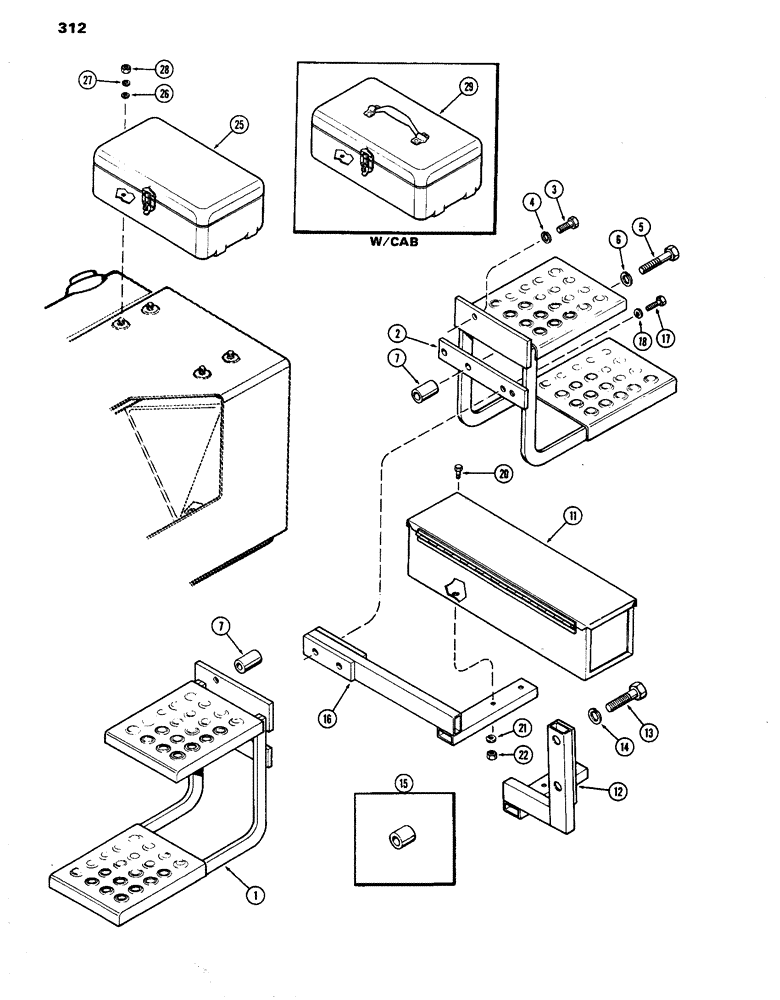

Схема запчастей Case IH 770 - (312) - STEPS AND TOOL BOX (09) - CHASSIS/ATTACHMENTS
22
3
4
26
16
25
12
2
5
11
28
14
17
1
15
21
7
6
7
29
18
20
13
27

Артикул

Название

Примечание

Количество

1

A59332

STEP ASSY. - R.H.

1шт.

2

A59333

STEP ASSY. - L.H.

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8 x 3-1/2" N.C. hex.

4шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

A60897

TUBE - step mounting spacer

4шт.

A61831

BOX, TOOL

ATTACHMENT - tool box (Mach. Item), Includes: Ref. 11 - 22

1шт.

11

A59844

BOX, TOOL

BOX ASSY. - tool

1шт.

12

A61826

SUPPORT ASSY. - front, tool box

1шт.

13

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

Tool box Hex, 3/4"-10 x 4", G5

2шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Tool box 3/4"

2шт.

15

A59851

SPACER - (Used w/o wrapper), tool box

2шт.

16

A61822

SUPPORT ASSY. - rear, tool box

1шт.

17

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Tool box Hex, 5/8"-11 x 3", G5

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Tool box 5/8"

2шт.

20

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2", Tool box

4шт.

21

92-5

LOCK WASHER,5/16"

tool box 5/16"

4шт.

22

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" N.C. hex., lock, tool box

4шт.

25

A61174

BOX

- tool, fuel tank mounted (Used w/o cab)

1шт.

26

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", tool box

4шт.

27

92-6

LOCK WASHER,3/8"

tool box 3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., tool box

4шт.

29

A61788

BOX, TOOL

BOX - tool (Used w/cab)

1шт.

Выбрано товаров: 24
