Запчасти Case IH 770 (306) - GRILLE (09) - CHASSIS/ATTACHMENTS

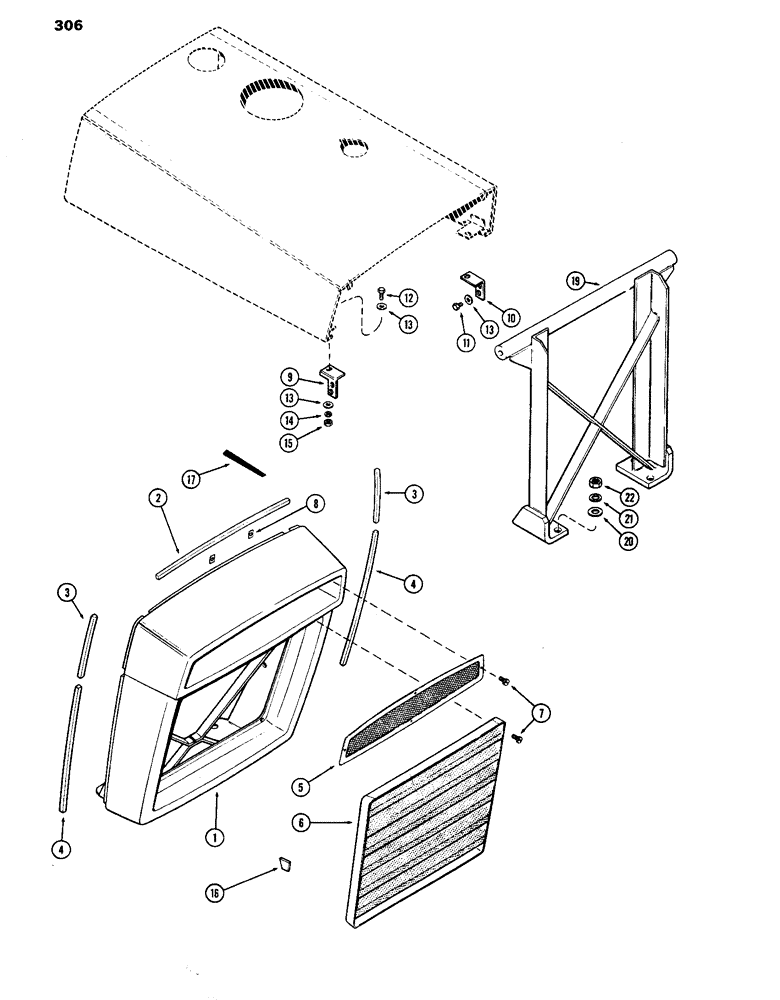

Схема запчастей Case IH 770 - (306) - GRILLE (09) - CHASSIS/ATTACHMENTS
7
3
4
8
13
14
19
17
20
15
11
22
16
1
12
21
5
3
2
6
9
10
13
13
4

Артикул

Название

Примечание

Количество

1

A61081

GRILLE ASSY. - fiberglass

1шт.

2

A59746

SEAL

SPACER - hood to grille, center

1шт.

Attach with adhesive 345-19

1шт.

3

A59747

GASKET

SPACER - hood to grille side, upper

2шт.

Attach with adhesive 345-19

1шт.

4

A59748

GASKET

SPACER - front side, Serial Range: sheets-grille

2шт.

Attach with adhesive 345-19

1шт.

5

A59749

SCREEN ASSY. - grille cap

1шт.

6

A59752

FILTER SCREEN

SCREEN ASSY. - grille

1шт.

7

169-154

SCREW,Phil Fil Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. Phillips (black)

8шт.

8

131-616

NUT,Ret, J, 5/16"-18

RETAINER - Tinnerman "J" type

8шт.

9

A62742

BRACKET

- front hood to grille, R.H.

1шт.

10

A62743

BRACKET

- front hood to grille, L.H.

1шт.

11

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

- (5/16 x 7/8" N.C. hex.) (Black Zinc)

4шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

14

192-45

LOCK WASHER

- lock, 5/16" (black)

6шт.

15

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex. (black)

2шт.

16

A62211

FOAM

- grille screen

12шт.

17

A62690

GUARD

TRIM - grille sight gauge (Standard)

1шт.

17

A75012

TRIM - grille sight gauge (Demonstrator)

1шт.

A60535

ATTACHMENT - support (Mach. Item), implement, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SUPPORT ASSY. - implement

1шт.

20

195-45

WASHER,3/4"

Implement support 3/4"

4шт.

21

192-167

LOCK WASHER,3/4"

WASHER, LOCK, , Implement support 3/4"

4шт.

22

25-1712

NUT,3/4"-16, G5, Hvy

- 3/4" N.F. hex., implement support

4шт.

Выбрано товаров: 26
