Запчасти Case IH 770 (296) - HYDRAULIC CYLINDER ATTACHING PARTS, HOSE ADAPTERS, A65953 CYLINDER RETURN FLOW REGULATOR (09) - CHASSIS/ATTACHMENTS

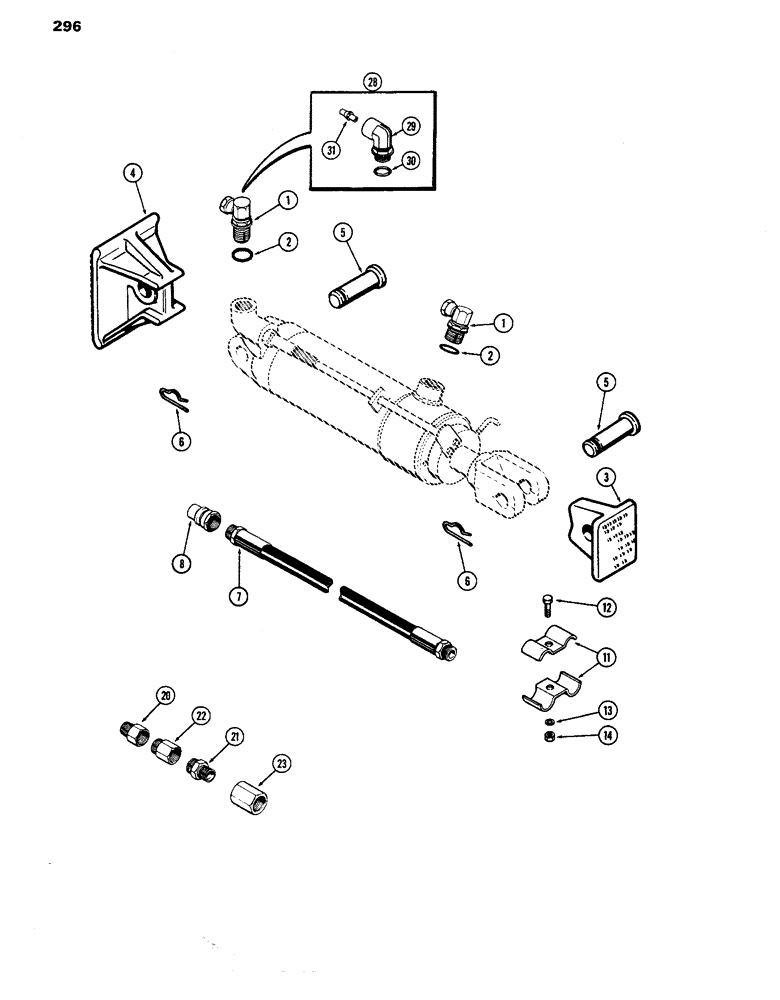

Схема запчастей Case IH 770 - (296) - HYDRAULIC CYLINDER ATTACHING PARTS, HOSE ADAPTERS, A65953 CYLINDER RETURN FLOW REGULATOR (09) - CHASSIS/ATTACHMENTS
30
7
29
23
1
20
13
6
12
2
28
2
31
14
5
22
8
3
5
6
4
11
1
21

Артикул

Название

Примечание

Количество

1

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - 90 Deg. adapter, Includes: Ref. 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

3

A9163

PAD - hydraulic cylinder

1шт.

4

A57188

BASE

- hydraulic cylinder

1шт.

5

A27347

PIN

- cylinder retaining

2шт.

6

A29054

HAIR PIN COTTER

- internal hair

2шт.

7

A8204

HOSE - hydraulic (60" long)

1шт.

7

A8205

HOSE - hydraulic (96" long)

1шт.

7

A20816

HOSE

- hydraulic (106" long)

1шт.

7

A20817

HOSE

- hydraulic (118" long)

1шт.

8

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away (See Fig. 290)

1шт.

11

A27440

CLAMP

- hose

2шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.)

1шт.

20

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- 7/8" - 18 female to 1/2" P.T. male, hose

1шт.

21

A27359

ADAPTER

- 7/8" - 18 male to 1/2" P.T. male, hose

1шт.

22

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- 7/8" - 18 male to 1/2" P.T. female, hose

1шт.

23

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- 7/8" - 18 female to 1/2" P.T. female, hose

1шт.

28

A65953

HYDRAULIC VALVE

KIT - cylinder return flow regulator, Includes: Ref. 29 - 31, A65953

1шт.

29

A65955

ELBOW,90 Degree, 7/8"-14" O-Ring x 1/2" NPT Fem

ASSY. - 90 Deg., Includes: Ref. 30, A65953 cylinder return flow regulator

1шт.

30

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING (7/8" tube O.D.), A65953 cylinder return flow regulator

1шт.

31

A57369

SPOOL

POPPET - check, A65953 cylinder return flow regulator

1шт.

Выбрано товаров: 23
