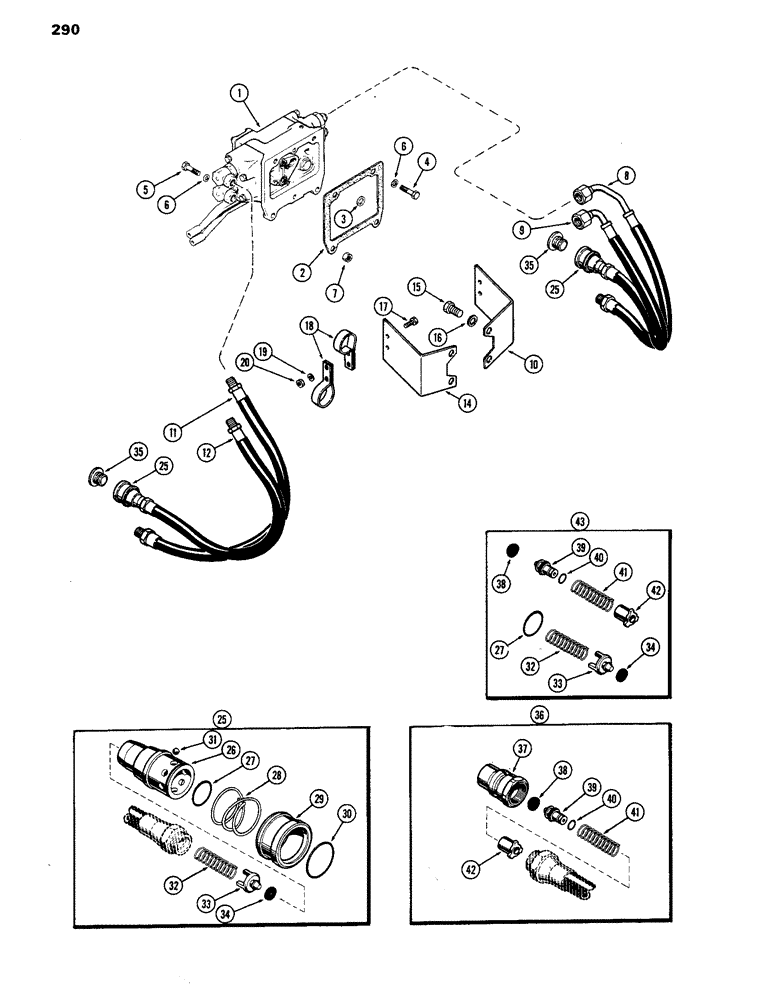

Запчасти Case IH 770 (290) - BREAK AWAY COUPLINGS AND LINES (09) - CHASSIS/ATTACHMENTS

1

A42248

VALVE

ASSY. - dual remote (See Fig.274 & 276 For Repairs)

1шт.

2

A32349

GASKET

- auxiliary valve

1шт.

3

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

- auxiliary valve

1шт.

4

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

- hex. (1/2" N.C.)

2шт.

8

A32999

HOSE

- hyd. coupling, lower, (L.H.) (24-7/16" long)

1шт.

9

A33003

HOSE

- hyd. coupling, upper, (L.H.) (18-3/16" long)

1шт.

10

A57661

BRACKET - mounting, break-away coupling (L.H.)

1шт.

11

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - hyd. coupling, upper, (R.H.) (31-5/8" long)

1шт.

12

A60395

HOSE,12.7mm ID x 726.95mm L

- hyd. coupling, lower, (R.H.) (28-5/8" long)

1шт.

14

A57660

BRACKET

- mounting, break-away coupling (R.H.)

1шт.

15

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

R.H. & L.H. coupling brackets (applicable when hitch is not used) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

4шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (Applicable when hitch is not used) 5/8"

4шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

18

A57662

CLAMP

- break-away coupling

4шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

20

25-104

NUT,1/4"-20, G5

4шт.

25

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - break-away, female half, Includes: Ref. 26 - 34

4шт.

26

A27349

BODY

- female section

1шт.

27

A34848

O-RING

"O" RING - body (7/8 x 1-1/8 x 1/8")

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

28

A27354

SPRING

- sleeve tension

1шт.

29

A27353

SLEEVE

SLEEVE - male coupling, lock & release

1шт.

30

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve retaining

1шт.

31

211-7

BALL,1/4" Dia

- male coupling swivel (Grade A) 1/4" Dia

8шт.

32

A11324

SPRING

- piston pressure

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

33

A26215

PISTON

- coupling socket

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

34

A33964

SEAL

- piston

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

35

A22768

PLUG

- dust, female coupling

4шт.

36

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - hyd. break-away, male half, Includes: Ref. 37 - 42

1шт.

37

A27356

PIPE FITTING

BODY - male section

1шт.

38

A33964

SEAL

- piston

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

39

A27508

PISTON

- coupling

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

40

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston (1/4 x 3/8 x 1/16")

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

41

A27351

SPRING

- piston

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

42

A9634

SLEEVE

- piston

1шт.

Part of break-away coupling repair kit P/N A40459

1шт.

43

A40459

KIT

REPAIR KIT - break-away coupling, Includes: Ref. 27, 32, 33, 34, 38, 39, 40, 41 and 42

1шт.
