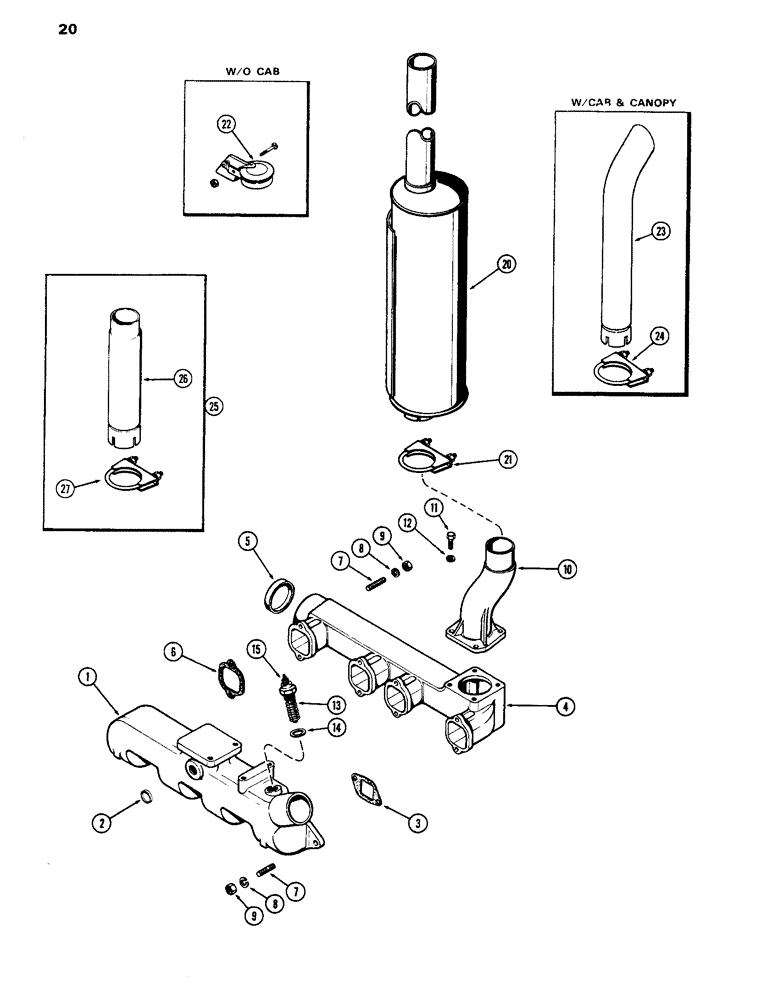

Запчасти Case IH 770 (020) - MANIFOLD AND MUFFLER, 267B DIESEL ENGINE (02) - ENGINE

1

A61003

TUBE

MANIFOLD - intake, Includes: Ref. 2

1шт.

2

41-1020

PLUG,Cup, 1 1/4"

- intake manifold

1шт.

3

A58662

MANIFOLD GASKET

- intake manifold

4шт.

4

A58749

MANIFOLD

ASSY. - exhaust

1шт.

5

A58750

PLUG,Cup, 3 1/4", Stainless

- (3-1/4" cup type)

1шт.

6

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

7

A59077

STUD

- manifolds (3/4" N.C. x 1-3/4")

16шт.

8

92-6

LOCK WASHER,3/8"

16шт.

9

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.) (intake manifold)

8шт.

9

131-903

NUT,3/8"-16

NUT - (3/8" N.c. seez-pruf) (exhaust manifold)

8шт.

10

A59076

PIPE, EXHAUST SYSTEM

STACK - exhaust manifold

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A37775

HEATER

ASSY. - intake manifold (12 v.)

1шт.

14

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

15

129-503

NUT,1/4"-20, Brass

1шт.

20

A59764

MUFFLER

- (black)

1шт.

21

A27115

CLAMP

- muffler

1шт.

22

D28028

CAP

- rain, muffler (used w/o cab)

1шт.

23

A62470

EXTENSION

- exhaust pipe (curved) (used w/cab & canopy) (black)

1шт.

24

A62874

CLAMP

- extension

1шт.

25

A62718

KIT

EXHAUST EXTENSION KIT - (for tractors w/o cab & also an added extension for tractors w/cab or canopy), Includes: Ref. 26 and 27

1шт.

26

A61109

EXTENSION

- exhaust pipe

1шт.

27

A62874

CLAMP

- extension

1шт.
