Запчасти Case IH 770 (289A) - QUICK HITCH COUPLER, CATEGORY II (09) - CHASSIS/ATTACHMENTS

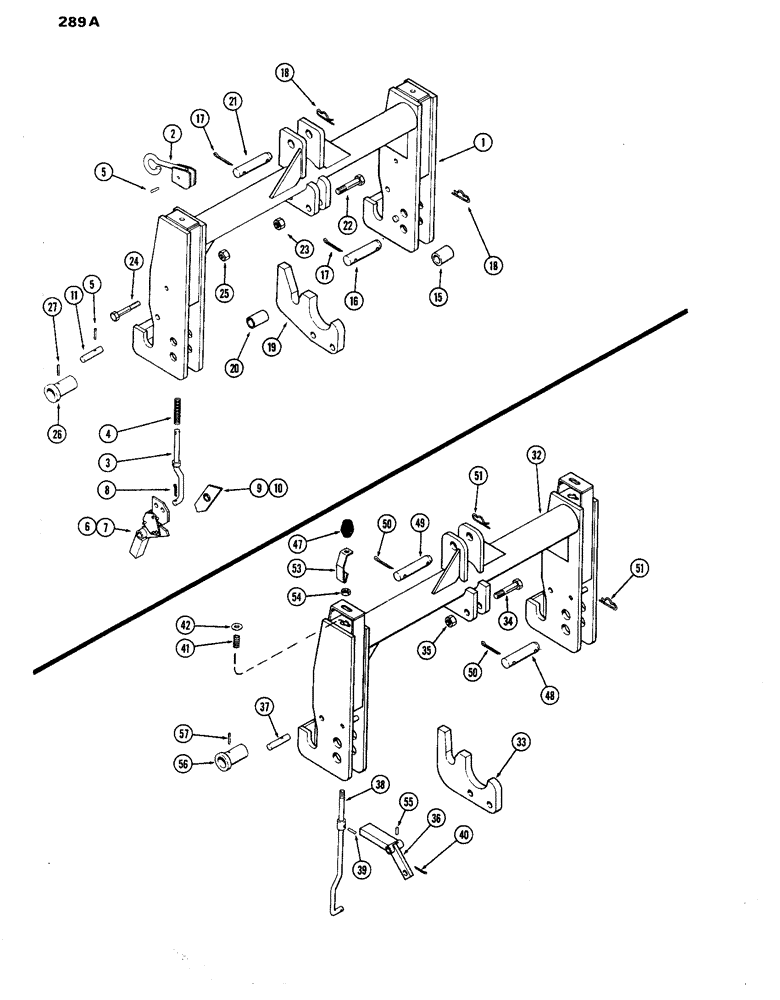

Схема запчастей Case IH 770 - (289A) - QUICK HITCH COUPLER, CATEGORY II (09) - CHASSIS/ATTACHMENTS
17
5
41
36
35
34
16
11
51
49
17
48
18
40
56
37
33
54
27
18
47
39
1
20
19
53
10
26
42
50
51
22
50
15
24
7
57
32
38
23
5
8
55
4
2
25
21
3
6
9

Артикул

Название

Примечание

Количество

A65708

COUPLER ASSY. - quick hitch (Mach. Item) (Replaced A62872), Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - coupler

1шт.

2

A44472

HANDLE

- hitch release

2шт.

3

A44467

ROD

- handle to tripping devices

2шт.

4

A44476

VALVE SPRING

SPRING - release rod

2шт.

5

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN - roll (3/16 x 1-1/4")

4шт.

6

A44468

LEVER

- lower lock (R.H.)

1шт.

7

A44469

LEVER

- lower lock (L.H.)

1шт.

8

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

9

A44470

LEVER

- lower trip ratchet (R.H.)

1шт.

10

A44471

LEVER

- lower trip ratchet (L.H.)

1шт.

11

A44473

PIN

- trip ratchet lever pin

2шт.

15

A43542

SLEEVE

- lower draft arm pin

2шт.

16

A43540

AXLE PIN

PIN - draft arm, lower

2шт.

17

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

18

T50113

PIN

- clinch, draft arm pin

3шт.

19

A44475

LUG

- upper hitch

1шт.

20

A44474

SLEEVE

- upper draft arm pin

1шт.

21

A43541

PIN

- draft arm, upper

1шт.

22

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

23

129-108

NUT,3/4"-10, G5

2шт.

24

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

26

T32995

ADAPTER

- coupler (for Cat. II implement) (1-1/8" I.D.)

2шт.

27

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

PIN, 7/16" x 1 1/2", Slotted

2шт.

A62872

COUPLER ASSY. - quick hitch (Mach. Item) (Order A65708), Includes: Ref. 32 - 55

1шт.

32

NSS

NOT SOLD SEPARAT

FRAME - coupler

1шт.

33

A43543

LUG - upper link attachment

1шт.

34

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

35

129-108

NUT,3/4"-10, G5

2шт.

36

A43537

LEVER - trip, latch lug

2шт.

37

A43539

PIN - lever pivot

2шт.

38

A43538

ROD ASSY. - lock, trip lever, Includes: Ref. 39

2шт.

39

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

2шт.

40

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

41

A30083

VALVE SPRING

SPRING - lock rod

2шт.

42

195-533

WASHER,1/2", SAE

- plain, 17/32 x 1-1/16 x 3/32"

2шт.

47

A65699

KNOB

- lock rod (Replaced A65541 & A62078)

2шт.

48

A43540

AXLE PIN

PIN - draft arm to coupler (1-1/8" x 4-3/4")

2шт.

49

A43541

PIN

- upper link to coupler (1" x 5")

1шт.

50

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

51

T50113

PIN

- cotter, hairpin

3шт.

NSS

NOT SOLD SEPARAT

KIT - locking latch (Order individual parts), Includes: Ref. 53 and 54

1шт.

53

A43092

CLIP

- lock

2шт.

54

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

2шт.

55

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

2шт.

56

T32995

ADAPTER

- coupler (for Cat. II implement)(1-1/8" I.D.)

2шт.

57

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

PIN, 7/16" x 1 1/2", Slotted

2шт.

Выбрано товаров: 48
