Запчасти Case IH 770 (288) - THREE POINT HITCH, DRAFT ARMS (09) - CHASSIS/ATTACHMENTS

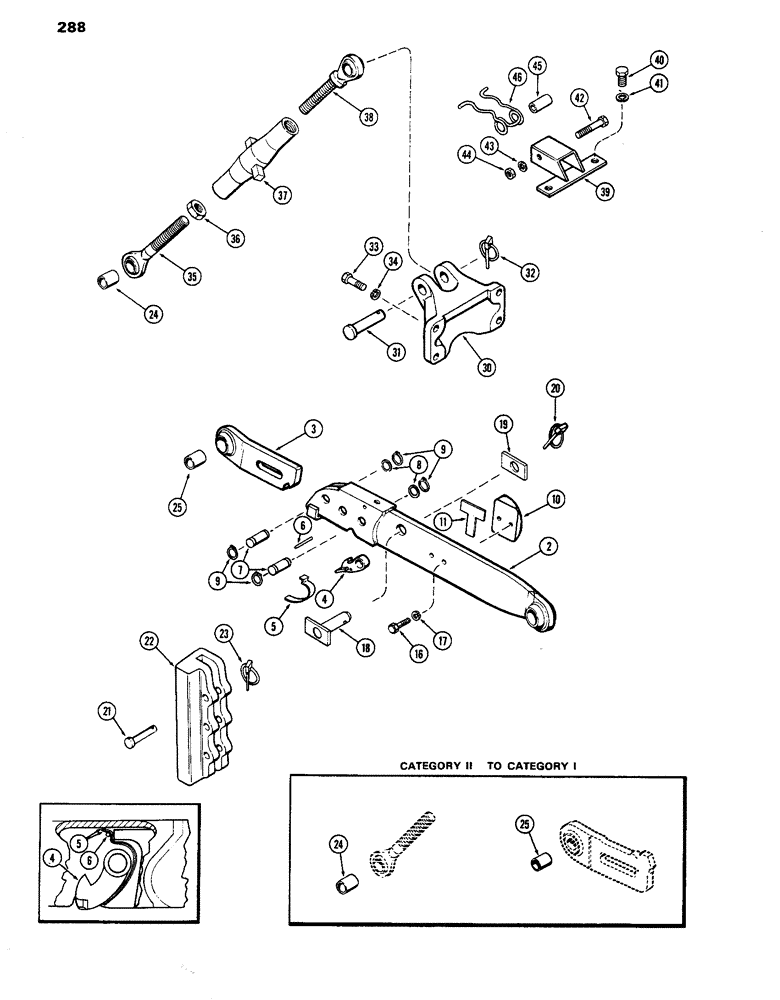

Схема запчастей Case IH 770 - (288) - THREE POINT HITCH, DRAFT ARMS (09) - CHASSIS/ATTACHMENTS
18
5
5
10
25
9
6
4
43
35
46
36
3
24
33
34
38
31
16
23
44
21
20
2
40
41
19
39
25
32
7
42
22
6
37
45
9
30
17
8
4
24
11

Артикул

Название

Примечание

Количество

A57732

ARM

ASSY. - draft (R.H.) (Not Illust.), Includes: Ref. 2 - 9

1шт.

A57733

ARM

ASSY. - draft (L.H.) (Not Illust.), Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

ARM - draft (R.H.) (Order A57732)

1шт.

2

NSS

NOT SOLD SEPARAT

ARM - draft (L.H.) (Order A57733)

1шт.

3

A57196

LINK

- folding, draft arm (R.H.)

1шт.

3

A57197

LINK

- folding, draft arm (L.H.)

1шт.

4

A57199

LATCH

- folding link

1шт.

5

A57200

SPRING

- folding link latch

2шт.

6

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

7

A33530

PIN,19.05mm OD x 50.01mm L

- latch & folding link

2шт.

8

A34059

WASHER

- folding link latch pin (inside) (3/4 x 1-1/8 x 20 ga.)

1шт.

9

A33531

SNAP RING,#75, Ext

RING - snap, , folding link latch pin #75, Ext

4шт.

10

A32973

BLOCK

- sway, draft arm

2шт.

11

A33959

SHIM,.0598" Thk

Draft arm sway block .0598" Thk

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Block to arm Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

A62244

BLOCK

- yoke retaining

2шт.

19

A62246

BLOCK

- yoke pin

2шт.

20

A33509

PIN,11.18mm OD

ASSY. - klick

2шт.

21

A32965

PIN,15.88mm OD x 74.61mm L

- stop retaining clevis

4шт.

22

A62428

STOP

- draft arm sway

2шт.

23

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSY. - klick

4шт.

24

A33499

ADAPTER

- upper hitch pin (Category II to Category I)

1шт.

25

A33498

ADAPTER

- lower hitch pin (Category II to Category I)

2шт.

30

A60667

BRACKET

- mounting, upper link

1шт.

31

A33432

PIN

- rear link mast (one shipped loose in tool box)

2шт.

32

A33509

PIN,11.18mm OD

ASSY. - klick, rear link mast & upper mtg. (one shipped loose in tool box)

2шт.

33

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Bracket to PTO housing Hex, 5/8"-11 x 2", G5

2шт.

33

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

NSS

NOT SOLD SEPARAT

TURNBUCKLE ASSY. - upper link adj. screw (Not Illust.), Includes: Ref. 35 - 38

1шт.

35

A34198

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- upper link. rear (implement end)

1шт.

36

25-1520

NUT

- hex. (1-1/4" N.F. Jam)

1шт.

37

A62386

TURNBUCKLE

- lift link, upper

1шт.

38

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- upper link, front (tractor end)

1шт.

39

A60664

BRACKET

- turnbuckle transport clip

1шт.

40

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Bracket to P.T.O. hsg. Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

42

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex. hd., clip to mtg. brkt. (1/2 x 3" N.C.)

1шт.

43

92-8

LOCK WASHER,1/2"

1шт.

44

25-108

NUT,1/2"-13, G5

- hex. (1/2" N.C.)

1шт.

45

A60246

SPACER

- turnbuckle transport clip bracket

1шт.

46

A61684

CLIP

- retaining, mast

1шт.

Выбрано товаров: 43
