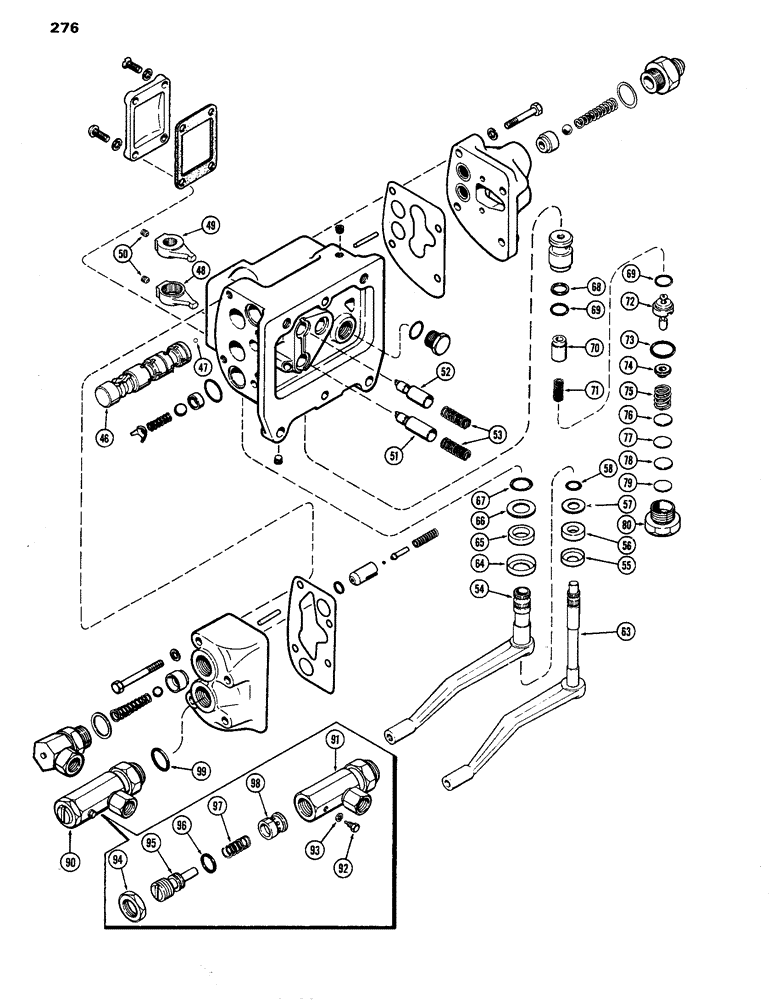

Запчасти Case IH 770 (276) - A42248 VALVE (08) - HYDRAULICS

A42248

VALVE

ASSY. - dual remote (Cont'd. From Fig. 274), Includes: Ref. 46 - 80 and 1 - 41 on Fig. 274

1шт.

46

A57538

SPOOL

ASSY. - hydraulic valve, Includes: Ref. 47

2шт.

47

211-5

BALL,3/16" Dia

- (meter, Grade 3) 3/16" Dia

1шт.

48

A57546

ARM

ASSY. - hyd. valve spool shifter lever, inner, Includes: Ref. 50

1шт.

49

A57547

ARM

ASSY. - hyd. valve spool shifter lever, outer, Includes: Ref. 50

1шт.

50

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (hex. sckt. hdless., cup pt.)

1шт.

51

A57554

PLUNGER

- hyd. valve spool, inner

1шт.

52

A57555

PLUNGER

- hyd. valve spool, outer

1шт.

53

A30883

SPRING

- hyd. valve spool plunger

2шт.

54

A60393

SHAFT

- valve shifter lever, outer

1шт.

55

A30875

RETAINER

- felt washer, outer shifter shaft

1шт.

Part of dual remote valve repair kit A43086

1шт.

56

A30853

WASHER

- felt, outer shifter shaft

1шт.

Part of dual remote valve repair kit A43086

1шт.

57

A27409

WASHER

- outer shifter shaft seal

1шт.

Part of dual remote valve repair kit A43086

1шт.

58

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - valve, outer shifter shaft (1/2 x 11/16 x 3/32")

1шт.

Part of dual remote valve repair kit A43086

1шт.

63

A60391

SHAFT

- valve shifter lever, inner

1шт.

64

A30880

RETAINER

- felt washer, inner shifter shaft

1шт.

Part of dual remote valve repair kit A43086

1шт.

65

A30879

WASHER

- felt, inner shifter shaft

1шт.

Part of dual remote valve repair kit A43086

1шт.

66

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - inner shifter shaft seal

1шт.

Part of dual remote valve repair kit A43086

1шт.

67

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - sealing, valve, inner shifter shaft (3/4 x 15/16 x 3/32")

1шт.

Part of dual remote valve repair kit A43086

1шт.

68

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

Part of dual remote valve repair kit A43086

1шт.

69

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - (5/8 x 3/4 x 1/16") pilot relief valve

2шт.

Part of dual remote valve repair kit A43086

1шт.

70

A57553

PISTON

- pilot relief valve

1шт.

71

A34382

SPRING

- pilot relief valve (1" free length) (15/32" O.D.)

1шт.

72

A57556

PISTON

ASSY. - pilot relief valve

1шт.

73

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - pilot relief valve plug (3/4 x 59/64 x 1/8")

1шт.

Part of dual remote valve repair kit A43086

1шт.

74

A57558

RETAINER

- pilot relief valve spring

1шт.

75

A34492

SPRING

- auxiliary valve pilot relief poppet (23/32" free length) (49/64" O.D.)

1шт.

76

A34849

SHIM,.0105" Thk

Pilot relief spring .0105" Thk

1шт.

Refer to tag attached to A42248 valve assy. for shim data.

1шт.

77

A34390

SHIM,.0329" Thk

Pilot relief spring .0329" Thk

1шт.

Refer to tag attached to A42248 valve assy. for shim data.

1шт.

77

A34391

SHIM,.0149" Thk

Pilot relief spring .0149" Thk

1шт.

Refer to tag attached to A42248 valve assy. for shim data.

1шт.

78

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue Japan) .0149" Thk

1шт.

Refer to tag attached to A42248 valve assy. for shim data.

1шт.

79

A34694

SHIM,.0201" Thk

Pilot relief spring .0201" Thk

1шт.

Refer to tag attached to A42248 valve assy. for shim data.

1шт.

80

A34392

PLUG

- pilot relief valve

1шт.

A43086

SEAL

KIT - repair, dual remote valve, Includes: Ref. 55, 56, 57, 58, 64 thru 69 and 73 (Not Illust.) (Replaced A42882)

1шт.

A42888

KIT

- seal (Includes 1-A34493, 2-A17526 and 1-218-5008) (Services pilot relief valve)

1шт.

A65107

REGULATOR

KIT - cylinder speed, remote hydraulic, Includes: Ref. 90 - 99, A65107 attachment

1шт.

90

A65105

VALVE

REGULATOR ASSY. - cylinder speed, A65107 attachment, Includes: Ref. 91 - 98

1шт.

91

NSS

NOT SOLD SEPARAT

BODY - (Order A65107), A65107 regulator attachment

1шт.

92

A31095

SCREW,Hex, #8 - 32 x 15/32"

- stop, A65107 regulator attachment

1шт.

93

192-106

WASHER

- lock (#8), A65107 regulator attachment

1шт.

94

A31094

JAM NUT

- lock, adj. screw (7/8" N.F. hex.), A65107 regulator attachment

1шт.

95

A31093

ADJUSTMENT SCREW,7/8" - 14 x 2 11/32", Gr 2

SCREW - adjusting, A65107 regulator attachment

1шт.

96

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - (9/16 x 3/4 x 3/32"), A65107 regulator attachment

1шт.

97

A27452

SPRING

- pressure, A65107 regulator attachment

1шт.

98

A31092

PISTON

- speed regulator, A65107 attachment

1шт.

99

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - regulator to head (3/4 x 59/64 x 1/8"), A65107 attachment

1шт.
