Запчасти Case IH 770 (019A) - PRE CLEANER, 267B DIESEL ENGINE (02) - ENGINE

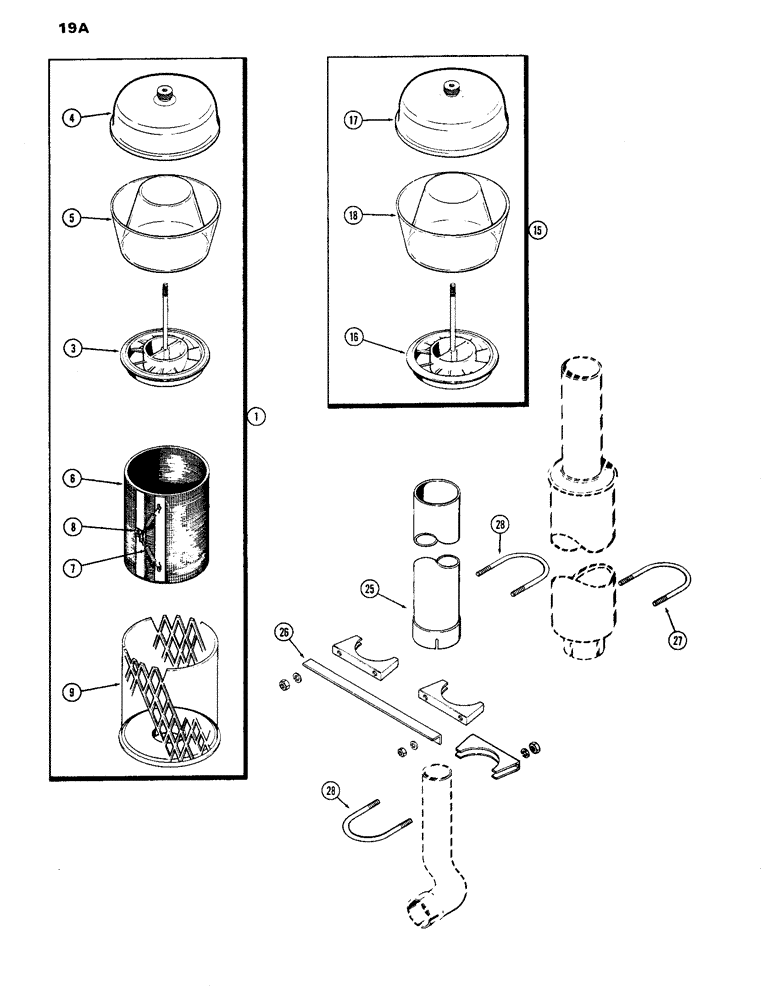

Схема запчастей Case IH 770 - (019A) - PRE CLEANER, 267B DIESEL ENGINE (02) - ENGINE
3
1
28
4
5
9
25
16
17
18
15
8
27
7
28
26
6

Артикул

Название

Примечание

Количество

1

A61273

CLEANER

PRE-CLEANER ASSY., Includes: Ref. 3 - 9, Serial Range: -8693001

1шт.

A64589

PRECLEANER

PRE-CLEANER, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - adapter

1шт.

4

73187

COVER

- pre-cleaner

1шт.

5

73186

HOUSING

BODY - pre-cleaner

1шт.

6

F83644

SCREEN

1шт.

7

A22780

SPRING

2шт.

8

A22781

CLIP

1шт.

9

F83643

BODY

1шт.

15

A64589

PRECLEANER

PRE-CLEANER ASSY., Includes: Ref. 16 - 18, Start Serial: 8693001

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - adapter

1шт.

17

73187

COVER

- pre-cleaner

1шт.

18

NLS

NO LONGER SERVICED

BODY - pre-cleaner

1шт.

A64997

ATTACHMENT - air intake extension (Mach. Item), Includes: Ref. 25 - 28

1шт.

25

A64996

EXTENSION - air intake tube, extension attachment

1шт.

26

A64995

BRACKET - air intake extension to muffler, attachment

1шт.

27

A64801

CLAMP

- bracket to muffler, air intake extension attachment

1шт.

28

A62874

CLAMP

- extension to bracket and tube, air intake attachment

2шт.

Выбрано товаров: 18
