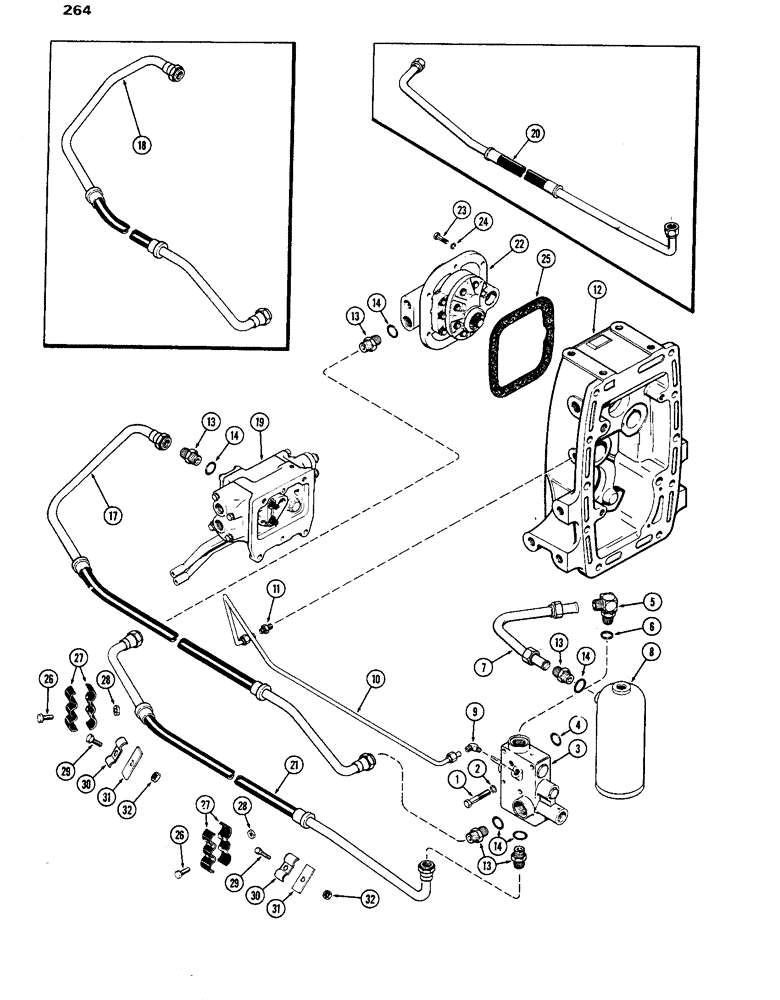

Запчасти Case IH 770 (264) - HYDRAULIC SYSTEM, POWER SHIFT (08) - HYDRAULICS

1

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex. hd. (3/8 x 2-3/4" N.C.)

3шт.

2

92-6

LOCK WASHER,3/8"

3шт.

3

A65670

VALVE

ASSY. - "Case" flow divider and P.T.O. control (Replaced A60270) (See Fig. 270 For Repairs)

1шт.

4

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - "Case" flow divider & P.T.O. control valve and trans. case sump (1 x 3/4 x 1/8")

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - 90 Deg. adjustable with "O" ring & locknut, (3/4" tube O.D. x 1-1/16" P.T.), Incl. Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

7

A61779

TUBE

- trans. oil filter to "Case" flow divider & P.T.O. control valve

1шт.

8

A60766

SPROCKET

FILTER ASSY. - hyd. oil (See Fig.196 For Repairs)

1шт.

9

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

(3/8" tube) (Used with PTO) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

10

A60289

TUBE

- "Case" flow divider & P.T.O. control valve to P.T.O. housing (Used With P.T.O.)

1шт.

11

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight (3/8 tube O.D. x 1/4" P.T.) (Used With P.T.O.)

1шт.

12

REF

INSTRUCTION

HOUSING - P.T.O. & hyd. pump (Order From Fig. 248)

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, with "O" ring (3/4" tube O.D. x 1-1/16" P.T.), Incl. Ref. 14

5шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

17

A64477

TUBE

- dual remote valve to "Case" flow divider & P.T.O. control valve, Start Serial: 8693001

1шт.

18

A61861

TUBE ASSY.

TUBE - dual remote valve to "Case" flow divider & P.T.O. control valve, Serial Range: -8693001

1шт.

19

A42248

VALVE

ASSY. - dual remote (See Fig. 274 & 276 For Repairs)

1шт.

20

A64480

TUBE

- "Case" flow divider & P.T.O. control valve to hyd. pump, Start Serial: 8693001

1шт.

21

A61859

TUBE ASSY.

TUBE - "Case" flow divider & P.T.O. control valve to hyd. pump, Serial Range: -8693001

1шт.

22

REF

INSTRUCTION

PUMP ASSY. - hyd. dual (See Fig. 272)

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A32096

GASKET

- hydraulic dual pump

1шт.

26

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

(Used with & without P.T.O.) Hex, 5/16"-18 x 1 1/8", G5

4шт.

27

A60862

CLAMP

- tube (Used With & Without P.T.O.)

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.) (Used With & Without P.T.O.)

4шт.

29

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Used w/ P.T.O.) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

30

A61272

CLAMP

- tube (Used With P.T.O.)

2шт.

31

A60864

PLATE

- mounting, tube clamp (Used With P.T.O.)

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.) (Used With P.T.O.)

2шт.
