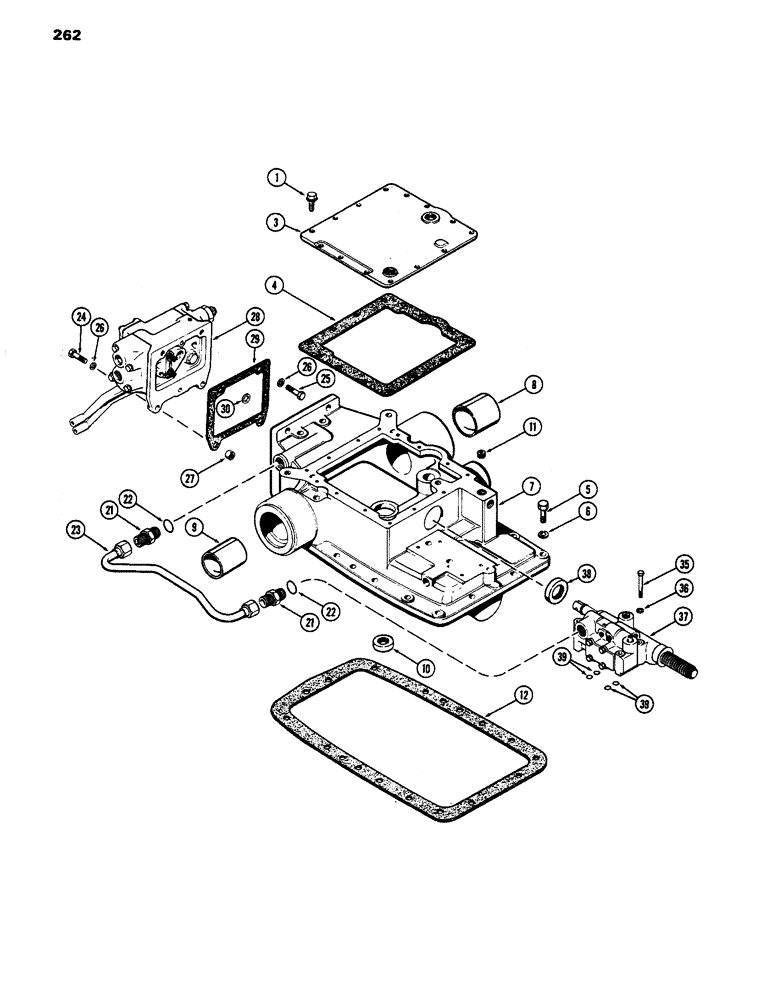

Запчасти Case IH 770 (262) - HYDRAULIC SYSTEM, POWER SHIFT AND MECHANICAL SHIFT (08) - HYDRAULICS

1

193-538

BOLT - hex. hd. (5/16 x 1" N.C. Sems)

10шт.

1

193-537

BOLT - hex. hd. (5/16 x 1-1/4" N.C. Sems)

2шт.

3

A59598

COVER

- rockshaft housing

1шт.

4

A33383

GASKET

- rockshaft housing cover

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

5

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

5

15-8112

BOLT

- hex. hd. (1/2 x 7" N.C.) (Grade 5)

2шт.

6

92-8

LOCK WASHER,1/2"

16шт.

7

A60639

HOUSING

ASSY. - rockshaft w/bushings, Includes: Ref. 8 - 11

1шт.

8

A32303

BUSHING,69.75mm ID x 74.73mm OD x 76.2mm L

- rockshaft hsg. (L.H.) (2-3/4 x 2-15/16 x 3")

1шт.

9

A32302

BUSHING,60.27mm ID x 65.2mm OD x 76.2mm L

- rockshaft hsg. (R.H.) (2-3/8 x 2-9/16 x 3")

1шт.

10

A12014

BUSHING

- signal shaft, upper (1-1/2 x 1-3/4 x 3/4")

1шт.

11

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - pipe (3/8" hex. socket head)

3шт.

12

A32299

GASKET

- rockshaft housing

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, w/"O" ring (3/4" tube O.D. x 1-1/16"), Incl. Ref. 22

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

23

A59602

TUBE

- draft control valve to rockshaft hsg.

1шт.

24

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

25-108

NUT,1/2"-13, G5

- hex. (1/2" N.C.)

2шт.

28

A42248

VALVE

ASSY. - dual remote (See Fig. 274 & 276 For Repairs)

1шт.

29

A32349

GASKET

- auxiliary valve

1шт.

30

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

- auxiliary valve

1шт.

35

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

35

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

1шт.

36

92-5

LOCK WASHER,5/16"

4шт.

37

A59600

VALVE

ASSY. - draft control (See Fig. 278 For Repairs)

1шт.

38

A32307

SEAL

- draft control valve to rockshaft hsg. (1-15/32 x 1-7/8 x 13/64")

1шт.

39

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - draft control valve to rockshaft hsg. (1/2 x 11/16 x 3/32")

4шт.
