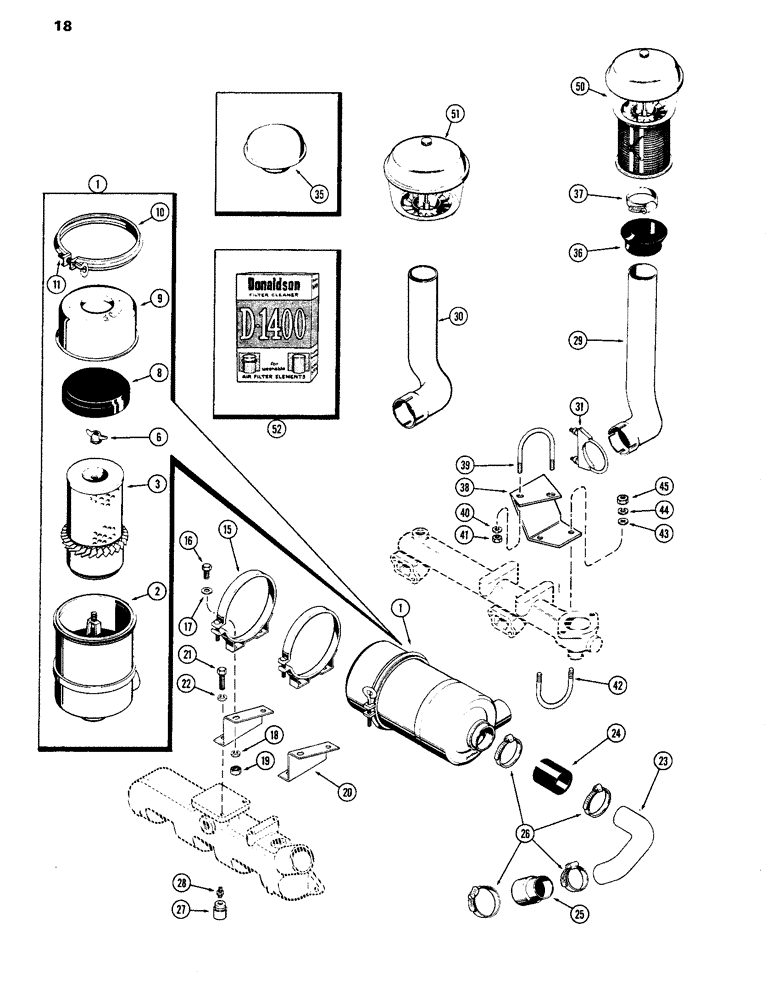

Запчасти Case IH 770 (018) - AIR CLEANER, 267B DIESEL ENGINE (02) - ENGINE

1

A59998

AIR CLEANER

CLEANER ASSY - air, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - cleaner

1шт.

3

A42274

AIR FILTER

ELEMENT ASSY. - cleaner

1шт.

PART MEASURES 14"

1шт.

6

F91761

WING NUT

& WASHER ASSY.

1шт.

8

F22312

BAFFLE

- rubber

1шт.

9

F91760

CUP

- cleaner

1шт.

10

F84999

CLAMP,168.28mm

ASSY. - cleaner

1шт.

11

25-224

SQUARE NUT,Sq, 1/4"-20

- (1/4" N.C. hex.)

1шт.

15

L11247

BAND

S - air cleaner mounting

2шт.

16

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

17

195-20

WASHER

- (5/16 x 7/8 x 1/16")

4шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

4шт.

20

A59209

BRACKET

- air cleaner mounting

2шт.

21

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A59565

TUBE

- air cleaner to intake manifold

1шт.

24

A59566

HOSE - air intake tube

1шт.

25

A59567

REDUCER

HOSE - outlet, Serial Range: tube-manifold

1шт.

26

214-2692

INDICATOR - air restriction (Replaces A59568)

1шт.

28

D36264

FITTING

FILTER - safety

1шт.

29

A59557

TUBE - air cleaner intake (15" height), Serial Range: -8693001

1шт.

30

A64588

TUBE - air cleaner intake (8" height), Start Serial: 8693001

1шт.

31

A613240

CLAMP - air cleaner intake tube (Replaced A62124)

1шт.

35

A61276

AIR CLEANER

CAP - air stack

1шт.

36

A59558

GROMMET - air cleaner intake tube

1шт.

37

214-42

CLAMP

- air cleaner tube grommet

1шт.

38

A62752

BRACKET - air cleaner tube

1шт.

39

A62753

U-BOLT

"U" BOLT - air cleaner bracket

1шт.

40

92-5

LOCK WASHER,5/16"

2шт.

41

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

42

A62664

"U" BOLT - air cleaner tube

1шт.

43

195-102

WASHER,1/4"

- plain () (zinc plated) 1/4"

2шт.

44

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

45

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

50

A61273

CLEANER

PRE-CLEANER ASSY. - (See Fig. 19A for repairs), Serial Range: -8693001

1шт.

51

A64589

PRECLEANER

PRE-CLEANER ASSY. - (See Fig. 19A for repairs), Start Serial: 869301

1шт.

52

A40910

CLEANER

DETERGENT - air cleaner element

1шт.
