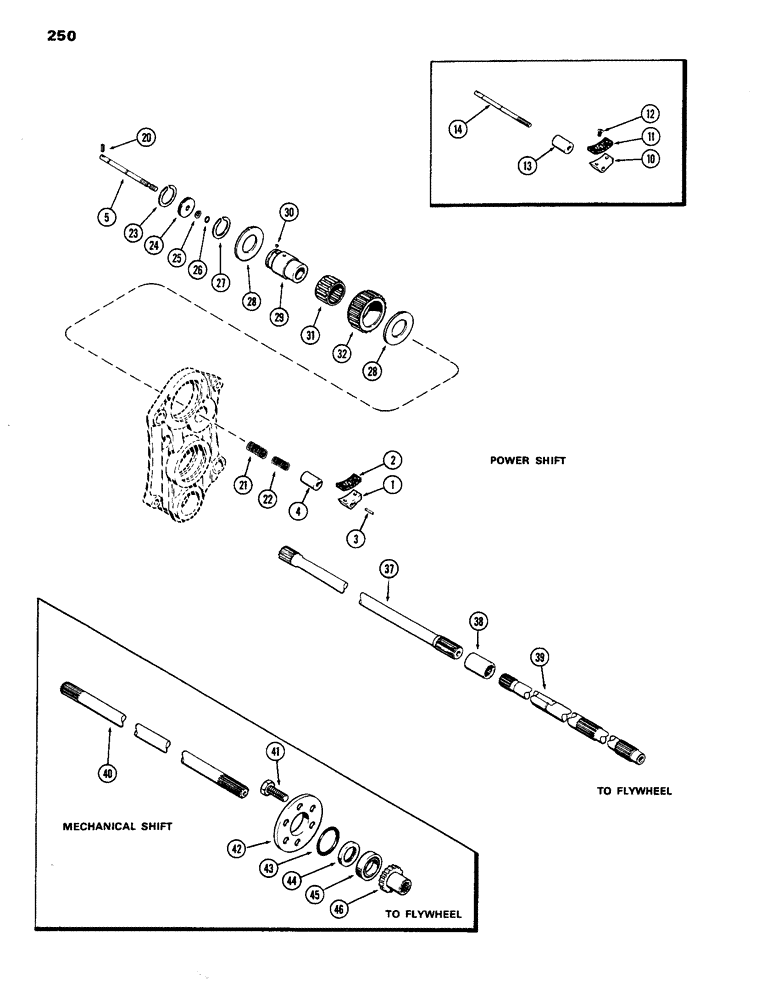

Запчасти Case IH 770 (250) - P.T.O. 1ST IDLER AND P.T.O. BRAKE (06) - POWER TRAIN

A65709

SHOE

ASSY. - P.T.O. brake (Replaced A58990), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHOE - P.T.O. brake (Order A65709)

1шт.

2

NSS

NOT SOLD SEPARAT

FACING - P.T.O. brake shoe (Order A65709)

1шт.

3

138-2037

PIN,1/8" x 3/4", Coiled

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - P.T.O. brake (Order A65709)

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - P.T.O. brake (Order A65709)

1шт.

A58990

SHOE

ASSY. - P.T.O. brake (Order A65709), Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

SHOE - P.T.O. brake

1шт.

11

A25599

FACING

KIT - P.T.O. brake, Includes: Ref. 12

1шт.

12

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self tapping (#10 N.C. x 3/8")

2шт.

13

NSS

NOT SOLD SEPARAT

PISTON - P.T.O. brake apply

1шт.

14

NSS

NOT SOLD SEPARAT

ROD - connecting, P.T.O. brake

1шт.

20

138-2037

PIN,1/8" x 3/4", Coiled

1шт.

21

A32451

SPRING

- actuating, P.T.O. brake

1шт.

22

D38446

SPRING

- actuating, P.T.O. brake (1-1/4" free length)

1шт.

23

A58989

RING

- seal, P.T.O. brake release piston

1шт.

24

A58994

PISTON

- P.T.O. brake release

1шт.

25

G46146

SNAP RING,#37, Ext

RING - snap, (P.T.O. brake connecting rod) #37, Ext

1шт.

26

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - P.T.O. brake rod

1шт.

27

A58989

RING

- seal (on P.T.O. 1st idler shaft)

1шт.

28

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

- P.T.O. 1st idler shaft

2шт.

29

A58988

SHAFT

- P.T.O. 1st idler

1шт.

30

211-7

BALL,1/4" Dia

- chrome steel (Gr. 3) 1/4" Dia

1шт.

31

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING - roller, 1st idler gear

1шт.

32

A34136

GEAR

- 1st idler (25 T)

1шт.

37

A58414

SHAFT

- drive, rear, P.T.O. (Power Shift)

1шт.

38

A37662

COUPLING, BREAK AWAY

COUPLING - drive shaft, front & rear, P.T.O. (Power Shift)

1шт.

39

A59931

SHAFT - drive, front, trans. & P.T.O. (Power Shift)

1шт.

40

A32459

SHAFT - drive, P.T.O. & hyd. pump

1шт.

41

114-622

X

BOLT - hex. hd. (5/8 x 2" N.F.)(Grade 8)

6шт.

42

A7145

RETAINER

- oil seal, clutch shaft, front

1шт.

43

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - oil seal retainer to flywheel seal (2-1/2 x 2-3/4 x 1/8")

1шт.

44

A57479

OIL SEAL

- oil, clutch shaft, front (1-1/2 x 2-1/8 x 7/16")

1шт.

45

A28237

BALL BEARING,34.99mm ID x 62mm OD x 14mm W

BEARING - ball, clutch shaft (in flywheel)

1шт.

46

A28234

SLEEVE

- drive shaft, P.T.O. and hyd. pump

1шт.
