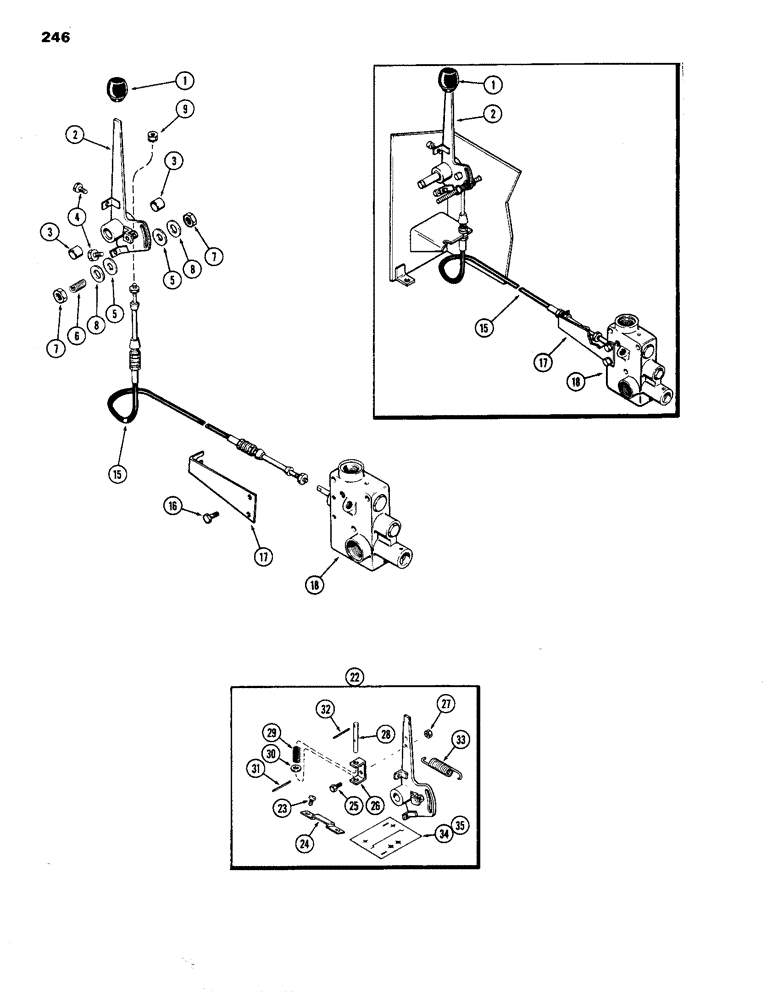

Запчасти Case IH 770 (246) - P.T.O. CONTROL LINKAGE (06) - POWER TRAIN

1

A65699

KNOB

- P.T.O. hand lever (Replaced A65541 & A62078)

1шт.

2

A61072

LEVER

- ASSY. - P.T.O. hand, with bushing, Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- P.T.O. hand lever

2шт.

4

A59463

BOLT

- P.T.O. hand lever stop (1/4 x 5/8" Nylon)

2шт.

5

A61069

DISC

- friction (25/64 x 1-1/4 x 1/8")

2шт.

6

A65583

SPRING

- friction disc, P.T.O. hand lever (Replaced A26546)

1шт.

7

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex., friction disc (3/8" N.C. top face lock)

2шт.

8

195-2172

WASHER,7/16" x 1 1/4" x .083"

- (7/16 x 1-1/4 x 14 ga.) (plated)

2шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10-32 hex. w/ext. tooth washer)

1шт.

15

A59466

CABLE

- P.T.O. control

1шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Bracket to valve body Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

17

A6267

BRACKET - P.T.O. control cable

1шт.

18

A65670

VALVE

ASSY. - "Case" flow divider & P.T.O. control (Replaced A60270) (See Fig. 270 For Repairs)

1шт.

22

A65481

KIT

- , Includes: Ref. 23 - 35, P.T.O. positive "On" & "Off"

1шт.

23

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- (#10 x 1/2" Phillips truss head) (plated), P.T.O. positive on & off kit

2шт.

24

NSS

NOT SOLD SEPARAT

LOCK - P.T.O. hand lever, positive on and off kit

1шт.

25

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

P.T.O. positive on and off kit Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

26

NSS

NOT SOLD SEPARAT

BRACKET - P.T.O. hand lever, positive on and off kit

1шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, P.T.O. positive on and off kit

2шт.

28

NSS

NOT SOLD SEPARAT

PIN - P.T.O. hand lever, positive on and off kit

1шт.

29

A22712

SPRING

- P.T.O. pin, positive on and off kit

1шт.

30

195-529

WASHER,7/16", SAE

- plain (7/16") (plated), P.T.O. positive on and off kit

1шт.

31

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, , P.T.O. positive on and off kit 3/16" x 7/8", Slotted

1шт.

32

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , P.T.O. positive on and off kit 3/16" x 2", Slotted

1шт.

33

A35789

SPRING

- P.T.O. return, positive on and off kit

1шт.

34

NSS

NOT SOLD SEPARAT

TEMPLATE - P.T.O. hand lever, positive on and off kit

1шт.

35

NSS

NOT SOLD SEPARAT

TEMPLATE - P.T.O. console cover, positive on and off kit

1шт.
