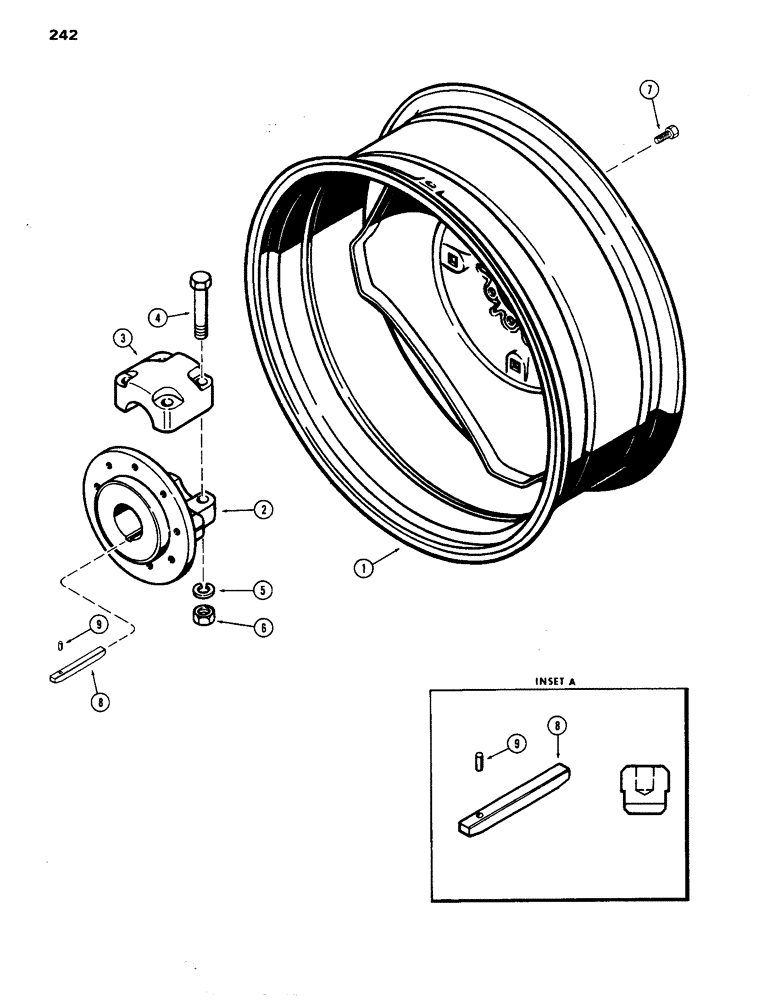

Запчасти Case IH 770 (242) - DUAL REAR WHEELS, STAMPED W/38" RIMS, USED WITH 3-3/16" DIAMETER AXLE (06) - POWER TRAIN

1

A34839

WHEEL

RIM - dual wheel (takes 15.5 x 38 tire)

2шт.

2

A34843

HUB ASSY. - rear wheel, dual, Includes: Ref. 3 - 6

2шт.

3

A34837

HUB CAP

CAP - hub

1шт.

4

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- (7/8 x 6" N.F. hex.) (Grade 5)

4шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

6

25-1114

NUT,7/8"-14, G5

- hex. (7/8" N.F)

4шт.

7

B18264

WHEEL BOLT

BOLT -, Serial Range: rim-hub

18шт.

8

A34890

BUCKET TOOTH KEY

KEY - hub to axle (See Inset A)

2шт.

9

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Rear axle shaft key 1/4" x 1/2", Slotted

2шт.
