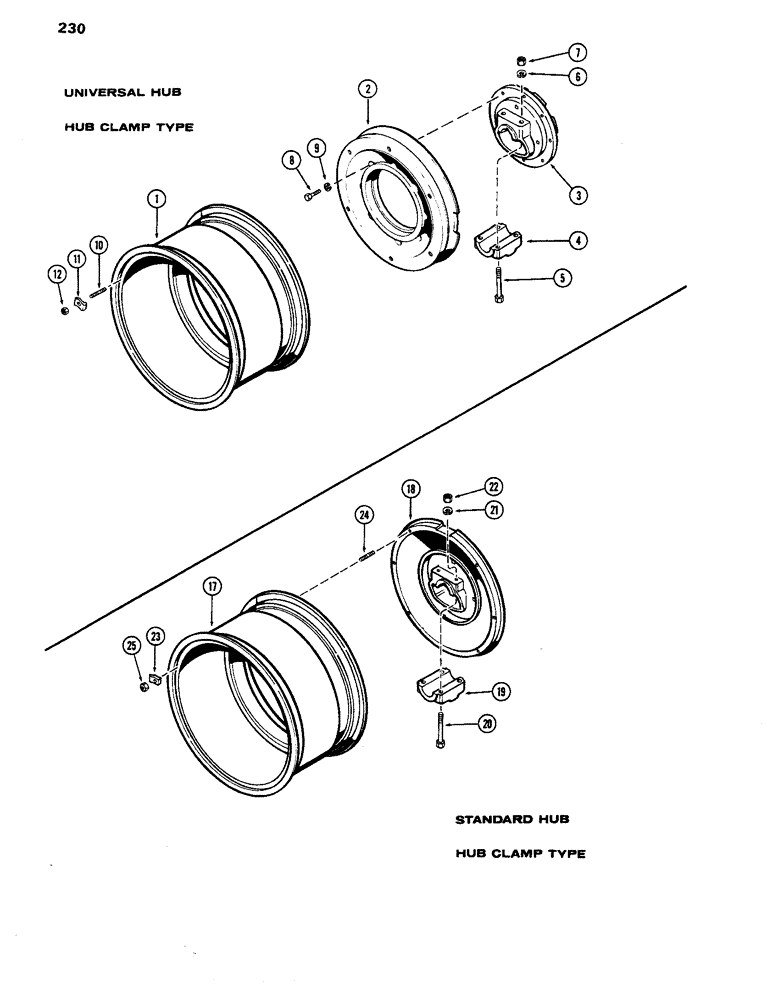

Запчасти Case IH 770 (230) - REAR WHEELS W/30" RIMS, MANUAL ADJUSTALBE, USED WITH 3-3/16" DIAMETER AXLE (06) - POWER TRAIN

1

A33176

RIM

- rear wheel (takes 23.1 x 30 tire)

2шт.

2

A33175

WHEEL

- universal hub

2шт.

3

A22668

HUB ASSY. - universal (cast), Includes: Ref. 4 - 7

2шт.

4

A57032

CAP

- hub

1шт.

5

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F. hex.)

4шт.

6

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

7

25-1114

NUT,7/8"-14, G5

- hex. (7/8" N.F.)

4шт.

8

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Wheel to hub Hex, 5/8"-11 x 2 1/4", G5

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

A60047

STUD

- rim to wheel clamp (5/8" N.C. x 2-7/16")

12шт.

11

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

12

A27183

NUT

- rim to wheel clamp stud (5/8" N.C. hex., special)

12шт.

17

A33176

RIM

- rear wheel (takes 23.1 x 30 tire)

2шт.

18

A60013

WHEEL

ASSY. - rear, standard hub, Includes: Ref. 19 - 22

2шт.

19

A57032

CAP

- hub

1шт.

20

A22389

WHEEL BOLT

BOLT - cap to wheel hub (7/8 x 7-1/2" N.F. hex.)

4шт.

21

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

22

25-1114

NUT,7/8"-14, G5

- hex. (7/8" N.F.)

4шт.

23

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

24

A60047

STUD

- rim to wheel clamp (5/8" N.C. x 2-7/16")

12шт.

25

A27183

NUT

- clamp stud (5/8" N.C. hex., special)

12шт.
