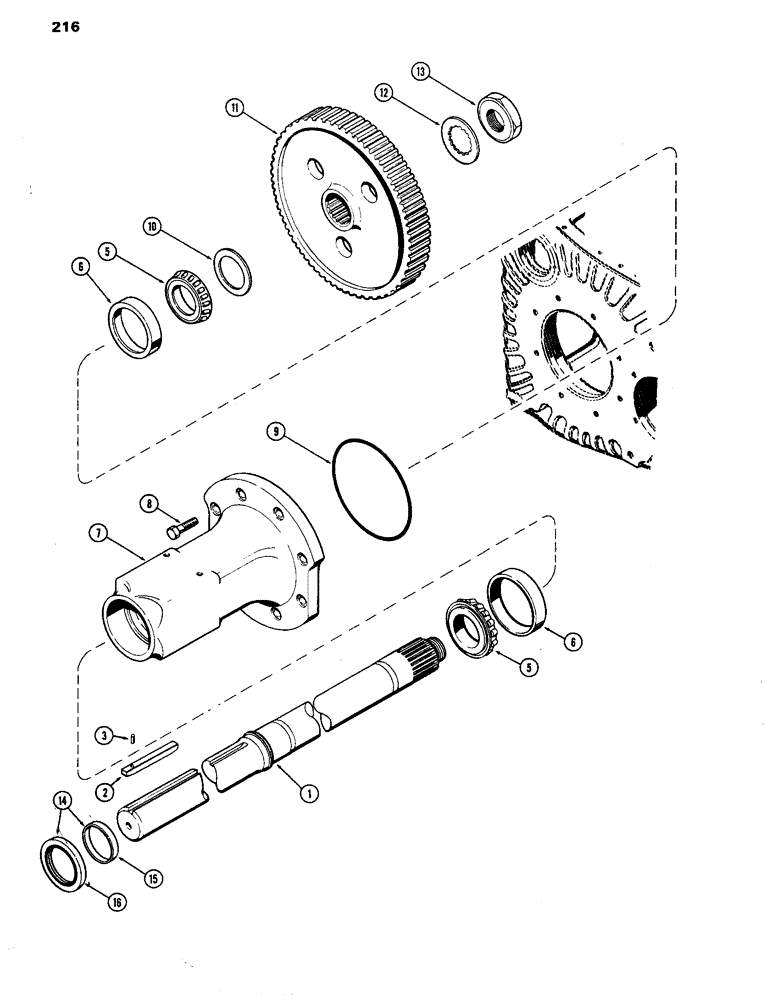

Запчасти Case IH 770 (216) - REAR AXLE, 41-13/64" LONG (06) - POWER TRAIN

1

A57909

SHAFT

- rear axle (3-3/16" dia.) (41-13/64" length) (.626/.628" width axle keyway)

2шт.

2

A34890

BUCKET TOOTH KEY

KEY - rear axle (.626/.629")

2шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN - roll, rear axle shaft key (1/4 x 1-3/8")

2шт.

5

40442

ROLLER BEARING,3.25" ID x 1.172"

CONE - bearing, rear axle shaft

4шт.

6

A28134

BEARING CUP

CUP - bearing, rear axle shaft

4шт.

7

A58478

HOUSING - axle, rear

2шт.

8

113-610

X

BOLT - axle hg. to trans. hsg. (5/8 x 2" N.C. hex.) (Gr. 8)

16шт.

9

A33050

OIL SEAL

- oil, rear axle housing (rubber)

2шт.

10

A60097

WASHER

- spacer, rear axle gear

2шт.

11

A57910

GEAR - final drive, rear axle

2шт.

12

A32806

LOCK WASHER

- lock, rear axle shaft (2-7/16 x 4-7/8 x 5/64")

2шт.

13

A23386

NUT

- lock, rear axle shaft

2шт.

14

A41814

SEAL

KIT - oil, rear axle shaft, Includes: Ref. 15 and 16

2шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE - wear (Order A41814)

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - oil (Order A41814)

1шт.
