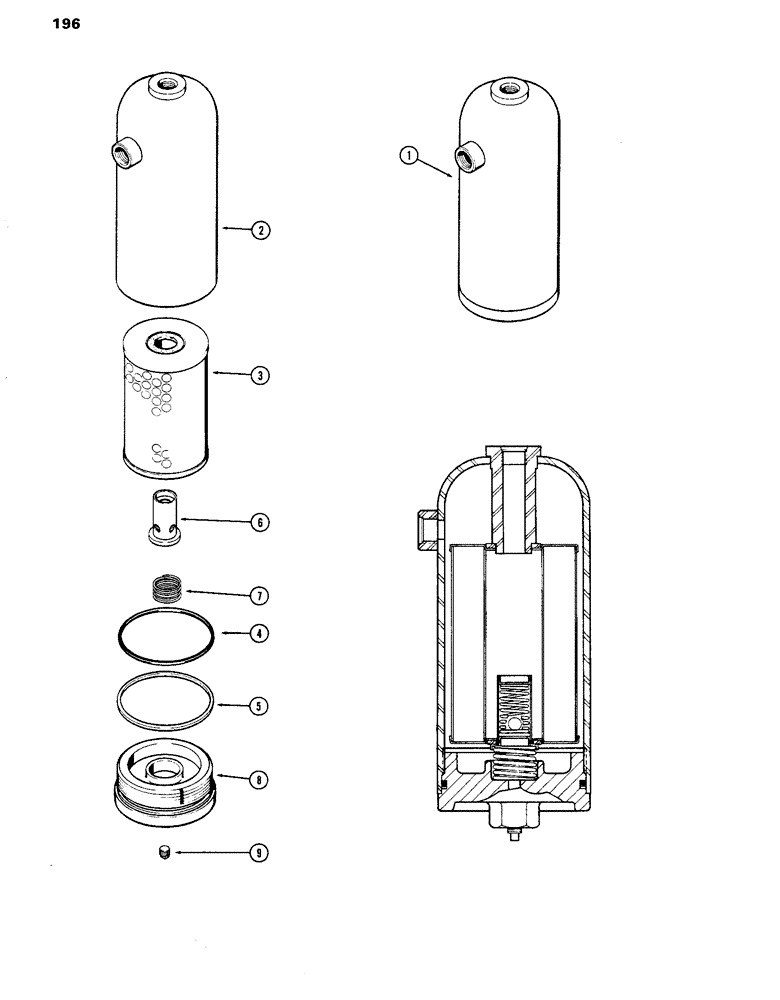

Запчасти Case IH 770 (196) - A60766 HYDRAULIC OIL FILTER, POWER SHIFT (06) - POWER TRAIN

1

A60766

SPROCKET

FILTER ASSY. - hyd. oil (10 Micron) (White Wrapper), Includes: Ref. 2 - 9

1шт.

2

A60767

BODY

- oil filter

1шт.

A62871

ELEMENT

KIT - oil filter element (Not Illust.) (Replaces A61235), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (10 Micron) (Order A62871)

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - sealing, oil filter body to cap (4 x 4-1/4 x 1/8")

1шт.

5

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

(Leather) Oil filter, Serial Range: body-cap

1шт.

6

D37207

VALVE

- relief, oil filter

1шт.

7

D31212

SPRING

- retaining, oil filter

1шт.

8

A60765

CAP

- end, oil filter

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" square head)

1шт.
