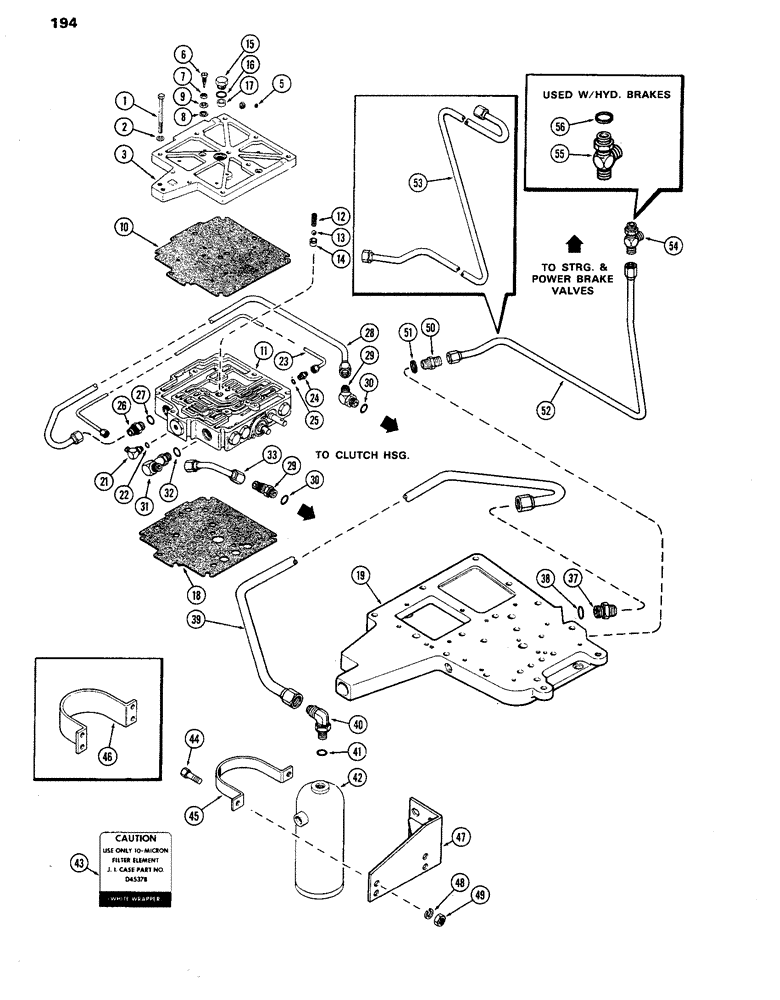

Запчасти Case IH 770 (194) - TRANSMISSION CONTROL VALVE, COVERS, GASKET AND TUBES, POWER SHIFT (06) - POWER TRAIN

1

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.) (Grade 5)

10шт.

2

92-6

LOCK WASHER,3/8"

10шт.

3

A62105

COVER - control valve

1шт.

5

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, valve cover (1/8" sq. hd.)

5шт.

6

A59073

NEEDLE

- retard orifice

2шт.

7

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

2шт.

8

A59074

SEAL

- (1/4" thread)

2шт.

9

122-13

GROMMET

WASHER - flat (1/4")

2шт.

10

A62270

GASKET

- control valve to valve cover

1шт.

11

A62634

CONTROL VALVE

VALVE ASSY. - trans. control valve (See Fig. 198 For Repairs)

1шт.

12

A61696

SPRING

- trans. control valve detent ball

1шт.

13

211-12

BALL,7/16 Dia

- detent (7/16" diameter)

1шт.

14

A59062

SLEEVE

- valve body detent

1шт.

15

A62106

PLUG

ASSY. - detent, Includes: Ref. 16

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

17

A62107

SPACER

- detent

1шт.

18

A62637

GASKET

- control valve to trans. cover

1шт.

19

A62638

COVER - trans. front top

1шт.

21

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY. - 90 Deg. adjustable (1/4" tube O.D. x 7/16"), Includes: Ref. 22

1шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (1/4 x 23/64 x 5/64")

1шт.

23

A60656

TUBE

- pilot, trans. control valve reverse lock-out

1шт.

24

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR ASSY. - (1/4" tube x 9/16" N.F.), Incl. Ref. 25

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (1/4 x 23/64 x 5/64")

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - (1/2" tube O.D. x 3/4" P.T.), Incl. Ref 27

1шт.

28

A60269

TUBE

- trans. control valve to clutch hsg.

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

29

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 45 Deg. adjustable (1/2" tube O.D.), Incl. Ref 30

2шт.

33

A62101

TUBE

- valve to clutch hsg.

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

31

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSY. - (1/2" tube O.D.), Includes: Ref. 32

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

39

A61780

TUBE

- hyd. oil filter to trans. control valve

1шт.

37

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - (3/4" tube O.D. x 1-1/16" P.T.), Incl. Ref. 38

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

42

A60766

SPROCKET

FILTER ASSY. - hyd. oil (10 Micron) (White Wrapper) (See Fig. 196 For Repairs)

1шт.

43

321-1762

DECAL

- "Warning", trans. oil filter (White Wrapper)

1шт.

40

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - (3/4" tube O.D. x 1-1/16" P.T.), Incl. Ref. 41

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

1шт.

45

A65004

CLAMP - hyd. oil filter to bracket (Replaced A60857)

1шт.

46

A60857

CLAMP - hyd. oil filter to bracket (Order A65004)

1шт.

47

A62650

BRACKET

- mounting, hyd. oil filter

1шт.

48

92-6

LOCK WASHER,3/8"

2шт.

49

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

2шт.

54

218-594

TEE,3/4"-16, 37 Degree

- junction (1/2" tube O.D.) (Used w/power brakes)

1шт.

50

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - (1/2" tube O.D. x 3/4" P.T.), Incl. Ref 51

1шт.

51

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

56

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

52

A64531

TUBE - tee junction to trans. cover, Start Serial: 8693001

1шт.

53

A59923

TUBE - tee junction to trans. cover, Serial Range: -8693001

1шт.

55

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - adjustable (1/2" tube O.D.) (Used w/hyd. brakes), Includes: Ref. 56

1шт.
