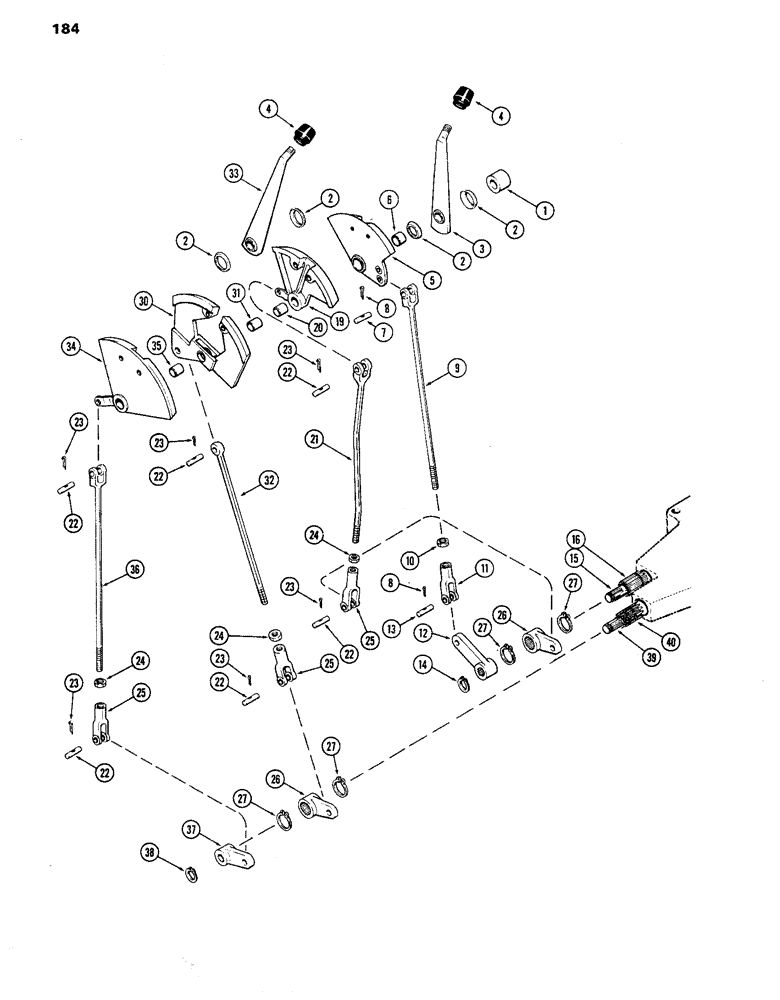

Запчасти Case IH 770 (184) - GEAR AND RANGE SHIFT LINKAGE, MECHANICAL SHIFT (06) - POWER TRAIN

1

A59664

SPACER

- range shift hand lever shaft

1шт.

2

A59662

WASHER

- gear & range shift hand lever

4шт.

3

A59661

LEVER

- hand, range shift

1шт.

4

A65699

KNOB

- hand levers (Replaces A65541 & A62078)

2шт.

5

A61862

QUADRANT

ASSY. - range shift hand lever, Includes: Ref. 6

1шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

7

A59258

PIN

- range shift linkage

1шт.

8

132-30

COTTER PIN,3/32" x 1 1/4"

PIN - split (Cotter), , clevis pin 3/32" x 1 1/4"

2шт.

9

A59665

ROD

- range shift (15")

1шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" N.F.)

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod end (3/8" N.F.)

1шт.

12

A59666

LEVER

- range shift

1шт.

13

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

14

A59594

RING

SNAP RING - retaining, range shift lever

1шт.

15

A59592

SHAFT

- control lever, internal range shift

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - external reverse shift lever (Order A59032)

1шт.

19

A61874

QUADRANT

ASSY. - reverse gear shift, Includes: Ref. 20

1шт.

20

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

21

A60372

ROD

- reverse, gear shift

1шт.

22

A59258

PIN

- gear shift linkage

6шт.

23

132-30

COTTER PIN,3/32" x 1 1/4"

PIN - split (Cotter), , gear shift linkage pin 3/32" x 1 1/4"

6шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- hex., yoke to rod (3/8" N.F.)

3шт.

25

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift rods (3/8")

3шт.

26

A64936

LEVER

- reverse and (1st-2nd) gear shift (Replaced A60369)

2шт.

27

B18208

SNAP RING,#100, Ext

reverse, 1st and 2nd gear shift #100, Ext

4шт.

30

A61869

QUADRANT

ASSY. - gear shift (1st & 2nd), Includes: Ref. 31

1шт.

31

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

- quadrant

1шт.

32

A60368

ROD - gear shift (15") (1st & 2nd)

1шт.

33

A60360

LEVER

- gear shift, hand

1шт.

34

A61864

QUADRANT

ASSY. - gear shift (3rd & 4th), Includes: Ref. 35

1шт.

35

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

36

A59665

ROD

- gear shift (3rd & 4th)

1шт.

37

A64935

LEVER

- gear shift (3rd & 4th) (Replaced A60363)

1шт.

38

A59594

RING

- retaining, gear shift lever

1шт.

39

A59591

SHAFT

- control lever, internal gear shift

1шт.

40

NSS

NOT SOLD SEPARAT

SHAFT - external gear shift lever (Order A58245)

1шт.
