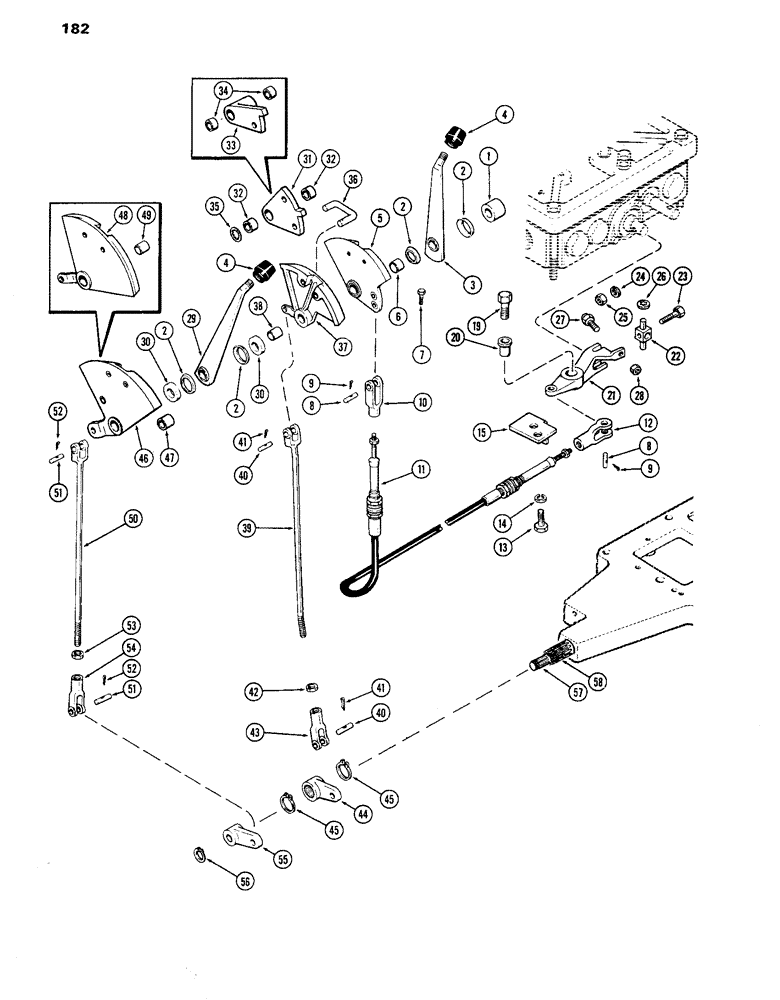

Запчасти Case IH 770 (182) - GEAR AND RANGE SHIFT LINKAGE, POWER SHIFT (06) - POWER TRAIN

1

A59664

SPACER

- power shift hand lever shaft

1шт.

2

A59662

WASHER

- power & range shift hand lever

4шт.

3

A59661

LEVER

- hand, power shift

1шт.

4

A65699

KNOB

- hand levers (Replaces A65541 & A62078)

2шт.

5

A61862

QUADRANT

ASSY. - hand lever, Includes: Ref. 6

1шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

7

A59463

BOLT

- control lever stop

2шт.

8

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Power shift yoke 3/8" x 1.060"

2шт.

9

132-269

PIN - cotter, clevis pin to yoke (3/32 x 3/4")

2шт.

10

A60661

YOKE

- power shift cable, upper

1шт.

11

A60659

CABLE

- power shift console control (26")

1шт.

12

A60663

YOKE

- power shift cable, lower

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket to valve cover Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

A60662

BRACKET

- cable, power shift

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Power shift lever to top cover Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

20

A59772

BUSHING

- power shift spool, operating lever

1шт.

21

A59771

LEVER

- operating, power shift spool

1шт.

22

A59150

LINK

- power shift spool operating

1шт.

23

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Link to spool Hex, 1/4"-20 x 1 1/4", G5

1шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

25-104

NUT,1/4"-20, G5

1шт.

26

A59773

RING

- retaining, power shift spool operating link

1шт.

27

A59771

LEVER

SCREW - adjusting, power shift spool

1шт.

28

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., adj. screw (5/16" N.C. jam)

1шт.

29

A60360

LEVER

- hand, range shift

1шт.

30

A60367

SPACER

- range shift quadrant (41/64 x 1-1/4 x 1/4")

2шт.

31

A64813

LEVER

ASSY. - lockout, reverse (Replaced A64585), Includes: Ref. 32, Start Serial: 8701503

1шт.

32

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- reverse lockout lever

2шт.

33

A64585

LEVER

ASSY. - lockout, reverse (Order A64813), Includes: Ref. 34, Start Serial: 8693001

1шт.

34

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- reverse lockout lever

2шт.

35

A64584

SNAP RING,#62, Ext

RING - snap, , lock, lever to stud #62, Ext, Start Serial: 8693001

1шт.

36

A64583

LINK

- lockout lever to quadrant, Start Serial: 8693001

1шт.

37

A61872

QUADRANT

ASSY. - range shift (2nd & 4th), Includes: Ref. 38

1шт.

38

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

39

A60373

ROD

- range shift (2nd & 4th)

1шт.

40

A59258

PIN

- range shift linkage, Start Serial: 8693001

2шт.

41

132-30

COTTER PIN,3/32" x 1 1/4"

PIN - split (Cotter), 3/32" x 1 1/4"

2шт.

42

25-116

NUT,Hex, 3/8"-24, G5

- hex., yoke to rod (3/8" N.F.)

1шт.

43

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod (3/8")

1шт.

44

A64936

LEVER

- range shift (2nd & 4th) (Replaced A60369)

1шт.

45

B18208

SNAP RING,#100, Ext

range shift lever, 1" dia. shaft #100, Ext

2шт.

46

A64811

QUADRANT

ASSY. - range shift (1st & 3rd) (Replaced A61867), Includes: Ref. 47, Start Serial: 8701503

1шт.

47

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

48

A61867

QUADRANT

ASSY. - range shift (1st & 3rd) (Order A64811), Includes: Ref. 49

1шт.

49

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

50

A59665

ROD

- range shift (1st & 3rd)

1шт.

51

A59258

PIN

- range shift linkage

2шт.

52

132-30

COTTER PIN,3/32" x 1 1/4"

PIN - split (Cotter), 3/32" x 1 1/4"

2шт.

53

25-116

NUT,Hex, 3/8"-24, G5

- hex., yoke to rod (3/8" N.F.)

1шт.

54

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod (3/8")

1шт.

55

A64935

LEVER

- range shift (1st & 3rd) (Replaced A60363)

1шт.

56

A59594

RING

SNAP RING - retaining, range shift lever

1шт.

57

A59594

RING

SHAFT - lever, internal range shift

1шт.

58

A58245

SHAFT

ASSY. - external range shift w/bushings

1шт.
