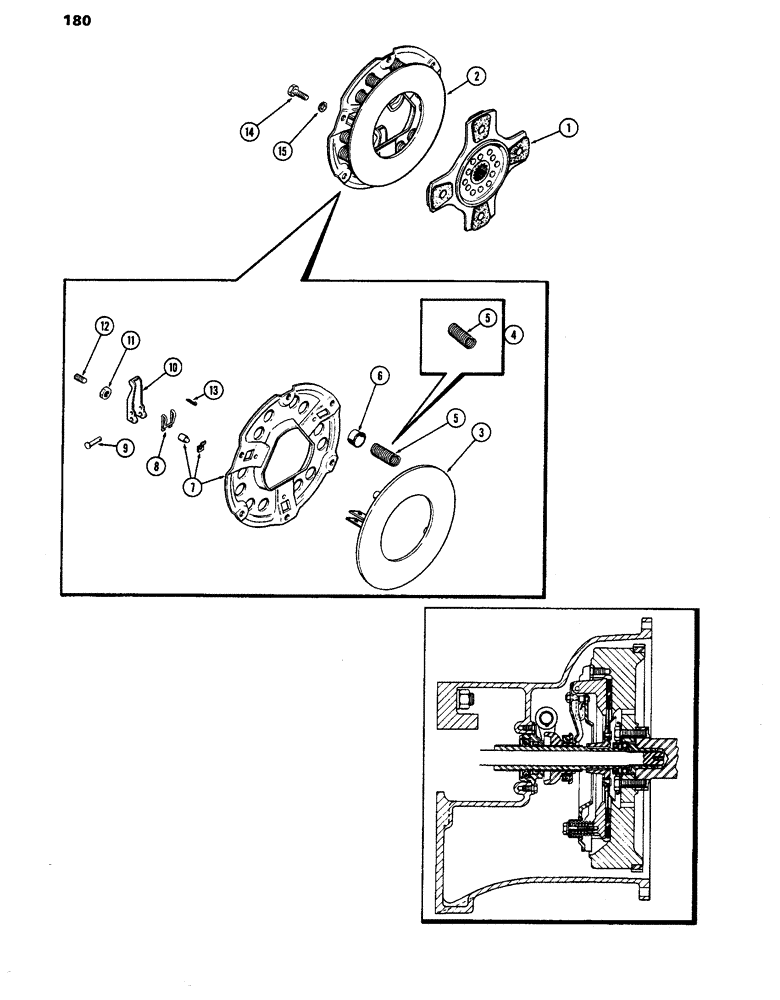

Запчасти Case IH 770 (180) - CLUTCH, MECHANICAL SHIFT (06) - POWER TRAIN

1

A34277

PLATE

PLATE ASSY. - 12" driven assy. (w/button type facing)

1шт.

1

1997842C1R

REMAN-CLUTCH DISC

Remanufactured Clutch Disc, 12 in., 16Tooth hub, 4 paddle, No damper assembly

1шт.

1

1997842C1C

CORE-CLUTCH DISC

Return Part Number

1шт.

2

A59589

COVER

COVER ASSY. - clutch (12"), Includes: Ref. 3 - 13

1шт.

2

AR59589

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 12 in

1шт.

2

AC59589

CORE-CLUTCH PLATE

Return Part Number

1шт.

2

AR34459

REMAN-CLUTCH PLATE

770 (S/N 8675001 & AFTER) (1/69-12/72); Reman for New P/N AR34459

1шт.

2

AC34459

CORE-CLUTCH PLATE

Return Part Number

1шт.

3

A7674

LARGE PLATE

PLATE, LARGE PLATE - clutch pressure

1шт.

4

A42222

KIT

KIT - clutch pressure springs, Includes: Ref. 5

1шт.

5

NSS

NOT SOLD SEPARAT

SPRINGS - clutch pressure (Order A42222)

12шт.

6

A7680

CUP

CUP - seat, pressure spring

12шт.

7

A7686

SPARE PART PLATE ASSY. - back

1шт.

8

A7678

SPRING

SPRING - torsion (Anti-Rattle)

3шт.

9

A7677

PIN

PIN - pivot, clutch release lever

3шт.

10

A7685

LEVER

LEVER ASSY. - clutch release, Includes: Ref. 11 and 12

3шт.

11

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

NUT, Jam, 7/16"- 20, G5, Adj. screw

1шт.

12

A7676

ADJUSTMENT SCREW,7/16" - 20 x 15/16"

SCREW - clutch release lever adjusting

3шт.

13

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Clutch release lever pin 3/32" x 5/8"

3шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, , Clutch plates to flywheel Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

15

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

6шт.
