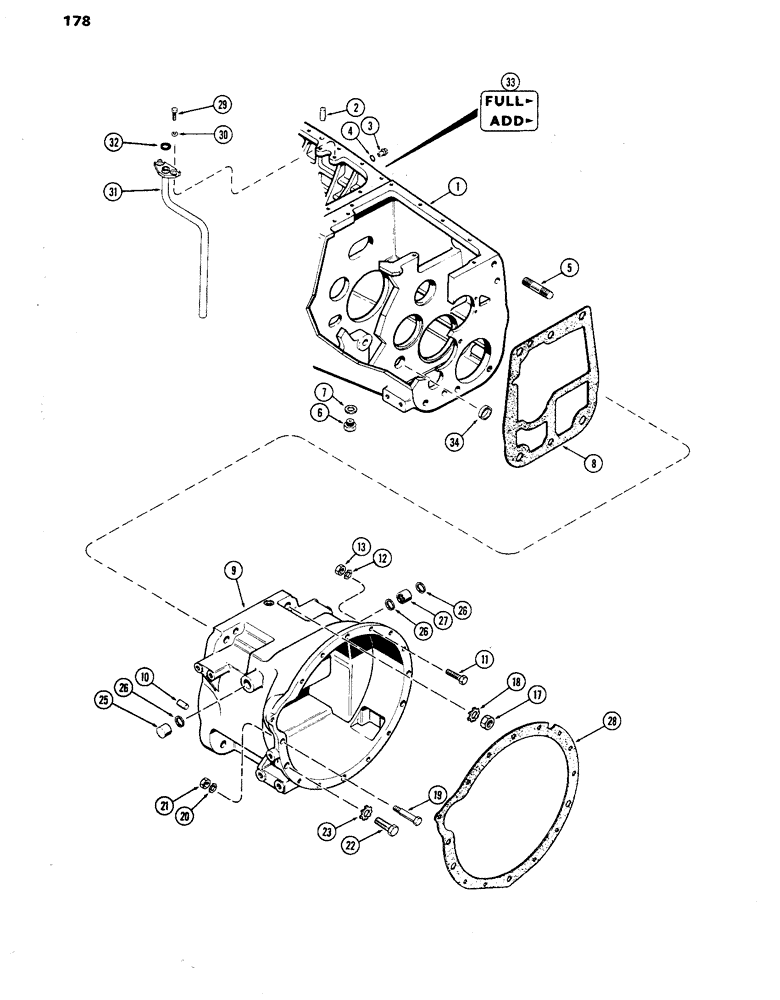

Запчасти Case IH 770 (178) - CLUTCH AND TRANSMISSION HOUSINGS, MECHANICAL SHIFT (06) - POWER TRAIN

1

A58971

HOUSING - transmission

1шт.

2

A7077

DOWEL

PIN - dowel, trans. hsg. to rear top cover (1-3/8 x 1/2")

2шт.

3

A58420

GAUGE

ASSY. - oil sight (glass), Includes: Ref. 4

2шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - sight glass

1шт.

5

A7073

STUD

- trans. hsg. to clutch hsg. (7/8" N.F. x 4")

4шт.

6

A14280

PLUG

- drain & fill, trans. hsg. (3/4")

3шт.

7

A58608

GASKET

- drain plug, trans. (49/64 x 1 x 5/64")

3шт.

8

A58973

GASKET

- clutch hsg. to trans. hsg.

1шт.

9

A58180

HOUSING - clutch

1шт.

10

A28269

PIN

- dowel, clutch hsg. to trans. hsg. (3/4 x 1-1/4")

2шт.

11

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Eng. to clutch housing Hex, 1/2"-13 x 1 5/8", G5

2шт.

11

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

Engine to clutch housing Hex, 1/2"-13 x 1 7/8", G5

3шт.

11

113-466

BOLT

- engine to clutch hsg. (1/2 x 2-1/4" N.C. hex.) (Gr. 5S)

1шт.

11

113-465

BOLT

- engine to clutch hsg. (1/2 x 2" N.C. hex.) (Gr. 5S)

5шт.

12

A34650

LOCK WASHER

- lock (1/2" external teeth, heavy duty)

11шт.

13

25-168

NUT,1/2"-13, G5, Hvy

- hex. (1/2" N.C.) (Heavy)

1шт.

17

25-1114

NUT,7/8"-14, G5

- hex. (7/8" N.F.)

4шт.

18

A57961

LOCK WASHER

- lock (7/8" external teeth, heavy duty)

4шт.

19

A61040

STEP BOLT

BOLT - dowel, engine to clutch hsg. (1/2 x 3" N.C. hex.)

1шт.

19

A61041

STEP BOLT

BOLT - dowel, engine to clutch hsg. (1/2 x 2-3/16" N.C. hex)

1шт.

20

A34650

LOCK WASHER

- lock (1/2 "external teeth, heavy duty)

2шт.

21

25-168

NUT,1/2"-13, G5, Hvy

- hex. (1/2" N.C.) (Heavy)

2шт.

22

113-748

BOLT

- engine to clutch hsg. (3/4 x 2-1/2" N.C. hex.) (Gr. 5S)

2шт.

23

A34651

LOCK WASHER

- lock (3/4" external teeth, heavy duty)

2шт.

25

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - needle, clutch throwout shaft (closed end)

1шт.

26

A28211

OIL SEAL

- oil, clutch throwout shaft (1 x 1-1/4 x 1/8")

3шт.

27

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle, clutch throwout shaft (open end)

1шт.

28

A58139

GASKET

- clutch, Serial Range: hsg.-engine

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

A58371

TUBE

- hydraulic fluid return

1шт.

32

A32343

SEAL

- hyd. fluid return tube (47/64 x 1-13/64 x 13/64")

1шт.

33

321-1642

DECAL

- trans. oil level

1шт.

34

A58620

PLUG,Cup, 3/4", Stainless

- cup (3/4")

1шт.
