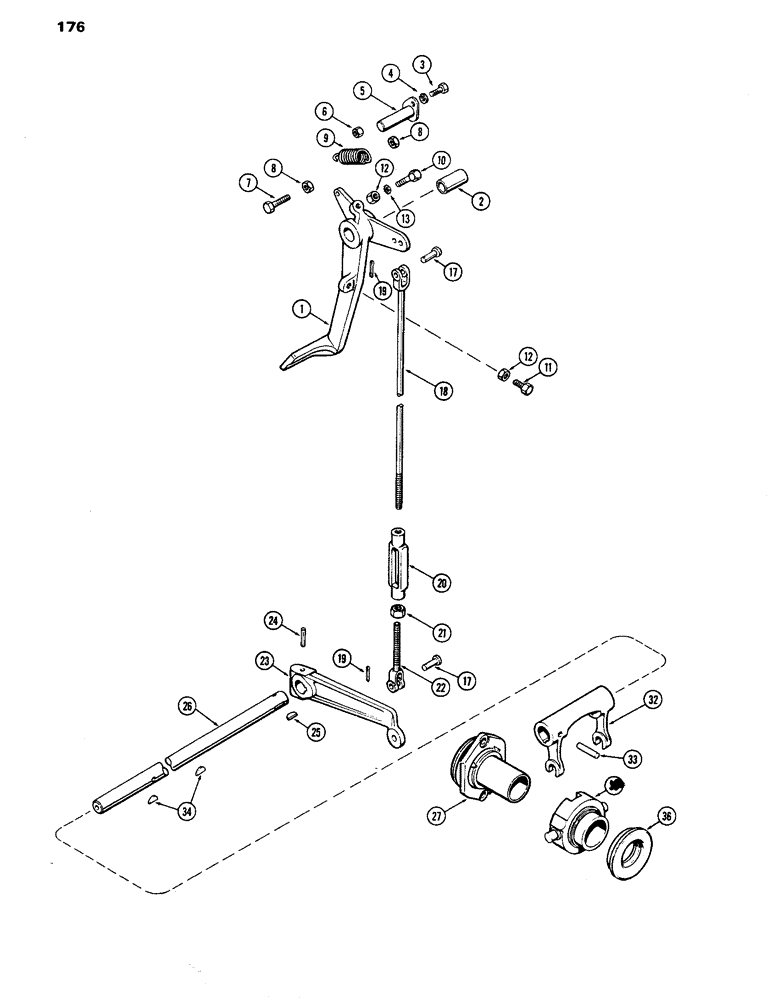

Запчасти Case IH 770 (176) - CLUTCH RELEASE SYSTEM, MECHANICAL SHIFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A60300
PEDAL
ASSY. - foot clutch, Includes: Ref. 2
1шт.
2
A59475
BUSHING
- clutch pedal
1шт.
3
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
4
92-5
LOCK WASHER,5/16"
1шт.
5
A60305
SHAFT
- pivot, clutch pedal
1шт.
6
9635082
NUT,5/16" - 18, Gr 5
- hex. (5/16" N.C.)
1шт.
7
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
Spring Hex, 3/8"-16 x 1 3/4", G5, Serial Range: -8693001
1шт.
8
25-146
JAM NUT,Jam, 3/8"-16, G5
- jam, 3/8" N.C. hex., Serial Range: -8693001
2шт.
9
A59470
SPRING
- tension, clutch return
1шт.
10
A59472
BOLT
- stop, clutch pedal
1шт.
11
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Clutch pedal shaft Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
12
25-145
JAM NUT,Jam, 5/16"-18, G5
- hex. (5/16" N.C. jam)
2шт.
13
193-9
LOCK WASHER,Ext Tooth, 5/16"
WASHER, LOCK, Ext Tooth, 5/16"
1шт.
17
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Upper & lower links 3/8" x 1.060"
2шт.
18
A60310
LINK
- upper, clutch adjusting
1шт.
19
132-26
COTTER PIN
PIN - split (Cotter), 3/32" x 3/4"
2шт.
20
A60303
TURNBUCKLE
- (3/8") clutch adjusting links
1шт.
21
25-106
NUT,3/8"-16, G5
- hex., lower link (3/8" N.C.)
1шт.
22
A60313
LINK
- lower, clutch adjusting
1шт.
23
A59191
LEVER
- foot clutch release
1шт.
24
138-160
LOCK PIN,5/16" x 2", Slotted
PIN, , clutch release lever 5/16" x 2", Slotted
1шт.
25
126-24
WOODRUFF KEY,#15, 1/4" x 1"
Clutch release lever #15, 1/4" x 1"
1шт.
26
A62484
SHAFT
- clutch release (Replaces A61220)
1шт.
27
A61166
TUBE
CARRIER ASSY. - range input shaft bearing
1шт.
32
A58981
YOKE - clutch release shaft
1шт.
33
138-158
LOCK PIN,5/16" x 1 5/8", Slotted
PIN, , clutch release yoke 5/16" x 1 5/8", Slotted
1шт.
34
126-24
WOODRUFF KEY,#15, 1/4" x 1"
Clutch release shaft #15, 1/4" x 1"
2шт.
35
A59061
CARRIER
ASSY. - clutch release bearing, Includes: Ref. 36
1шт.
36
A59043
BALL BEARING,2.25" ID x 3.812" OD x 0.811"
BEARING - clutch release
1шт.
Выбрано товаров: 29
