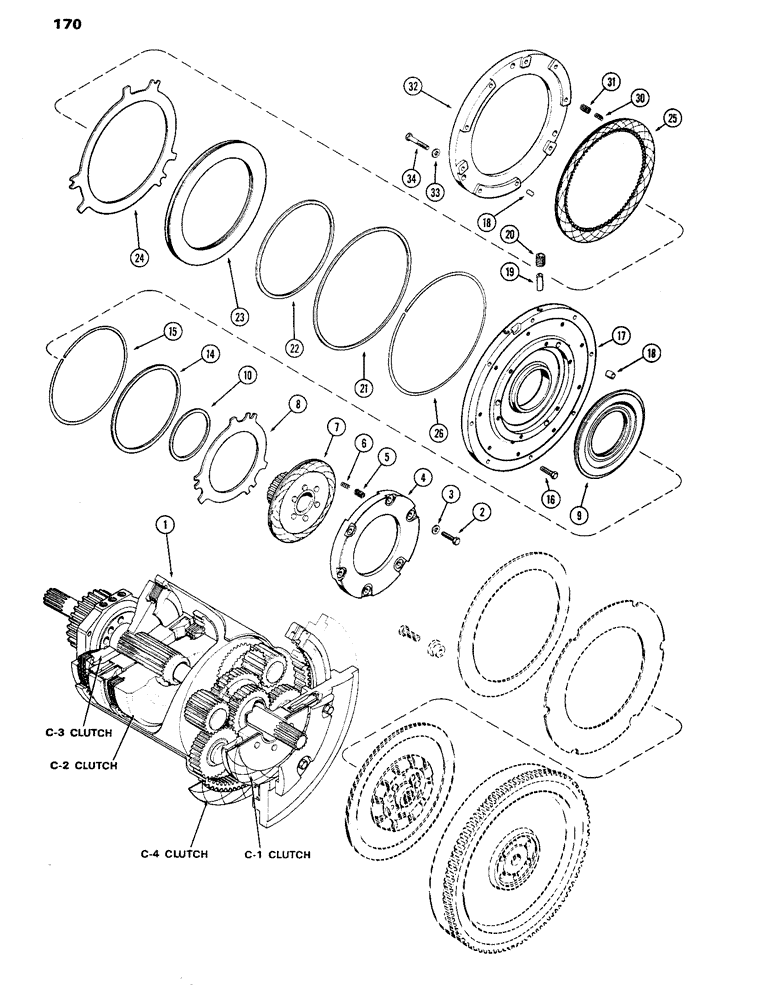

Запчасти Case IH 770 (170) - C-1 AND C-4 CLUTCHES, POWER SHIFT (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. - powershift & planetary (Includes all Ref. on Fig. 170-174), Includes: Ref. 2 - 34

1шт.

2

13-245

BOLT - (3/8 x 1-1/2" N.C. hex.) (C-1 Clutch)

6шт.

3

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- steel (7/16 x 3/4 x 1/32") (Replaced A59025)

6шт.

4

A58390

PLATE

- reaction (C-1 Clutch)

1шт.

5

A58391

SPRING

- return, outer (C-1 Clutch) (3/4" free length) (17/32" O.D.)

3шт.

6

A60596

SPRING

- return, inner (C-1 Clutch) (3/4" free length) (23/64" O.D.)

3шт.

7

A62418

LARGE PLATE

PLATE ASSY. - sun gear and clutch (C-1 Clutch)

1шт.

8

A65524

PLATE

- steel (C-1 Clutch) (Replaces A58392)

1шт.

9

A58380

PISTON

- (C-1 Clutch)

1шт.

10

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal (approx. 4-1/2" I.D.) (Teflon lip) (C-1 Clutch)

1шт.

14

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external (approx. 8" I.D.) (Teflon lip) (C-1 Piston)

1шт.

15

A62642

ELECTRICAL WIRE

WIRE - (C-1 piston seal) (use w/A58381 seal)

1шт.

16

113-245

X

BOLT - (C-1 & C-4 Clutch) (3/8 x 1-1/2" N.C. hex.)

8шт.

17

A59051

CARRIER

ASSY. - piston (C-1 & C-4 Clutch), Includes: Ref. 18

1шт.

18

A58059

PIN

- reaction plate (C-1 & C-4 Clutch)

6шт.

19

A58049

TUBE

- oil, piston (C-1 & C-4 Clutch)

2шт.

20

A58050

PLUG

- piston oil tube (C-1 & C-4 Clutch)

2шт.

21

A58396

SEAL,318.39mm ID x 3.23mm Thk

- external, piston (approx. 12-1/2" I.D.) (Teflon lip) (C-4 Clutch)

1шт.

22

A58397

SEAL,227.13mm ID x 3.23mm Thk

- internal, piston (approx. 9" I.D.) (Teflon lip) (C-4 Clutch)

1шт.

23

A58395

PISTON

- (C-4 Clutch)

1шт.

24

A58056

PLATE

- steel (C-4 Clutch)

1шт.

25

A62563

PLATE

- sintered (C-4 Clutch)

1шт.

26

A62643

ELECTRICAL WIRE

WIRE - (C-4 piston seal) (use w/A58396 seal)

1шт.

30

A60596

SPRING

- return, inner (C-4 Clutch) (3/4" free length) (23/64" O.D.)

3шт.

31

A58391

SPRING

- return, outer (C-4 Clutch) (3/4" free length) (17/32" O.D.)

3шт.

32

A58394

PLATE

- reaction (C-4 Clutch)

1шт.

33

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- steel (7/16 x 3/4 x 1/32") (Replaced A59025)

9шт.

34

113-244

X

BOLT - reaction plate (3/8 x 2-1/2" N.C. hex.)

9шт.
