Запчасти Case IH 770 (164) - FRONT END WEIGHTS (05) - STEERING

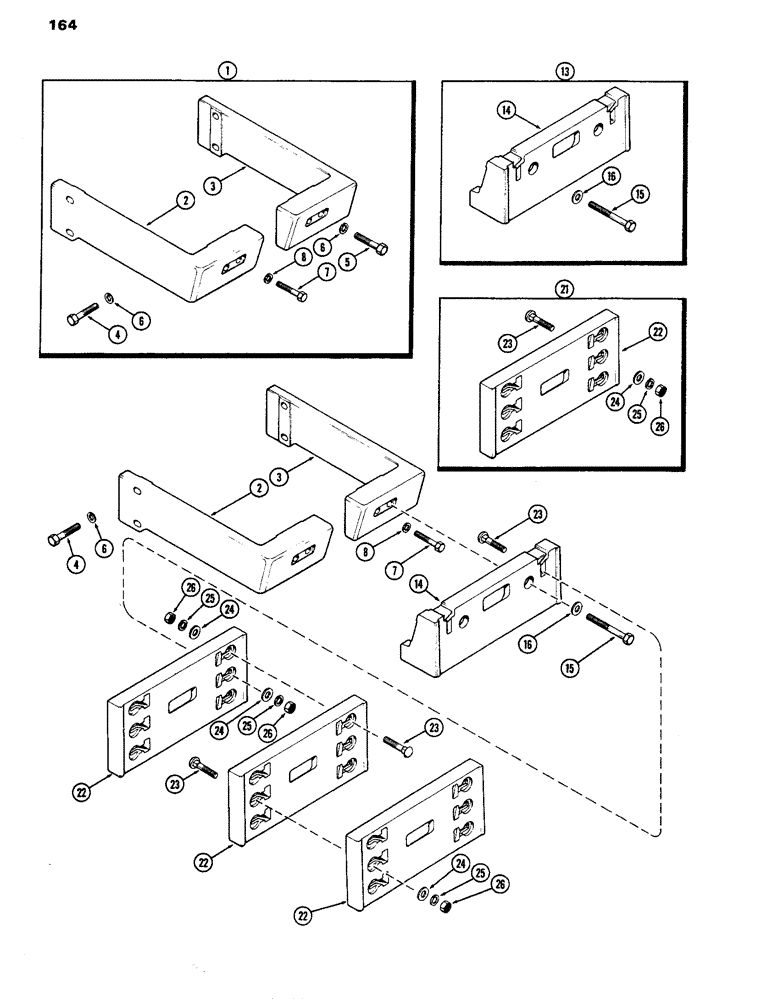

Схема запчастей Case IH 770 - (164) - FRONT END WEIGHTS (05) - STEERING
4
8
25
23
23
23
22
22
24
24
2
23
21
25
5
15
2
26
3
3
22
26
22
25
1
6
15
24
8
25
24
26
26
6
4
14
13
16
6
14
7
7
16

Артикул

Название

Примечание

Количество

1

A60536

WEIGHT

KIT - front end wrapper (Mach. Item), Includes: Ref. 2 - 8

1шт.

2

A59352

WEIGHT

- wrapper, front end (R.H.) (185 lbs.) (Mach. Item)

1шт.

3

A59353

WEIGHT

- wrapper, front end (L.H.) (185 lbs.) (Mach. Item)

1шт.

A62538

KIT - hardware (Not Illust.), Includes: Ref. 4 - 8

1шт.

4

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- (3/4 x 2-3/4" N.C. hex.) (zinc plated)

4шт.

5

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

7

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- (5/8 x 4" N.C. hex.) (zinc plated)

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

A60537

WEIGHT

KIT - adapter, front end wrapper (Mach. Item) (Used w/A60536 weight kit) (one adapter only per tractor), Includes: Ref. 14 - 16

1шт.

14

A59354

ADAPTER

- wrapper weight (36 lbs.) (Mach. Item)

1шт.

A62540

KIT - hardware (Not Illust.), Includes: Ref. 15 and 16

1шт.

15

A59351

BOLT

- adapter to front end (3/4 x 7" N.C. hex.)

2шт.

16

195-46

WASHER,3/4" x 1 3/4" x .148"

- plain (3/4")

2шт.

21

A60538

WEIGHT

KIT - additional, front end wrapper (Used w/A60537 weight kit) (Mach. Item)

1шт.

22

A59355

WEIGHT

- additional front end (100 lbs.) (Mach. Item)

1шт.

A62539

KIT - hardware (Not Illust.), Includes: Ref. 23 - 26

1шт.

23

111-708

CARRIAGE BOLT,Short NK, 3/4"-10 x 4", G2

BOLT - (3/4 x 4" N.C. rd. hd. sq. nk.) (zinc plated)

2шт.

24

195-46

WASHER,3/4" x 1 3/4" x .148"

- plain (3/4")

2шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

25-1012

NUT,3/4"-10, G5

2шт.

Выбрано товаров: 21
