Запчасти Case IH 770 (156) - FRONT AXLE TIE RODS, 1ST USED TRACTOR S/N 8693001, 53" TO 73" TREAD, 60" TO 88" THREAD (05) - STEERING

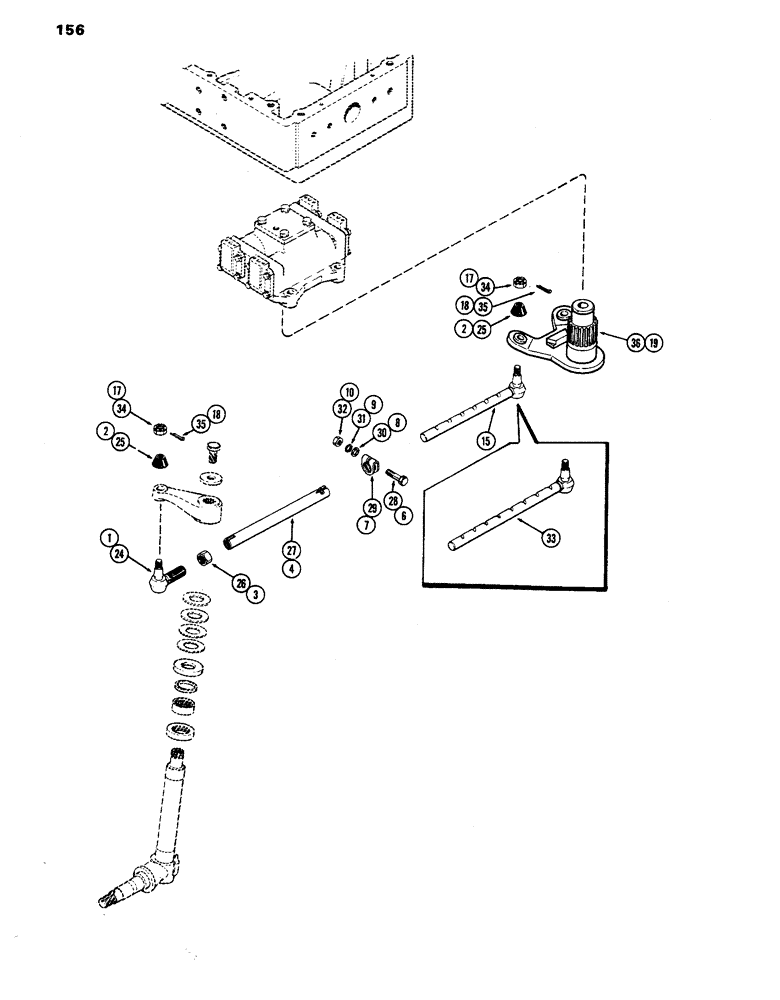

Схема запчастей Case IH 770 - (156) - FRONT AXLE TIE RODS, 1ST USED TRACTOR S/N 8693001, 53" TO 73" TREAD, 60" TO 88" THREAD (05) - STEERING
1
34
8
25
28
17
26
25
10
3
33
17
4
34
24
7
9
35
19
27
29
36
35
2
31
32
30
6
2
18
18
15

Артикул

Название

Примечание

Количество

1

A41512

ROD

END - tie rod

2шт.

2

A41515

SEAL

- end, tie rod

4шт.

3

A41511

NUT

- jam, 1"-16, R.H. thread

2шт.

4

A59657

TUBE

- tie rod (14-11/16" long) (53 to 73" tread)

2шт.

6

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- clamp, 1/2 x 2-1/2" N.C. hex.

2шт.

7

A41561

CLAMP

- tie rod

2шт.

8

95-8

WASHER,1/2"

- plain (9/16 x 1-3/8 x 7/64") 1/2"

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

15

A59656

ROD

- tie (6 notches) (53 to 73" tread)

2шт.

17

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., 5/8" N.F., slotted

4шт.

18

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

19

A64507

STEERING ARM

ARM - center steering (Part of actuator Fig.149A)

1шт.

24

A41512

ROD

END - tie rod, (60" to 88" tread)

2шт.

25

A41515

SEAL

- end, tie rod, (60" to 88" tread)

4шт.

26

A41511

NUT

- jam (1"-16, R.H. thread), (60" to 88" tread)

2шт.

27

A59659

TUBE

- tie rod (18-3/8" long) (60 to 88" tread)

2шт.

28

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- clamp (1/2 x 2-1/2" N.C. hex.), (60" to 88" tread)

2шт.

29

A41561

CLAMP

- tie rod, (60" to 88" tread)

2шт.

30

95-8

WASHER,1/2"

- plain (9/16 x 1-3/8 x 7/64"), (60" to 88" tread) 1/2"

2шт.

31

92-8

LOCK WASHER,1/2"

(60" to 88" tread) 1/2"

2шт.

32

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.), (60" to 88" tread)

2шт.

33

A59658

STEERING TIE-ROD

ROD - tie (8 notches) (60 to 88" tread)

2шт.

34

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex. (5/8" N.F., slotted), (60" to 88" tread)

4шт.

35

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), (60" to 88" tread) 1/8" x 1 1/8"

4шт.

36

A64507

STEERING ARM

ARM - center steering (Part of actuator, Fig. 149A), (60" to 88" tread)

1шт.

Выбрано товаров: 26
