Запчасти Case IH 770 (154) - FRONT AXLE TIE RODS, USED PRIOR TO TRACTOR S/N8693001, 53" TO 73" TREAD, 60" TO 88" THREAD (05) - STEERING

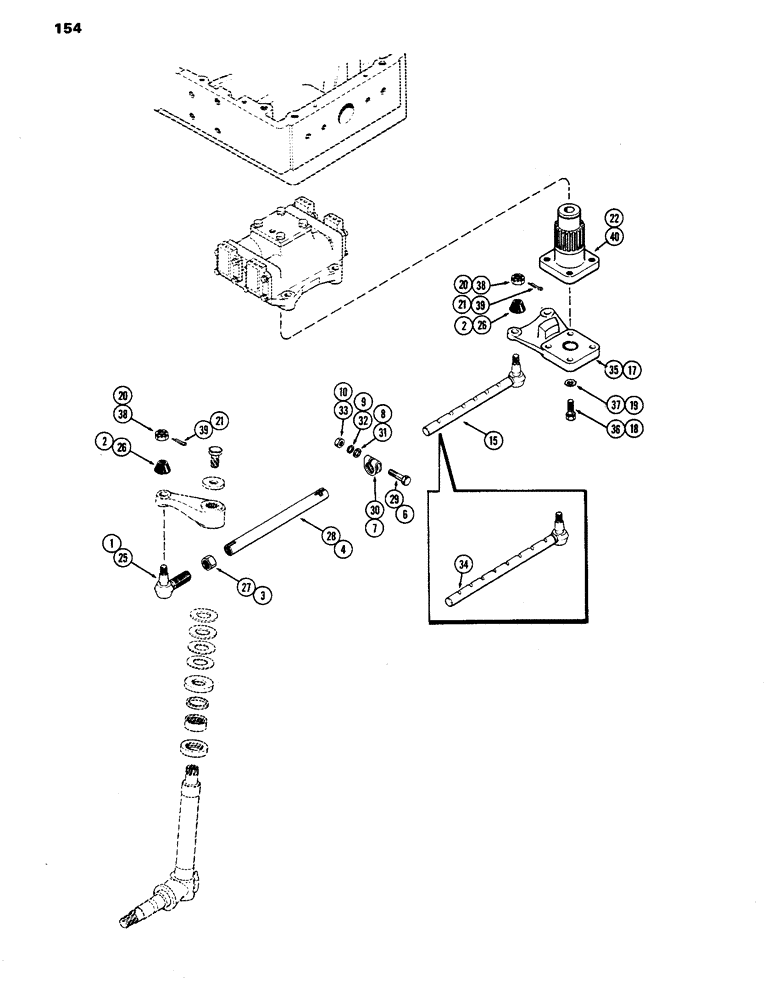

Схема запчастей Case IH 770 - (154) - FRONT AXLE TIE RODS, USED PRIOR TO TRACTOR S/N8693001, 53" TO 73" TREAD, 60" TO 88" THREAD (05) - STEERING
22
25
15
39
26
7
2
3
21
34
33
26
20
28
6
30
35
29
8
27
4
40
10
31
39
19
38
36
21
9
37
38
20
1
17
32
18
2

Артикул

Название

Примечание

Количество

1

A41512

ROD

END - tie rod

2шт.

2

A41515

SEAL

- end, tie rod

4шт.

3

A41511

NUT

- jam, 1"-16, R.H. thread

2шт.

4

A59657

TUBE

- tie rod (14-11/16" long) (53 to 73" tread)

2шт.

6

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- clamp, 1/2 x 2-1/2" N.C. hex.

2шт.

7

A41561

CLAMP

- tie rod

2шт.

8

95-8

WASHER,1/2"

- plain (9/16 x 1-3/8 x 7/64") 1/2"

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

15

A59656

ROD

- tie (6 notches) (53 to 73" tread)

2шт.

17

A59652

ARM

- center steering

1шт.

A59652 arm & A60214 spindle can be replaced by A64507 spindle only tractors w/adjustable axles.

1шт.

18

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

19

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

20

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., 5/8" N.F., slotted

4шт.

21

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

22

A60214

SPINDLE - upper (Part of actuator, Fig. 148)

1шт.

A59652 arm & A60214 spindle can be replaced by A64507 spindle only tractors w/adjustable axles.

1шт.

25

A41512

ROD

END - tie rod, (60" to 88" tread)

2шт.

26

A41515

SEAL

- end, tie rod, (60" to 88" tread)

4шт.

27

A41511

NUT

- jam (1"-16, R.H. thread), (60" to 88" tread)

2шт.

28

A59659

TUBE

- tie rod (18-3/8" long) (60 to 88" tread)

2шт.

29

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- clamp (1/2 x 2-1/2" N.C. hex.), (60" to 88" tread)

2шт.

30

A41561

CLAMP

- tie rod, (60" to 88" tread)

2шт.

31

95-8

WASHER,1/2"

- plain (9/16 x 1-3/8 x 7/64") (60" to 88" tread) 1/2"

2шт.

32

92-8

LOCK WASHER,1/2"

(60" to 88" tread) 1/2"

2шт.

33

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.), (60" to 88" tread)

2шт.

34

A59658

STEERING TIE-ROD

ROD - tie (8 notches) (60 to 88" tread)

2шт.

35

A59652

ARM

- center steering, (60" to 88" tread)

1шт.

A59652 arm & A60214 spindle can be replaced by A64507 spindle only tractors w/adjustable axles.

1шт.

36

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(60" to 88 " tread) Hex, 5/8"-18 x 1 3/4", G5

4шт.

37

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", 60" to 88" tread

4шт.

38

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex. (5/8" N.F., slotted), (60" to 88" tread)

4шт.

39

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), (60" to 88" tread) 1/8" x 1 1/8"

4шт.

40

A60214

SPINDLE - upper (Part of actuator, Fig. 148), (60" to 88" tread)

1шт.

A59652 arm & A60214 spindle can be replaced by A64507 spindle only tractors w/adjustable axles.

1шт.
