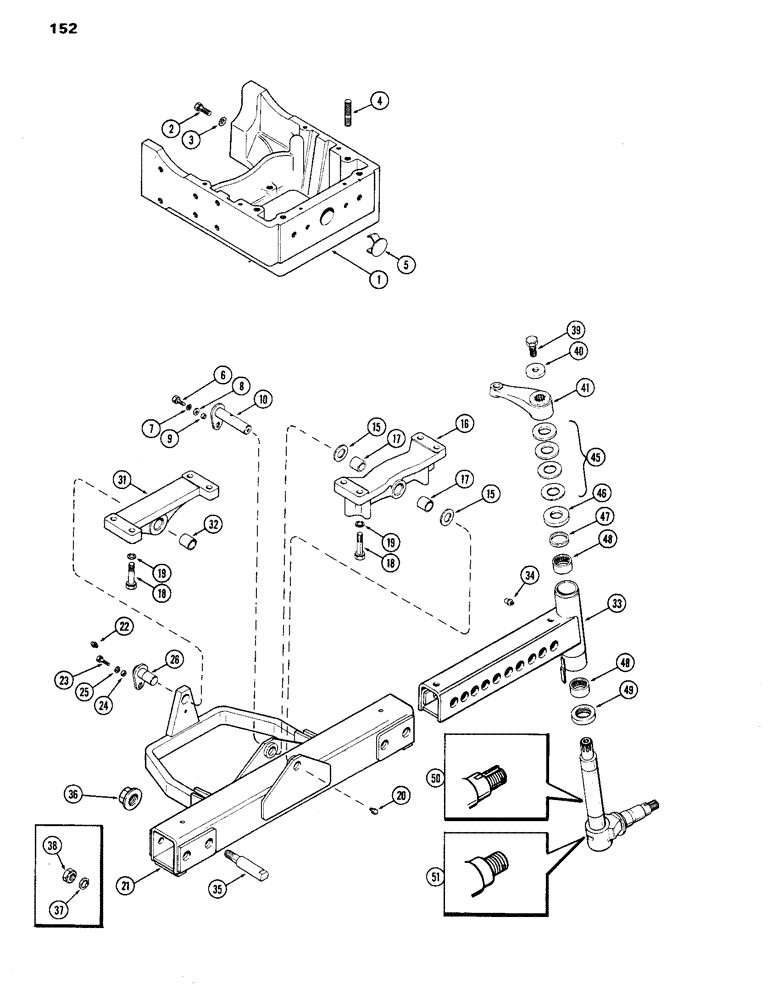

Запчасти Case IH 770 (152) - ADJUSTABLE FRONT AXLE, 60" TO 88" TREAD (05) - STEERING

1

A59158

SUPPORT

- front end axle

1шт.

2

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Front end support Hex, 3/4"-10 x 2 1/2", G5

4шт.

3

A34651

LOCK WASHER

- lock (3/4" external teeth)

4шт.

4

A59423

STUD - grille (3/4 x 3-45/64") (Special)

4шт.

5

A35216

COVER

PLUG - (2-1/4" diameter)

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

195-25

WASHER,3/8"

- (13/32 x 13/16 x 5/64")

1шт.

9

A59660

SPACER

- front axle pivot pin

1шт.

10

A60568

PIN,31.67mm OD x 158.5mm L

- pivot, front axle

1шт.

15

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

- thrust, front axle pivot pin

2шт.

16

A62028

PACKAGE, REPAIR

SUPPORT ASSY. - front axle pivot, Includes: Ref. 17

1шт.

17

A59613

BUSHING,31.7mm ID x 38.18mm OD x 32mm L

- (1-1/4 x 1-1/2 x 1-1/4")

2шт.

18

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

Support to front end casting Hex, 3/4"-10 x 2 3/4", G5

8шт.

19

492-12

WASHER - lock (3/4")

8шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., straight)

1шт.

21

A60592

AXLE ASSY. - center section, Includes: Ref. 22 - 26

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., straight)

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

24

A59660

SPACER

- pivot pin (13/32 x 9/16 x 9/32")

1шт.

25

195-25

WASHER,3/8"

- (13/32 x 13/16 x 5/64")

1шт.

26

A59628

PIN

- pivot, rear support

1шт.

31

A59614

SUPPORT

ASSY. - rear, axle pivot, Includes: Ref. 32

1шт.

32

A59615

BUSHING,31.81mm ID x 38.2mm OD x 38.3mm L

- (1-1/4 x 1-1/2 x 1-1/2")

1шт.

33

A62313

SHAFT

AXLE - end section (L.H.) (10 holes)

1шт.

33

A62312

SHAFT

AXLE - end section (R.H.) (10 holes)

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., straight)

2шт.

35

A64756

STEP BOLT

BOLT - shoulder, end section to center section (Replaced A59172)

4шт.

36

A65435

LOCK NUT

- flanged, two-way lock (Replaced A59649)

4шт.

37

95-14

WASHER,7/8"

- (15/16 x 2-1/4 x 11/64") (used w/A59649)

4шт.

38

A59649

FASTENER

NUT - two-way lock (7/8" N.C.) (Order A65435)

4шт.

39

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Front wheel spindle Hex, 3/4"-10 x 1 1/2", G5

2шт.

40

A65598

WASHER

- front wheel spindle (Replaced A59653)

2шт.

41

A57323

ARM

- steering, front wheel (R.H.)

1шт.

41

A57322

ARM

- steering, front wheel (L.H.)

1шт.

45

A24639

SHIM,.1345" Thk

Spindle (#10 gauge) .1345" Thk

1шт.

45

A24642

SHIM,.0598" Thk

Spindle (#16 gauge) .0598" Thk

1шт.

45

A24643

SHIM,.0359" Thk

Spindle (#20 gauge) .0359" Thk

1шт.

45

A24645

SHIM,.0149" Thk

Spindle (#28 gauge) .0149" Thk

1шт.

46

A7849

GUARD

SHIELD - dust, spindle, upper

2шт.

47

A57273

OIL SEAL

- oil, spindle, upper (2 x 2-3/8 x 3/16")

2шт.

48

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, spindle, lower & upper

4шт.

49

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, spindle, lower

2шт.

50

A62316

SPINDLE

- wheel (w/groove on front wheel spindle) (See Inset), Serial Range: -8693001

2шт.

51

A62915

SPINDLE

- wheel (w/o groove on front wheel spindle) (See Inset), Start Serial: 8693001

2шт.
