Запчасти Case IH 770 (149A) - A64504 STEERING ACTUATOR, WITH DUAL FRONT WHEEL, 1ST USED TRACTOR S/N 8693001 (05) - STEERING

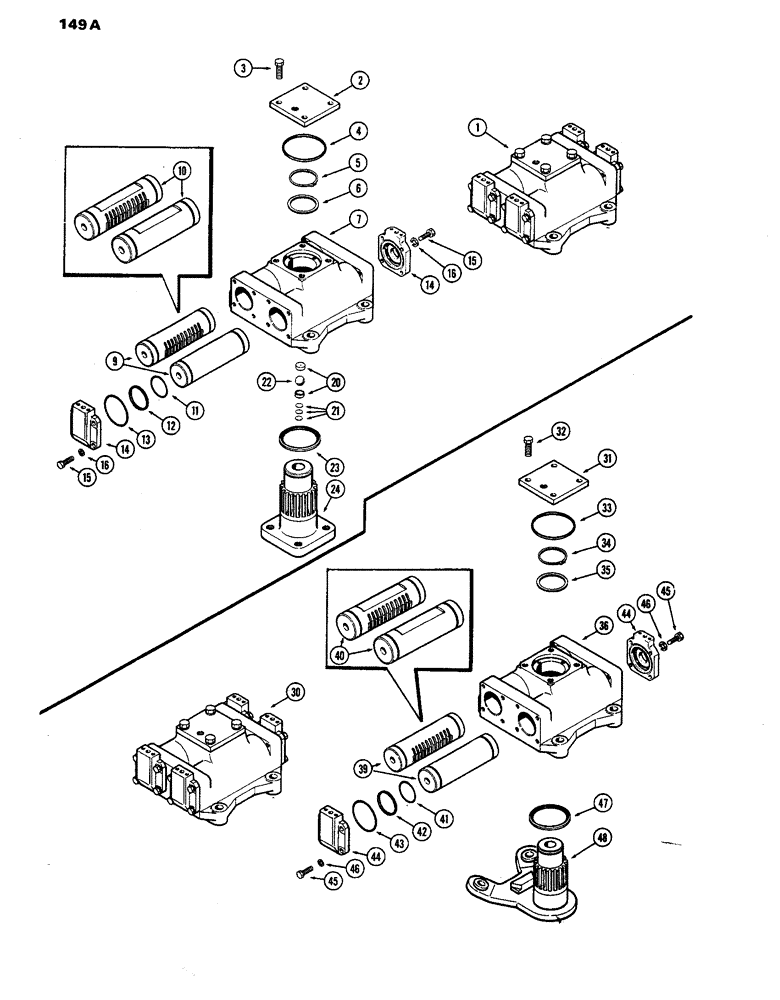

Схема запчастей Case IH 770 - (149A) - A64504 STEERING ACTUATOR, WITH DUAL FRONT WHEEL, 1ST USED TRACTOR S/N 8693001 (05) - STEERING
15
4
21
1
15
45
41
20
42
23
40
13
3
6
39
14
30
45
47
9
10
12
5
44
48
14
36
24
44
11
35
16
16
43
2
22
32
46
33
34
46
7
31

Артикул

Название

Примечание

Количество

1

A64504

ACTUATOR

ASSY. - complete, Includes: Ref. 2 - 24

1шт.

2

A60218

COVER

- top, housing

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

A60219

SEALING RING

"O" RING - cover seal (4 x 4-17/64 x 9/64")

1шт.

Part of seal kit P/N A42399

1шт.

5

A60216

SNAP RING,#250, Ext

RING - snap, , spindle #250, Ext

1шт.

6

A60215

WASHER

- thrust, spindle

1шт.

7

A64506

HOUSING - actuator

1шт.

9

A64908

PISTON

- actuator (Replaced A59285), Start Serial: 8703844

2шт.

10

A59585

PISTON - actuator (Order A64908), Serial Range: -8703844

2шт.

11

A60212

O-RING

"O" RING - piston (1-5/16 x 2-1/8 x 3/32")

4шт.

Part of seal kit P/N A42399

1шт.

12

A60213

RING

- seal, piston

4шт.

Part of seal kit P/N A42399

1шт.

13

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - cover seal (2-7/8 x 3-1/8 x 1/8")

4шт.

Part of seal kit P/N A42399

1шт.

14

A59533

COVER

- end

4шт.

15

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex.

16шт.

16

92-6

LOCK WASHER,3/8"

16шт.

20

A60217

SEAT

- ball, spindle

2шт.

21

A34849

SHIM,.0105" Thk

Ball seat .0105" Thk

1шт.

21

A34390

SHIM,.0329" Thk

Ball seat .0329" Thk

1шт.

21

A34391

SHIM,.0149" Thk

Ball seat .0149" Thk

1шт.

22

211-21

BALL

- steel (1" dia.)

1шт.

23

A57658

OIL SEAL

- oil, spindle (3-1/4 x 4-1/4 x 3/8")

1шт.

Part of seal kit P/N A42399

1шт.

24

A60214

SPINDLE - actuator

1шт.

A42399

SEAL

KIT - seal, includes: Ref. 4, 11, 12, 13 and 23

1шт.

30

A64505

ACTUATOR

ASSY. - complete, Includes: Ref. 31 - 48, A64505 steering, with adjustable front axle, Start Serial: 8693001

1шт.

31

A60218

COVER

- top, housing, A64505 steering actuator, with adjustable front axle, Start Serial: 8693001

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

A64505 steering actuator, with adjustable front axle Hex, 1/2"-13 x 1 1/2", G5, Full Thd, Start Serial: 8693001

4шт.

33

A60219

SEALING RING

"O" RING - cover seal (4 x 4-17/64 x 9/64"), A64505 steering actuator, with adjustable front axle, Start Serial: 8693001

1шт.

Part of seal kit P/N A42399

1шт.

34

A60216

SNAP RING,#250, Ext

RING - snap, , spindle, A64505 steering actuator, with adjustable front axle #250, Ext, Start Serial: 8693001

1шт.

35

A60215

WASHER

- thrust, spindle, A64505 steering actuator, with adjustable front axle, Start Serial: 8693001

1шт.

36

A64506

HOUSING - actuator, A64505 steering, with adjustable front axle, Start Serial: 8693001

1шт.

39

A64908

PISTON

- actuato, (Replaced A59285), A64505 steering, with adjustable front axle, Start Serial: 8693001

2шт.

40

A59285

PISTON

- actuator, (Order A64908), A64505 steering, with adjustable front axle, Start Serial: 8693001

2шт.

41

A60212

O-RING

"O" RING - piston (1-5/16 x 2-1/8 x 3/32"), A64505 steering actuator, with adjustable front axle, Start Serial: 8693001

4шт.

Part of seal kit P/N A42399

1шт.

42

A60213

RING

- seal, piston, A64505 steering actuator, with adjustable front axle, Start Serial: 8693001

4шт.

Part of seal kit P/N A42399

1шт.

43

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - cover seal (2-7/8 x 3-1/8 x 1/8"), A64505 steering actuator, with adjustable front axle, Start Serial: 8693001

4шт.

Part of seal kit P/N A42399

1шт.

44

A59533

COVER

- end, A64505 steering actuator, with adjustable front axle, Start Serial: 8693001

4шт.

45

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex., A64505 steering actuator, with adjustable front axle, Start Serial: 8693001

16шт.

46

92-6

LOCK WASHER,3/8"

A64505 steering actuator, with adjustable front axle 3/8", Start Serial: 8693001

16шт.

47

A57658

OIL SEAL

- oil spindle (3-1/4 x 4-1/4 x 3/8"), A64505 steering actuator, with adjustable front axle, Start Serial: 8693001

1шт.

Part of seal kit P/N A42399

1шт.

48

A64507

STEERING ARM

SPINDLE - actuator, A64505 steering, with adjustable front axle, Start Serial: 8693001

1шт.

A42399

SEAL

KIT - Includes: 33, 41, 42, 43 and 47, A64505 steering actuator, with adjustable front axle, Start Serial: 8693001

1шт.
