Запчасти Case IH 770 (148) - A60208 STEERING ACTUATOR, USED PRIOR TO TRACTOR S/N 8693001 (05) - STEERING

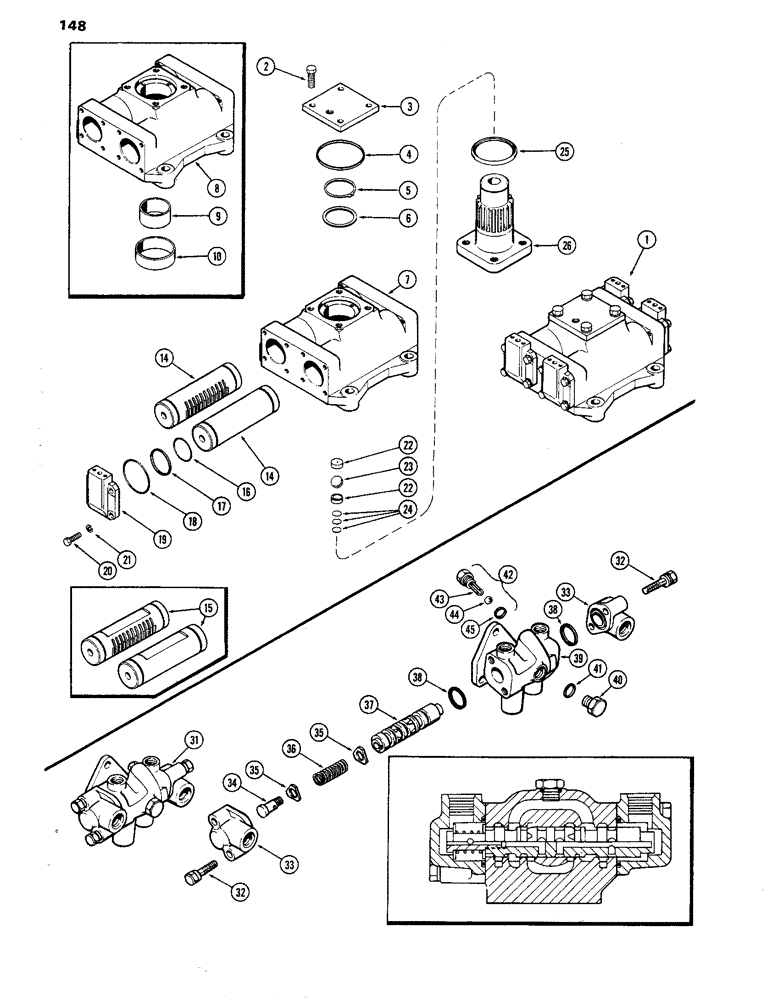

Схема запчастей Case IH 770 - (148) - A60208 STEERING ACTUATOR, USED PRIOR TO TRACTOR S/N 8693001 (05) - STEERING
36
42
20
8
14
31
1
23
15
37
38
6
10
35
5
17
38
45
14
21
22
33
32
3
16
9
40
26
25
39
34
35
41
19
18
7
2
24
33
4
43
22
32
44

Артикул

Название

Примечание

Количество

1

A60208

ACTUATOR

ASSY. - steering (Order A64504), Includes: Ref. 2 - 26

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

A60218

COVER

- steering actuator

1шт.

4

A60219

SEALING RING

"O" RING - seal (4 x 4-17/64 x 9/4")

1шт.

Part of seal kit P/N A42399

1шт.

5

A60216

SNAP RING,#250, Ext

RING - snap, #250, Ext

1шт.

6

A60215

WASHER

- thrust

1шт.

7

A64506

HOUSING - actuator (Replaced A60209)

1шт.

8

A60209

HOUSING

ASSY. - steering actuator (Order A64506), Includes: Ref. 9 and 10

1шт.

9

A60210

BUSHING

- top (2-1/2 x 2-11/16 x 1-23/64")

1шт.

10

A60211

BUSHING

- bottom (3-1/4 x 3-7/16 x 1-5/32")

1шт.

14

A64908

PISTON

- steering actuator (Replaced A59285), Start Serial: 8703844

2шт.

15

A59285

PISTON

- steering actuator (Order A64908), Serial Range: -8703844

2шт.

16

A60212

O-RING

"O" RING - piston (1-15/16 x 2-1/8 x 3/32")

4шт.

Part of seal kit P/N A42399

1шт.

17

A60213

RING

seal, piston

4шт.

Part of seal kit P/N A42399

1шт.

18

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - (2-7/8 x 3-1/8 x 1/8")

4шт.

Part of seal kit P/N A42399

1шт.

19

A59533

COVER

- end

4шт.

20

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- (3/8 x 1-3/8" N.C. hex.)

16шт.

21

92-6

LOCK WASHER,3/8"

16шт.

22

A60217

SEAT

- ball

2шт.

23

211-21

BALL

- steel (1" diameter)

1шт.

24

A34849

SHIM,.0105" Thk

1шт.

24

A34390

SHIM,.0329" Thk

1шт.

24

A34391

SHIM,.0149" Thk

1шт.

25

A57658

OIL SEAL

- oil (3-1/4 x 4-1/4 x 3/8")

1шт.

Part of seal kit P/N A42399

1шт.

26

A60214

SPINDLE - upper

1шт.

On tractors with adjustable axles only A64507 spindle can replace A60214 spindle and A59652 center strg. arm (See Fig. 154).

1шт.

A42399

SEAL

KIT - seal, Includes: Ref. 4, 16, 17, 18 and 25 (Not Illust.)

1шт.

31

A60207

VALVE

ASSY. - steering, Includes: Ref. 32 - 45, A60207

1шт.

32

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - (3/8" N.C. hex.) (w/captive washer), A60207 steering valve

4шт.

33

F19624

CAP

- valve end, A60207 steering

2шт.

34

F19623

SCREW,3/8" - 24 x 15/16"

- centering, valve, A60207 steering

1шт.

35

F19619

WASHER

- centering, valve, A60207 steering

2шт.

36

A42201

SPRING

- centering, valve, A60207 steering

1шт.

37

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A60207), A60207 steering

1шт.

38

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - (1-1/4 x 1-29/64 x 7/64"), A60207 steering valve

2шт.

39

NSS

NOT SOLD SEPARAT

BODY - valve (Order A60207), A60207 steering

1шт.

40

F83122

PLUG

ASSY. - bleed, valve body, Includes: Ref. 41, A60207 steering

1шт.

41

F19628

O-RING

"O" RING - (13/32 x 9/16 x 5/64"), A60207 steering valve

1шт.

42

F82943

VALVE

KIT - plug, Includes: Ref. 43 - 45, A60207 steering valve

1шт.

43

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , A60207 steering valve 1/8" x 15/16", Slotted

1шт.

44

211-7

BALL,1/4" Dia

- steel, A60207 steering valve 1/4" Dia

1шт.

45

F19630

O-RING

"O" RING - sealing (5/16 x 7/16 x 1/16"), A60207 steering valve

1шт.

Выбрано товаров: 47
