Запчасти Case IH 770 (147A) - A64500 STEERING PUMP, 1ST USED TRACTOR S/N 8693001 (05) - STEERING

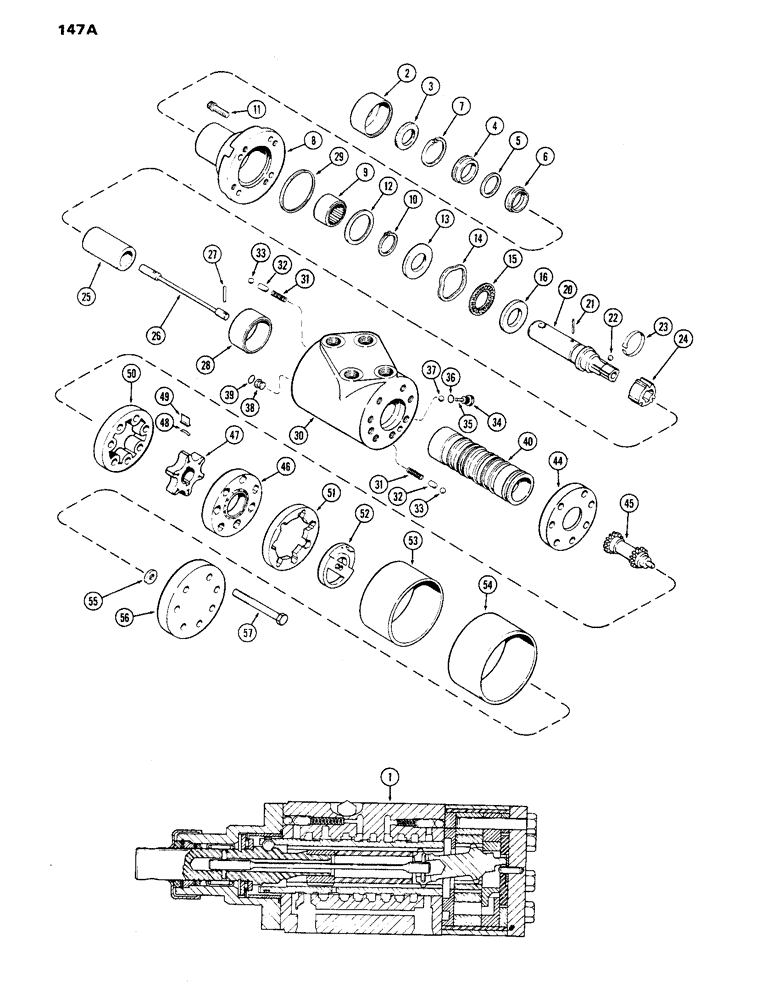

Схема запчастей Case IH 770 - (147A) - A64500 STEERING PUMP, 1ST USED TRACTOR S/N 8693001 (05) - STEERING
26
13
40
51
47
5
24
33
57
52
39
27
4
49
23
14
9
30
12
15
34
20
28
48
33
54
55
56
11
44
38
10
16
21
6
1
37
8
25
7
2
31
35
3
36
22
31
46
50
45
29
53
32
32

Артикул

Название

Примечание

Количество

1

A64500

PUMP

ASSY. - hydrostatic steering, Includes: Ref. 2 - 57

1шт.

2

A42057

SEAL

SHIELD - shaft seal

1шт.

A40624

SEAL

KIT - seal, drive shaft, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - felt

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - spacer

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - back-up

1шт.

6

NSS

NOT SOLD SEPARAT

PACKING - shaft

1шт.

7

A21145

SNAP RING,1.25, Int, #125

RING - snap, 1.25", Int, #125, seal washer

1шт.

8

A43562

ASSY. - upper, Includes: Ref. 9

1шт.

9

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle

1шт.

10

A43720

RING

- snap, bearing retainer

1шт.

11

A43567

BOLT

- upper cover

4шт.

A44435

SHIM

KIT - needle bearing cover (Replaced A43557), Includes: Ref. 12

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - (.03")

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - (.002")

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - (.005")

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - (.010")

1шт.

13

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust, bearing

1шт.

14

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - spring

1шт.

15

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust, end cover bearing

1шт.

16

F19634

BEARING WASHER

WASHER - thrust bearing

1шт.

20

A43551

SHAFT

- input

1шт.

21

D53297

PIN

- torsion, Serial Range: bar-shaft

1шт.

22

211-9

BALL,5/16" Dia

- . 5/16" Dia

1шт.

23

A43560

SPRING

RETAINER - ball

1шт.

24

A43554

RING

- drive

1шт.

25

A43719

SPACER

- drive link (1-27/32" long)

1шт.

26

A43718

BAR

T-BAR ASSY. - torsion (red tip), Includes: Ref. 27

1шт.

27

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

28

A43728

SPACER

- shaft pre-load spring

1шт.

29

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

32

NSS

NOT SOLD SEPARAT

ROLLER - check spring

2шт.

33

211-8

BALL,9/32" Dia

3шт.

F82943

VALVE

KIT - relief plug, Includes: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG - relief

1шт.

35

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

36

F19630

O-RING

"O" RING - plug (5/16 x 7/16 x 1/16")

1шт.

37

211-7

BALL,1/4" Dia

1шт.

38

A43565

PLUG

- port, body

1шт.

39

A43729

O-RING

"O" RING - plug

1шт.

40

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

44

A43569

BUSHING

PLATE - spacer

1шт.

45

A43568

LINK

- drive

1шт.

A43722

ROTOR

SET, Includes: Ref. 46 - 49

1шт.

46

NSS

NOT SOLD SEPARAT

STATOR

1шт.

47

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

48

A42219

SPRING

SRPING - vane

6шт.

49

NSS

NOT SOLD SEPARAT

VANE - pump

6шт.

50

A43573

MANIFOLD

- pump

1шт.

A43574

COMMUTATOR

ASSY., Includes: Ref. 51 and 52

1шт.

51

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

52

NSS

NOT SOLD SEPARAT

COMMUTATOR

1шт.

53

A43725

SEAL

- rotor

1шт.

54

A43726

RETAINER

- rotor seal

1шт.

55

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drive link

1шт.

56

A43580

COVER

- end, rotor

1шт.

57

A43727

BOLT

- end cover

7шт.

Выбрано товаров: 59
