Запчасти Case IH 770 (114) - HYDROSTATIC STEERING SYSTEM, WITH POWER BRAKES, POWER SHIFT, 1ST USED TRAC. SER. NO. 8675001 (05) - STEERING

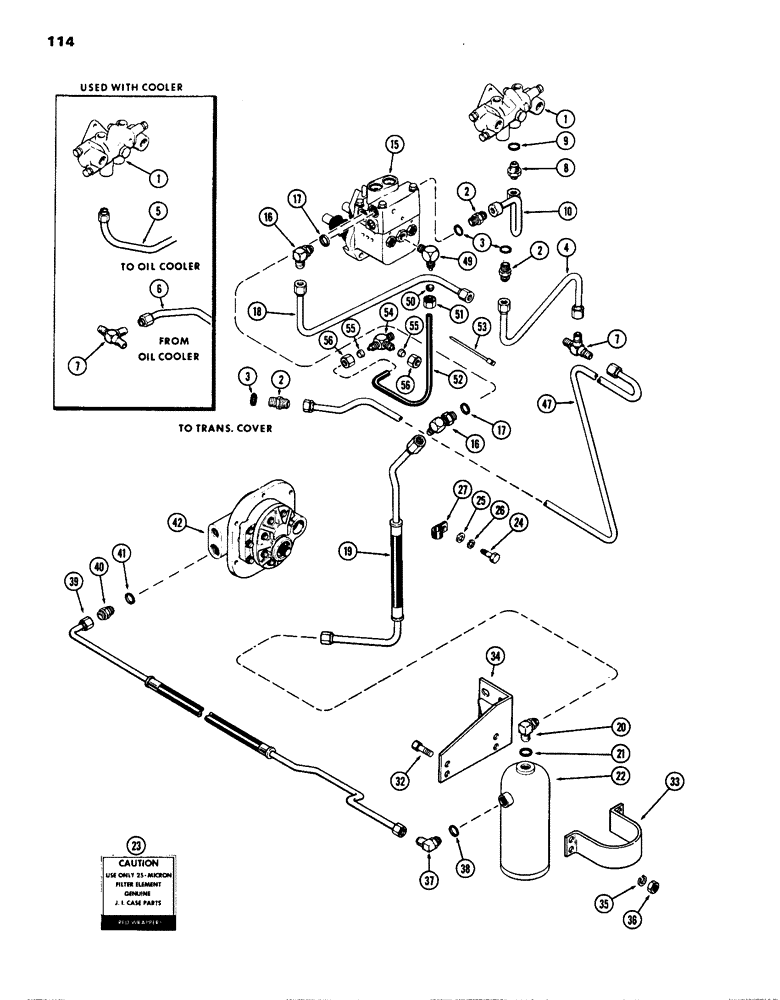

Схема запчастей Case IH 770 - (114) - HYDROSTATIC STEERING SYSTEM, WITH POWER BRAKES, POWER SHIFT, 1ST USED TRAC. SER. NO. 8675001 (05) - STEERING
36
16
27
17
34
26
32
1
54
23
55
10
7
6
2
18
7
38
16
35
2
39
8
20
17
50
3
56
47
22
9
53
52
1
15
41
51
3
42
4
33
55
49
56
2
5
25
40
21
19
37
24

Артикул

Название

Примечание

Количество

1

A60207

VALVE

ASSY. - steering (See Figure 122)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - 3/4" P.T., 1/2" tube (Incl. Ref 3)

3шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

4

A59928

TUBE - return, steering valve to tee (Used w/o cooler)

1шт.

5

A60400

TUBE - upper, cooler to steering valve (Used w/cooler)

1шт.

6

A60401

TUBE - lower, cooler to tee (Used w/cooler)

1шт.

7

218-594

TEE,3/4"-16, 37 Degree

- junction

1шт.

8

A36663

CONNECTOR, ELEC

CONNECTOR ASSY. - steering valve pressure inlet (includes ref. 9)

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

A59918

TUBE

- pressure, power brake valve to steering valve

1шт.

15

A62074

VALVE

ASSY. - power brake (See Figures 192 & 194) (Replaces A61900 & A60640)

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable (includes ref. 17) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

18

A59919

TUBE - hydraulic return, power brake valve to tee (includes ref. 21)

1шт.

19

A62369

TUBE

- pressure, filter to power brake valve (includes ref. 21)

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 13/64 x 3/32"

1шт.

22

G32017

FILTER

ASSY. - oil, steering & brake system (See Figure 118)

1шт.

23

321-1763

DECAL

- "Warning", oil filter (Red wrapper)

1шт.

24

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

25

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

NLS

NO LONGER SERVICED

- oil filter, Serial Range: tubes-firewall

1шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

33

A65004

CLAMP - hyd. oil filter to bracket (Replaces A60857)

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

34

A61781

BRACKET

- mounting, hyd. oil filter

1шт.

35

92-6

LOCK WASHER,3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable (includes ref. 38) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

39

A62371

TUBE ASSY.

TUBE - hydraulic pump to hydraulic oil filter

1шт.

40

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy, 7/8" P.T., 1/2" tube (Incl. Ref 41) 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

41

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

47

A59923

TUBE - tee junction to transmission cover

1шт.

42

A58299

PUMP, HYDRAULIC

PUMP ASSY. - hydraulic dual (See Figure 240)

1шт.

50

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

49

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY. - 1/4" P.T., 3/8" tube (includes ref. 50 & 51)

1шт.

51

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

53

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - brake valve to trans. tube

1шт.

52

A60770

TUBE

- brake valve pressure relief (to trans. cover) (Nylon)

1шт.

55

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

2шт.

54

222-5120

TEE,7/16"-24 x 1/4" NPT Run

ASSY. - reducing, 1/4" P.T., 3/8" tube (includes ref. 55 & 56)

1шт.

56

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

2шт.

Выбрано товаров: 44
