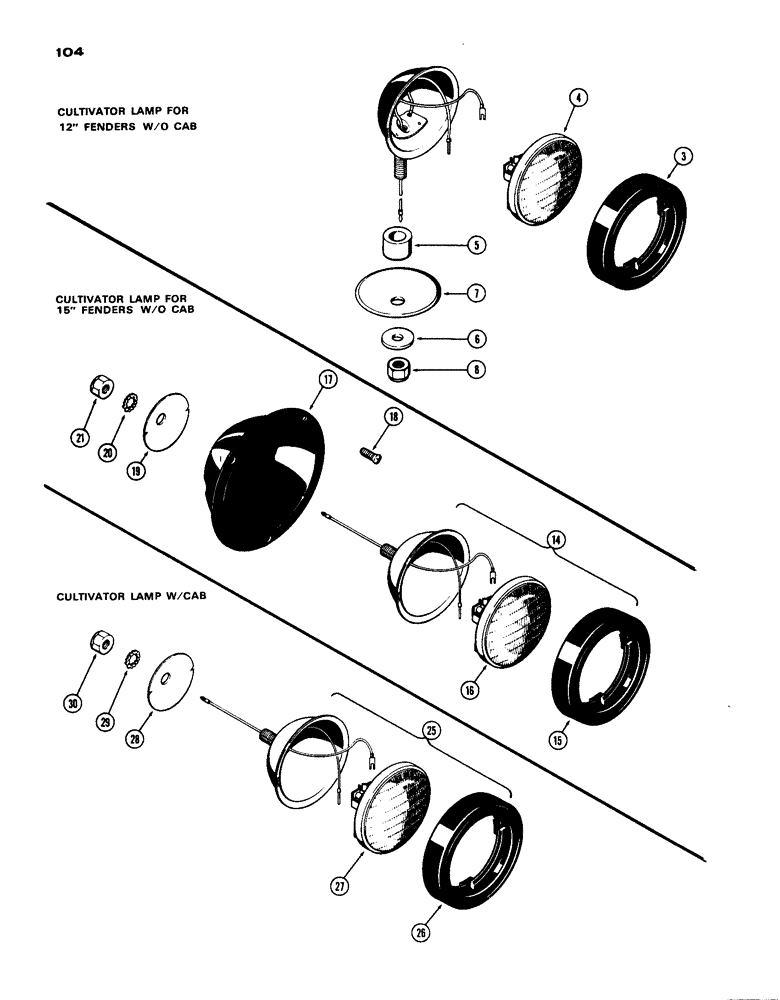

Запчасти Case IH 770 (104) - LIGHTING EQUIPMENT, CULTIVATING LAMP, W/O CAB, FOR 12" FENDER (04) - ELECTRICAL SYSTEMS

A60510

LAMP

ATTACHMENT - lamp (Mach. Item) (includes ref. 3 - 8)

1шт.

A59724

HEADLAMP

LAMP - front cultivator (includes ref. 3 - 5)

2шт.

3

A25213

RETAINER

- sealed beam

1шт.

4

A42294

SEALED BEAM UNIT

BULB - sealed beam

1шт.

5

D37048

BUSHING

- lamp pivot

1шт.

6

D37049

WASHER

- front cultivator mounting

2шт.

7

A59725

SPACER

BRACE - front cultivator

2шт.

8

129-125

NUT,1/2"-20, G5

2шт.

A60511

LAMP

ATTACHMENT - lamp (Mach. Item), for 15" fender w/o cab (includes ref. 14 - 21)

1шт.

14

A59723

LAMP

- front cultivator, for 15" fender w/o cab (includes ref. 15 & 16)

2шт.

15

A25213

RETAINER

- sealed beam, for 15" fender w/o cab

1шт.

16

A42294

SEALED BEAM UNIT

BULB - sealed beam, for 15" fender w/o cab

1шт.

17

A59698

BEZEL

- cultivator lamp mtg., R.H., for 15" fender w/o cab

1шт.

17

A59699

BEZEL

- cultivator lamp mtg., L.H., for 15" fender w/o cab

1шт.

18

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" oval hd., self-tapping, for 15" fender w/o cab

6шт.

19

A59702

RETAINER

- front cultivator lamp, for 15" fender w/o cab

2шт.

20

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , for 15" fender w/o Cab Ext-Int Tooth, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

For 15" fender w/o Cab 1/2"-13, G5

2шт.

A61753

ATTACHMENT

- lamp (Mach. Item), w/cab (includes ref. 25 -30)

1шт.

25

A59723

LAMP

- front cultivator, w/cab (includes ref. 26 & 27)

2шт.

26

A25213

RETAINER

- sealed beam, w/cab

1шт.

27

A42294

SEALED BEAM UNIT

BULB - sealed beam, w/cab

1шт.

28

A59702

RETAINER

- front cultivator lamp, w/cab

2шт.

29

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"

2шт.

30

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.
