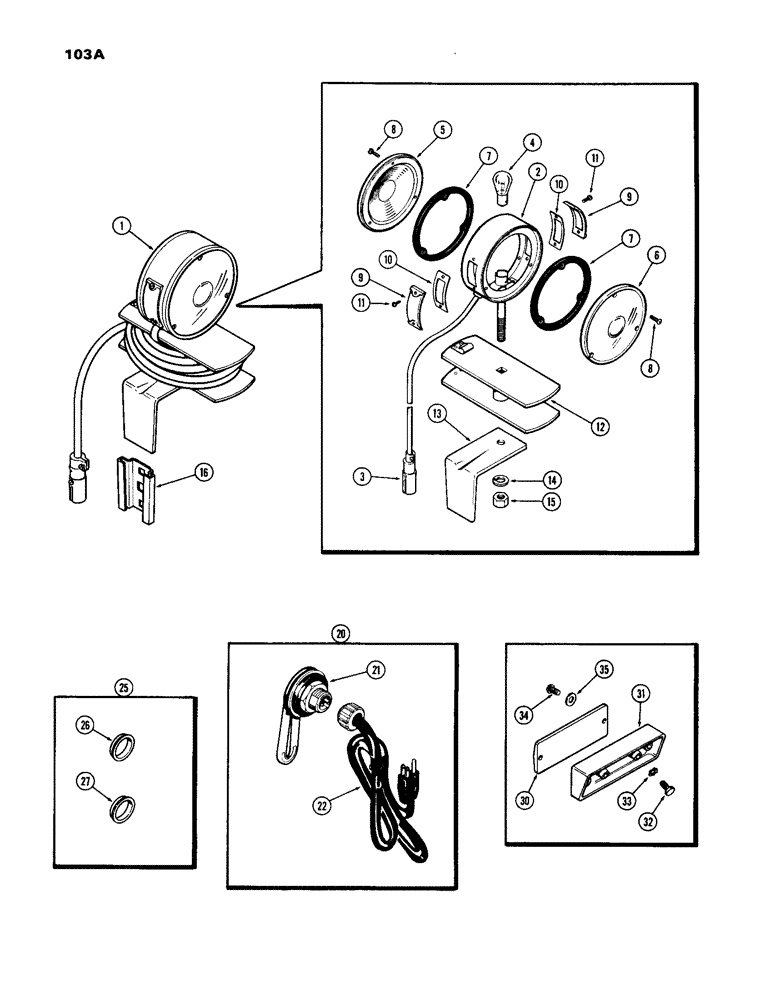

Запчасти Case IH 770 (103A) - FLASHER WARNING LAMP (04) - ELECTRICAL SYSTEMS

A11066M

LAMP ATTACHMENT - warning (includes ref. 2 - 17)

1шт.

2

NS

NOT SERVICED

LAMP ASSY. - (Order A11066M) (includes ref. 3 - 16)

1шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSY. - w/cord (Order A11066M)

1шт.

4

B50259

PLUG

- (to auxiliary socket)

1шт.

5

33686

BULB

- lamp (21 C.P.)

1шт.

6

B50337

LENS

- lamp (amber)

1шт.

7

B53962

LENS

- lamp (red)

1шт.

8

B50317

GASKET - lens

2шт.

9

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens, #6 x 1/2" N.C., rd. hd.

6шт.

10

B50328

LENS - lamp, side (clear)

2шт.

11

B50329

GASKET - side lens

2шт.

12

182-43

SCREW - side lens, #6 x 5/16" N.C., rd. hd.

4шт.

13

B50330

SPOOL - lamp cord reel

1шт.

14

B50331

BRACKET - lamp mounting

1шт.

15

92-7

LOCK WASHER,7/16"

1шт.

16

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

1шт.

17

A8179

SOCKET

- lamp positioning

1шт.

20

A42279

HEATER

ASSY. - cylinder block water (includes ref. 21 & 22)

1шт.

21

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - heater retaining, cyl block

1шт.

22

A42297

LAMP

CORD - electric, w/plugs, cyl block heater

1шт.

25

A44006

SLEEVE

KIT - sleeve, cylinder block heater (includes ref. 26 & 27)

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - heater, 2-3/16" O.D., cyl block

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - heater, 2-1/4" O.D., cyl block

1шт.

30

A62415

REFLECTOR

- red

2шт.

31

A62416

BRACKET

- reflector

2шт.

32

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" rd. hd. self-tapping, reflectors

4шт.

33

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", reflectors

4шт.

34

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" hex, self-tapping, reflectors

4шт.

35

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext., reflectors

4шт.
