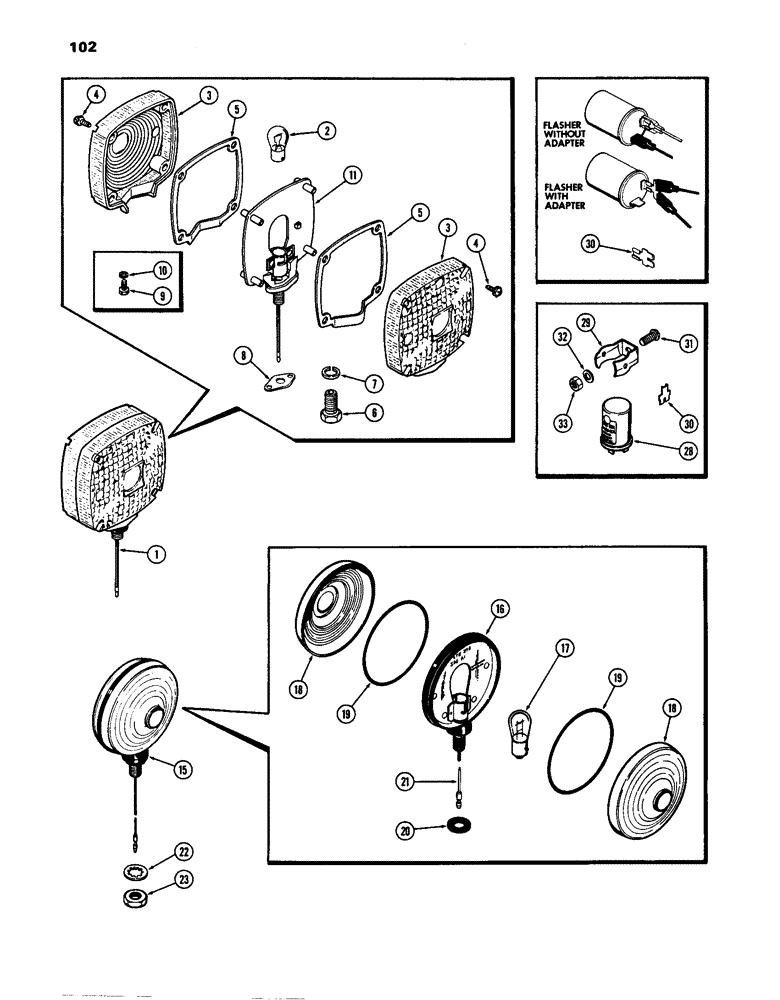

Запчасти Case IH 770 (102) - ELECTRICAL ATTACHING PARTS, FLASHER ATTACHMENT (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A44201
LIGHT ASSY.
KIT - replacement, flasher lamp (1st used trac. ser. no. 8693001) (Replaced A43730 kit) (includes ref. 1 - 11)
2шт.
1
NSS
NOT SOLD SEPARAT
LAMP ASSY. - flasher, double face-square (Replaced A64587 & F89713) (Order A44201)
1шт.
2
A41264
BULB,#1156, 12V
Lamp #1156, 12V
1шт.
A44202
KIT
- lens replacement (includes ref. 3 & 4)
1шт.
3
NSS
NOT SOLD SEPARAT
LENS - long boss (amber) (Replaced F63434) (Order A44202)
2шт.
4
187-1083
SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"
SCREW - lens (#8-32 x 5/8" Phillips)
8шт.
5
A43731
GASKET
- sealing, lamp lens
2шт.
6
NSS
NOT SOLD SEPARAT
STUD - mounting (used w/o cab)
1шт.
7
192-23
LOCK WASHER,1/2"
WASHER, LOCK, , Used w/o cab 1/2"
1шт.
8
F63435
GASKET
- lamp base
1шт.
9
113-39
BOLT,Hex, 1/4" - 20 x 1/2", Gr 2
- 1/4 x 1/2" N.C. hex (used w/cab)
2шт.
10
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, (used w/Cab) 1/4"
2шт.
11
NSS
NOT SOLD SEPARAT
BODY - lamp (Order A44201)
1шт.
15
A34853
LAMP
ASSY. - flasher (includes ref. 16 - 21), Serial Range: -8693001
2шт.
16
NSS
NOT SOLD SEPARAT
BODY - lamp (Order A34853)
1шт.
17
A41264
BULB,#1156, 12V
Lamp #1156, 12V
1шт.
18
A41261
LENS
- lamp
2шт.
19
NLS
NO LONGER SERVICED
"O" RING - lamp
2шт.
20
A41263
GASKET - lamp
1шт.
21
A41260
WIRE - lamp
1шт.
22
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, Ext-Int Tooth, 1/2"
1шт.
23
129-125
NUT,1/2"-20, G5
1шт.
28
A65550
FLASHER UNIT
FLASHER - 12 volt w/sealing gasket (Replaces A34867)
1шт.
29
A34869
BRACKET
- flasher element mounting
1шт.
30
A34862
KIT
- adapter, flasher by-pass (required for steady light) (See Inset)
1шт.
31
173-217
SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"
- 5/16 x 3/4" N.C. rd. hd. mach.
1шт.
32
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
33
9635082
NUT,5/16" - 18, Gr 5
1шт.
Выбрано товаров: 28
