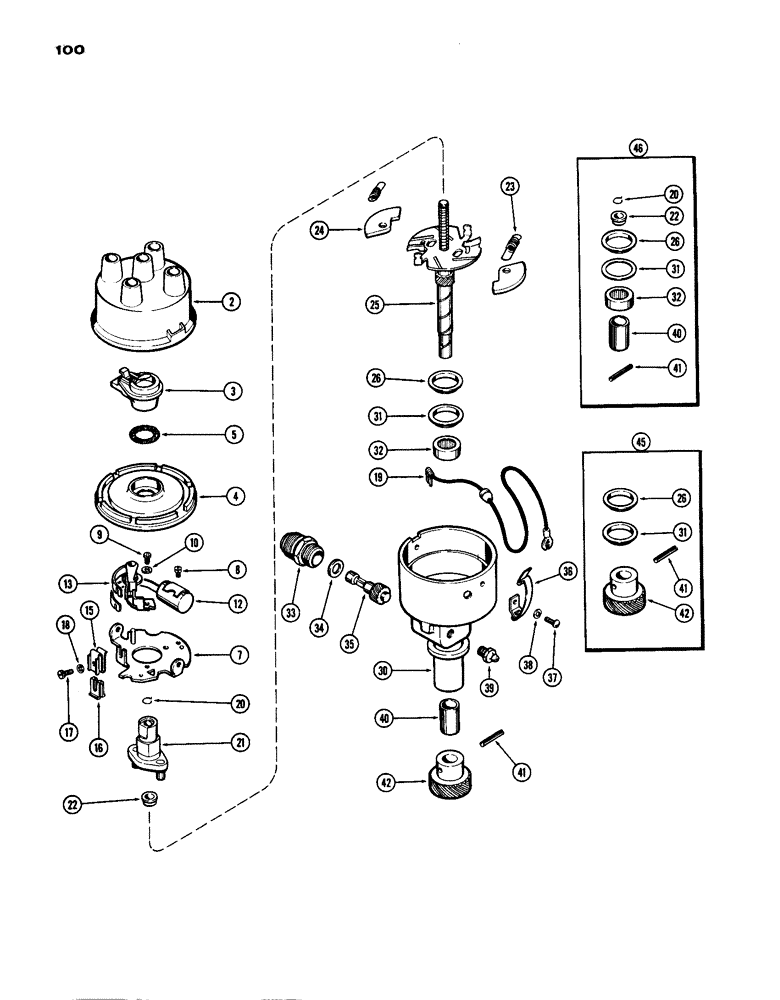

Запчасти Case IH 770 (100) - DISTRIBUTOR, (251B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A58810

DISTRIBUTOR ASSY. - (Prestolite #IBT-4402A) (includes ref. 2 - 46)

1шт.

2

A24564

CAP

- distributor

1шт.

3

A24566

ROTOR

- distributor

1шт.

4

A24763

PLATE

ASSY. - seal (includes ref. 5)

1шт.

5

A24764

WASHER

SEAL - dust (felt)

1шт.

A40330

PLATE

ASSY. - breaker (includes ref. 1 - 18)

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - breaker

1шт.

8

169-56

SCREW - condenser, #6-32 x 3/16" fill. hd.

1шт.

9

A24776

SCREW,Locking, #8 - 32 x 3/16"

- points, #8-32 x 3/16" fill hd.

1шт.

10

195-509

WASHER,3/16"

- 3/16 x 3/8 x 1/16"

1шт.

A40930

KIT

POINT & CONDENSER KIT (includes ref. 12 & 13)

1шт.

12

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40930)

1шт.

13

NSS

NOT SOLD SEPARAT

POINT SET - (Order A40930)

1шт.

15

A24774

CLIP

- retaining, insulator & lead

1шт.

16

A44287

KIT

INSULATOR - clamp & lead (Replaces A24773)

1шт.

17

A24775

SCREW,0.138"-32 x 1/32"

- clip, #6-32 x 5/8" hex

1шт.

18

195-506

WASHER,#6

- 5/32 x 5/16 x 1/32"

1шт.

19

A42179

LEAD - primary wire

1шт.

20

NSS

NOT SOLD SEPARAT

RING - snap, cam retaining (Order ref. 46)

1шт.

21

A42429

PLATE - cam & stop

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - cam (Order ref. 46)

1шт.

23

A24778

SPRING KIT

SPRING SET - weight (Set of 2)

1шт.

24

A41388

WEIGHT SET - governor (Set of 2)

1шт.

25

A24768

DRIVE SHAFT

SHAFT - distributor drive

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - drive shaft-upper (Order ref. 45 or 46)

1шт.

30

NSS

NOT SOLD SEPARAT

BASE - distributor body (Order A58810)

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER - drive shaft, lower (Order ref. 45 or 46)

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. 46)

1шт.

33

A24781

HOUSING ASSY. - tachometer drive, w/bushing

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - thrust, tach. drive (Order ref. 46)

1шт.

35

A24761

SHAFT

- tach. drive, w/gear

1шт.

36

A40329

SPRING

CLAMP ASSY. - distributor cap (includes ref. 37 & 38)

2шт.

37

A24779

SCREW - clamp, #8-32 x 15/16" rd. hd.

1шт.

38

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

1шт.

39

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4"-28 str.

1шт.

40

NSS

NOT SOLD SEPARAT

BEARING - housing (bronze) (Order ref. 46)

1шт.

41

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Gear 1/8" x 15/16", Slotted

1шт.

42

NSS

NOT SOLD SEPARAT

GEAR - drive shaft (Order ref. 45)

1шт.

45

A40332

GEAR

REPAIR KIT - (gear & washers)

1шт.

46

A40331

BEARING

REPAIR KIT - (bearings & washers)

1шт.
