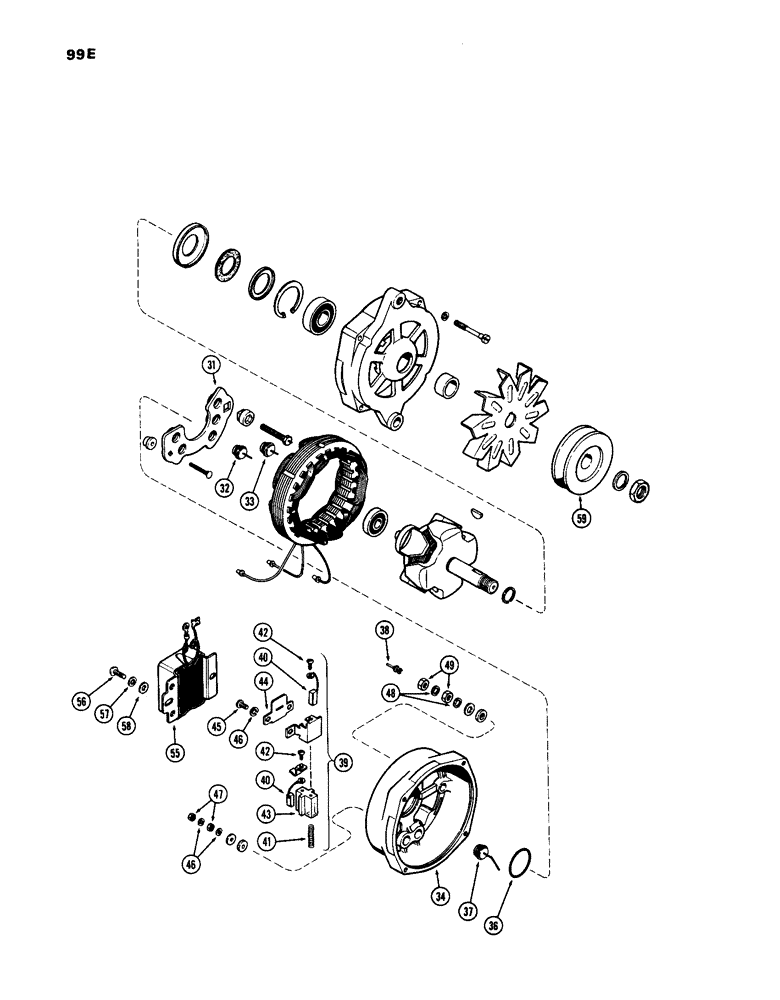

Запчасти Case IH 770 (099E) - A59761 ALTERNATOR, (267B) DIESEL & (251B) SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

A42272

ALTERNATOR ASSY. - (Continued from Figure 99C) (includes ref. 31 - 49) and 1 - 30 on Fig. 99C

1шт.

31

A44349

PLATE ASSY.

HEAT SINK - diode (Replaces A42265) (includes ref. 32 & 33)

1шт.

32

A42773

HEAD (CYLINDER)

DIODE - positive (Replaces A41075)

3шт.

33

A42261

DIODE

KIT - output diode (matched set of 2)

1шт.

34

A42264

HEAD ASSY. - slip ring end (includes ref. 36, 37 & 38)

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - sealing

1шт.

37

A44180

KIT

DIODE - negative (Replaces A41071)

1шт.

38

A42266

KIT

- plugs (Set of 10)

1шт.

39

A43952

HOLDER

ASSY. - brush (Replaces A42495) (includes ref. 40 - 43)

1шт.

40

A41063

BRUSH, COMMUTATOR

KIT - brush, armature (Set of 2)

1шт.

41

A41064

VALVE SPRING

SPRING KIT - brush (Set of 2)

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - machine, brush retainer

2шт.

43

NSS

NOT SOLD SEPARAT

CLIP - brush holder

1шт.

44

A41073

COVER

INSULATION - cover, brush holder

1шт.

45

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - mach. #10-24 x 3/8"

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

- #10 N.F. hex, jam

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

- hex 1/4"-28

2шт.

55

A44543

REGULATOR

ASSY. - voltage (Replaces A42098)

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW - mach., regulator mtg.

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER - plain

2шт.

59

A42267

DRIVE

PULLEY - drive, alternator

1шт.
