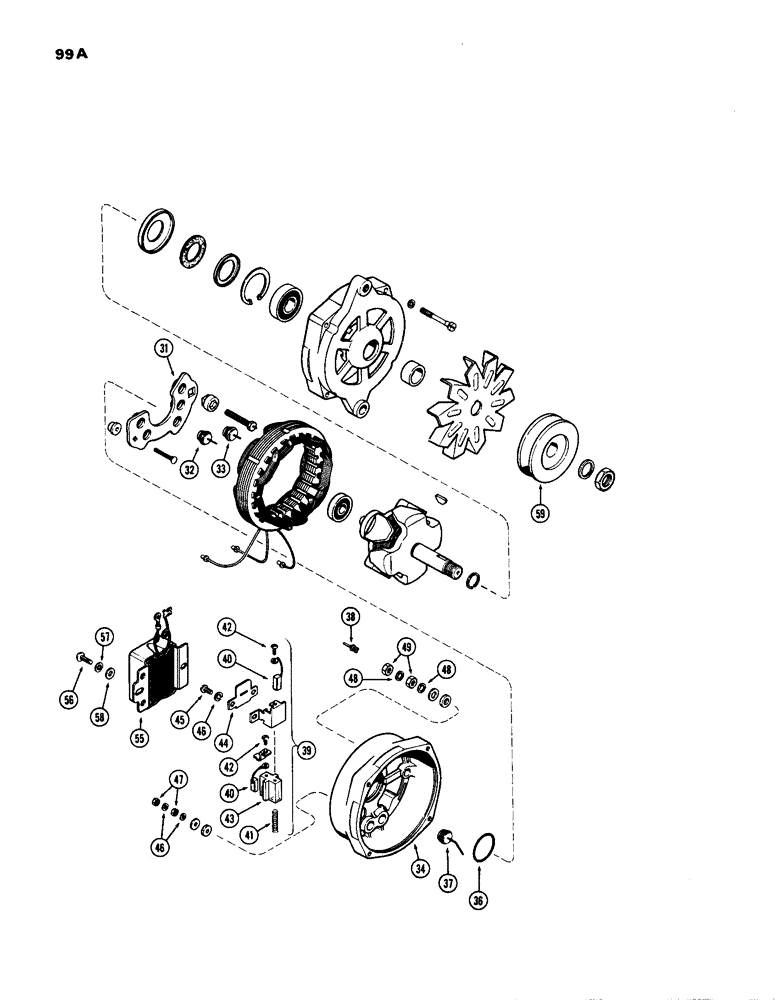

Запчасти Case IH 770 (099A) - A61062 ALTERNATOR, (267B) DIESEL & (251B) SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A42444
ALTERNATOR
ALTERNATOR ASSY. - (Continued from Figure 98) (includes ref. 31 - 49) and 1 - 30 on Fig. 98
1шт.
103801A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 61 AMP Alternator
1шт.
103801A1C
CORE-ALTERNATOR
Return Number, 12 VOLT, 61 AMP Alternator
1шт.
103804A1GV
ALTERNATOR
Value, 12V, 72A
1шт.
103804A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 volt 72 ampere
1шт.
103804A1C
CORE-ALTERNATOR
Return Number
1шт.
31
A44349
PLATE ASSY.
HEAT SINK - diode (Replaces A42265) (includes ref. 32 & 33)
1шт.
32
A42773
HEAD (CYLINDER)
DIODE - positive (Replaces A41075)
3шт.
33
A42261
DIODE
KIT - output diode (Matched set of 2)
1шт.
34
A42442
COVER
HEAD ASSY. - slip ring end (includes ref. 36 - 38)
1шт.
36
A41072
O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro
"O" RING - sealing
1шт.
37
A44180
KIT
DIODE - negative (Replaces A41071)
3шт.
38
A42266
KIT
KIT - plugs (Set of 10)
1шт.
39
A43952
HOLDER
HOLDER ASSY. - brush (Replaces A42495) (includes ref. 40 - 43)
1шт.
40
A41063
BRUSH, COMMUTATOR
BRUSH KIT - brush, armature (Set of 2)
1шт.
41
A41064
VALVE SPRING
SPRING KIT - brush (Set of 2)
1шт.
42
NSS
NOT SOLD SEPARAT
SCREW - mach., brush retainer
2шт.
43
NSS
NOT SOLD SEPARAT
CLIP - brush holder
1шт.
44
A41073
COVER
INSULATION - cover, brush holder
1шт.
45
187-1012
SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"
SCREW - mach., #10-24 x 3/8"
2шт.
46
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
8шт.
47
129-667
NUT,#10-32, LH
NUT - #10 N.F. hex, jam
2шт.
48
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
49
131-902
NUT,1/4"-28
NUT - hex 1/4"-28
2шт.
55
A44543
REGULATOR
REGULATOR ASSY. - voltage (Replaces A42098)
1шт.
56
NSS
NOT SOLD SEPARAT
SCREW - mach., regulator mounting
2шт.
57
NSS
NOT SOLD SEPARAT
WASHER - lock
2шт.
58
NSS
NOT SOLD SEPARAT
WASHER - plain
2шт.
59
A42267
DRIVE
PULLEY - drive, alternator
1шт.
Выбрано товаров: 29
