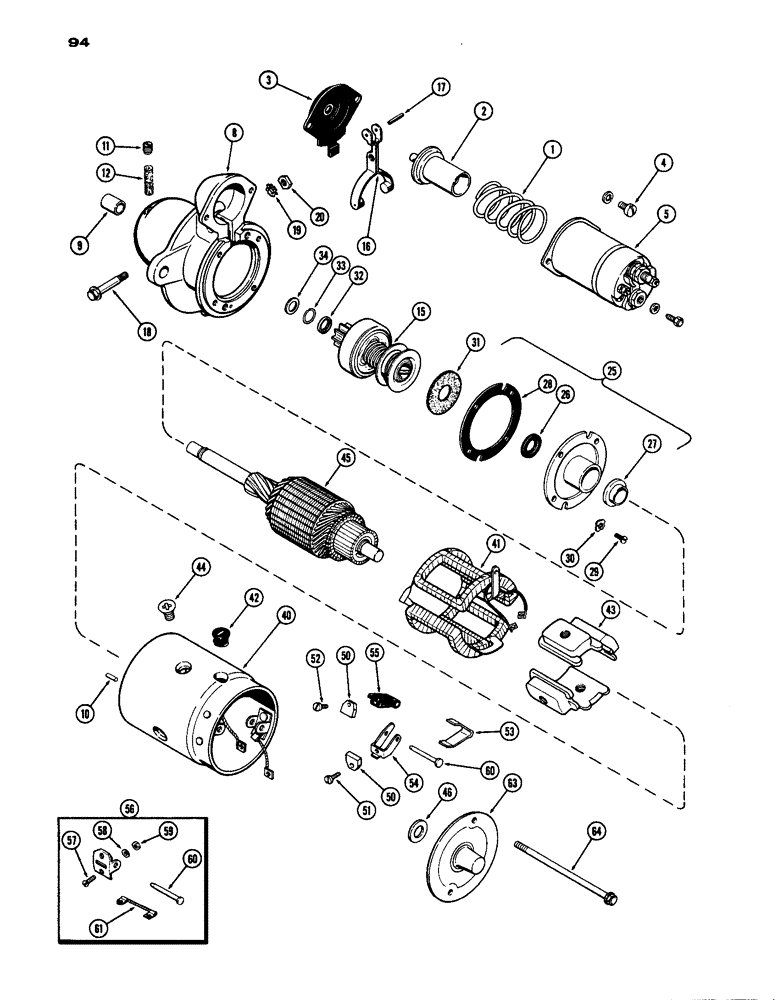

Запчасти Case IH 770 (094) - A59671 STARTER, (251B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

A59671

MOTOR

STARTER ASSY. - (Delco-Remy #1108426) (includes ref. 1 - 64)

1шт.

1

A40221

SPRING

- plunger

1шт.

2

A40218

PLUNGER

- solenoid

1шт.

3

A25410

BOOT

- solenoid

1шт.

4

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

BOLT - solenoid mounting

2шт.

5

G44891

SOLENOID

SWITCH ASSY. - solenoid (See Figure 96)

1шт.

8

A42288

HOUSING ASSY. - drive (includes ref. 9 - 12)

1шт.

9

A25387

BEARING

BUSHING - housing, 15/32 x 5/8 x 13/16"

1шт.

10

R15041

PIN - dowel

1шт.

11

221-1041

PLUG

- oil wick hole

1шт.

12

R15023

WICK

- oil

1шт.

15

A41871

DRIVE

ASSY. - starter

1шт.

16

A40220

LEVER

- shifter

1шт.

17

138-93

LOCK PIN,3/16" x 13/16", Slotted

PIN, , shift lever to plunger 3/16" x 13/16", Slotted

1шт.

18

A40520

BOLT

- lever pivot

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Stud 5/16"

2шт.

20

425-145

JAM NUT,Jam, 5/16"-18, G5

Stud Jam, 5/16"-18, G5

1шт.

25

A40223

PLATE

ASSY. - center bearing (includes ref. 26 - 28)

1шт.

26

A40228

OIL SEAL

SEAL - oil, 3/4 x 1-1/4 x 1/4"

1шт.

27

A41982

BUSHING

- center bearing, 3/4 x 1-1/4 x 13/32"

1шт.

28

A41981

GASKET

- center bearing

1шт.

29

R16175

SCREW - center bearing mounting

4шт.

30

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

31

R15043

WASHER

- center bearing to drive housing

1шт.

32

R15049

COLLAR

- pinion stop

1шт.

33

R15048

RING

- snap, collar retaining

1шт.

34

A25385

WASHER

COLLAR - thrust, pinion stop

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - frame (Order A58671)

1шт.

41

A41345

COIL ASSY.

- field

1шт.

42

A41935

GROMMET

- field terminal

1шт.

43

A40747

SHOE - pole

4шт.

44

A42127

SCREW,3/8" - 24 x 0.20"

- pole shoes

8шт.

45

A41343

ARMATURE

1шт.

46

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- brake, commutator end

1шт.

50

A42289

BRUSH ASSY.

BRUSH - starter

4шт.

51

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- brush attaching, ground

2шт.

52

A42290

SCREW,Tapping, #8 - 18 x 5/8"

- brush attaching, insulated

2шт.

53

A25359

SPRING

- brush

2шт.

54

A40217

HOLDER

- brush, ground

2шт.

55

R15027

HOLDER

- insulated brush

2шт.

56

A25379

KIT

- brush support replacement (includes ref. 57 - 61)

2шт.

57

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- support mounting

4шт.

58

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

59

R15032

X

NUT - support

4шт.

60

R15035

PIN

- support

2шт.

61

A25363

ELECTRICAL WIRE

LEAD - brush ground

2шт.

63

A25302

FUNNEL

FRAME ASSY. - commutator end

1шт.

64

A41342

BOLT

- thru

2шт.
